Motion MCW with MediaWave Computer
– Installation and Assembly Procedure
11
Document No. 002-15-0010
Motion Proprietary & Confidential
Copyright © 2009 Motion Computing, Inc. as an unpublished work
4.3

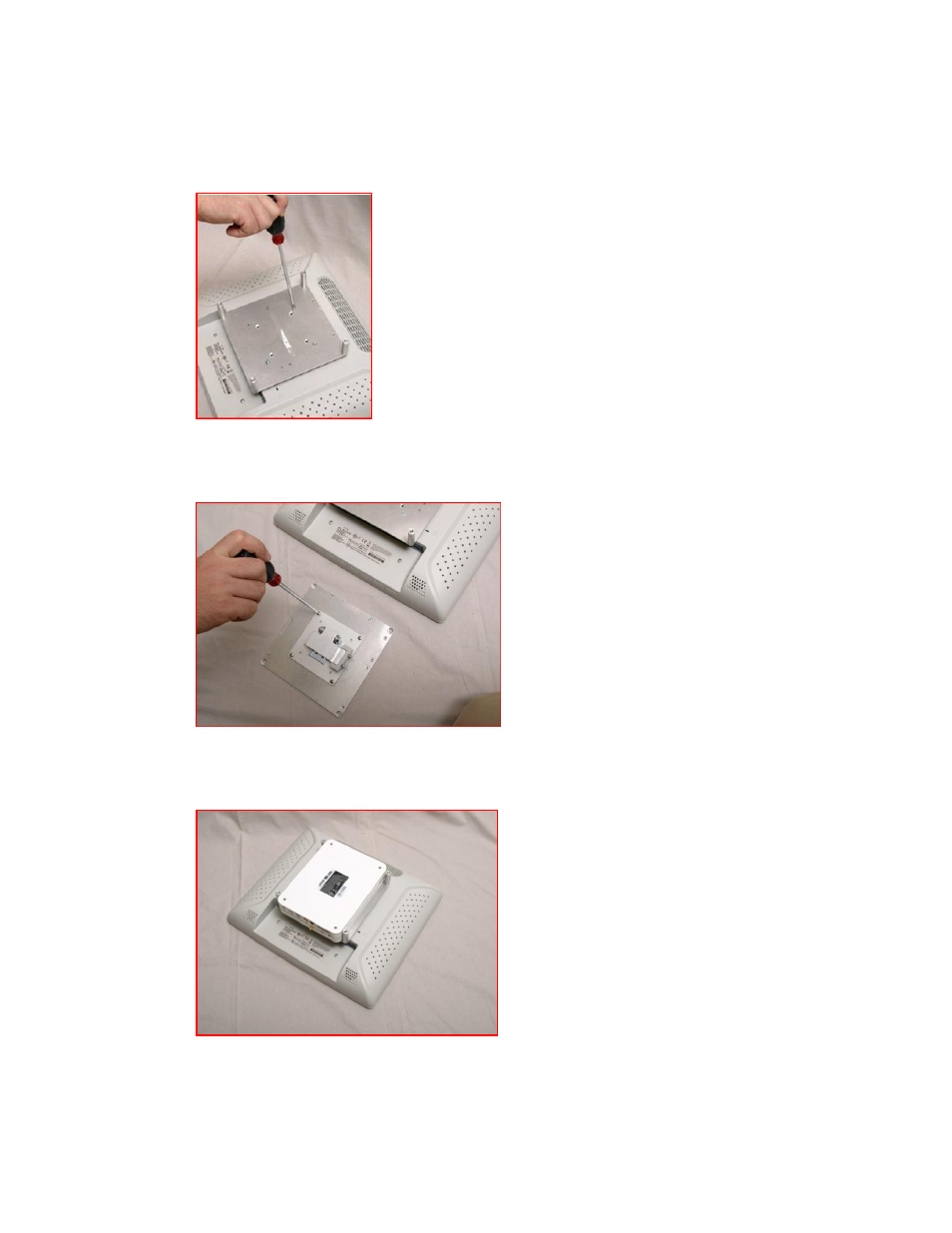

Insert screws through the front CPU VESA Mount plate hole and through
the nylon spacers, threading them into the Monitor VESA Mount plate
threaded inserts
4.4
Attach the Flush Tilting VESA Mount bracket to the back CPU VESA Mount
plate
4.5
Place the Media Wave Computer onto the front CPU VESA Mount plate,
evenly spaced between the metal spacers and connectors facing down
