ENGLISH
27
Chapter 2 Installing the LCD TV
HDMI2 IN HDMI1 IN
AUDIO
L R L R L R
L R
L
R L R L R
AUDIO
PC/VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO DIGITAL
OPTICAL
COAXIAL
HDTV/TV
AIR/CABLE
VHF/UHF IN
Y Pb Pr AUDIO
YPbPr2 IN
Y Pb Pr
AUDIO
Rear of TV

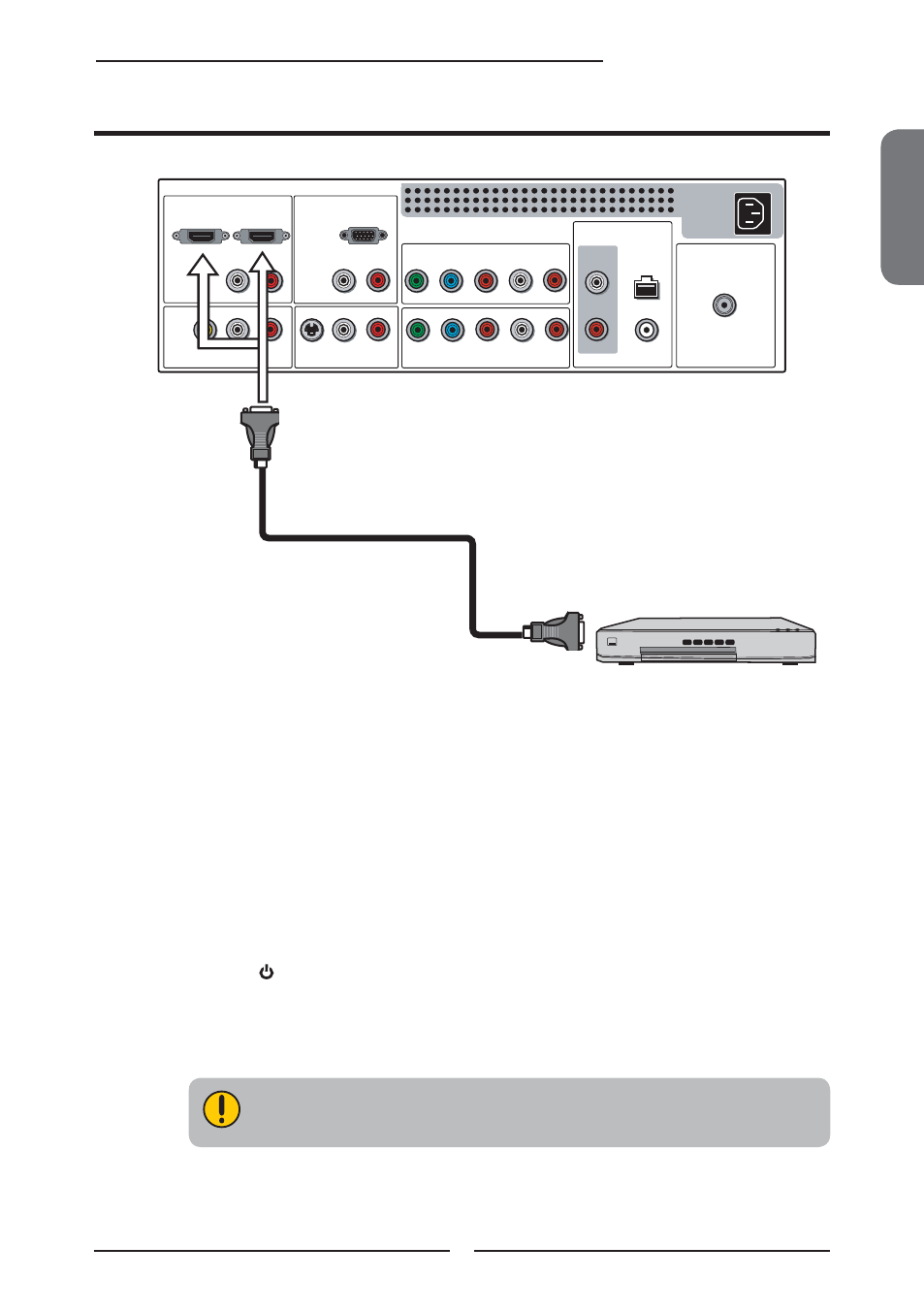

Connecting an AV Equipment with HDMI Connector
AV EQUIPMENT
Rear of TV

Use a HDMI cable to connect the AV equipment’s HDMI output jack to the LCD TV’s HDMI IN
jacks.

Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.

Press the button on the remote to turn on the LCD TV.

Press the
VIDEO 6 or VIDEO7, then press OK button.
INPUT button on the remote, then using the ▲ or ▼ button on the remote to select
The HDMI connector provides both video and audio signals, it’s not
necessary to connect the audio cable.
HDMI Cable
