Connecting a vcr – Memorex MLTD2622 User Manual
Page 24
22
Chapter 2 Installing the LCD TV
METHOD A:
Use a composite cable to connect the VCR’s composite video/audio jacks to the LCD TV’s
VIDEO2 IN jacks.
METHOD B:
Use an audio cable to connect the VCR’s audio output jacks to the LCD TV’s audio
inputs. Use a S-Video cable to connect the VCR’s s-video output jack to the LCD TV’s
S-VIDEO IN input jack.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To watch a videotape, press the INPUT button on the remote , then using the ▲ or ▼
button on the remote to select VIDEO
then press OK button.
2
( METHOD A), or VIDEO3 (METHOD B),

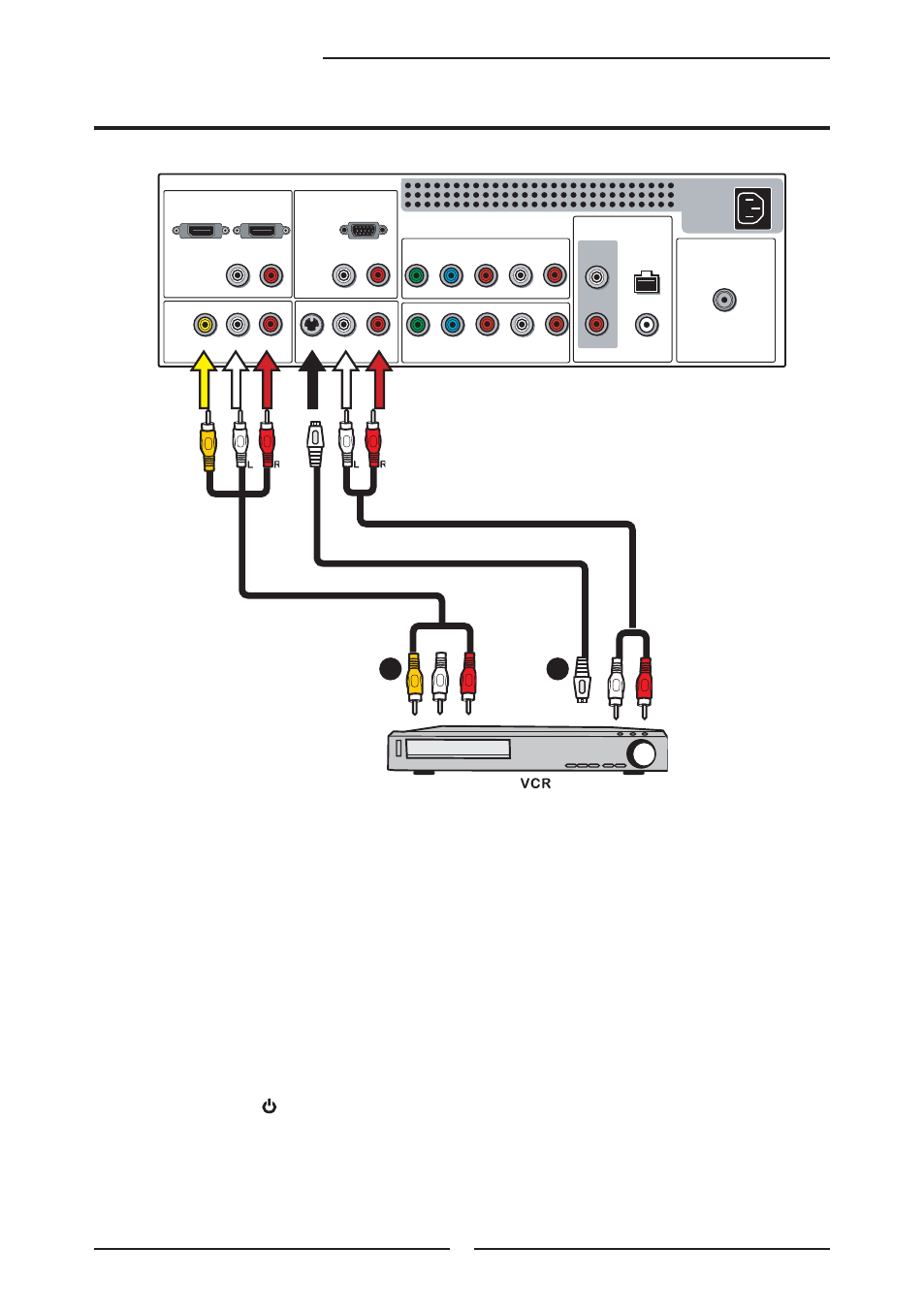

Connecting a VCR
A
B
HDMI2 IN
HDMI1 IN
AUDIO
L
R
L
R
L
R
L
R
L
R
L
R
L
R
AUDIO
PC/VGA IN
VIDEO2 IN
VIDEO
AUDIO
S-VIDEO IN
S-VIDEO
AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
HDTV/TV
AIR/CABLE
VHF/UHF IN
Y
Pb
Pr
AUDIO
YPbPr2 IN
Y
Pb
Pr
AUDIO
Rear of TV
AUDIO Cable
S-VIDEO Cable
AV Cable
