ENGLISH
23
Chapter 2 Installing the LCD TV
L
R
VIDEO1 IN
VIDEO
Right Side
A
B
HDMI2 IN HDMI1 IN
AUDIO
L R L R L R
L R
L
R L R L R
AUDIO
PC/VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO DIGITAL
OPTICAL
COAXIAL
HDTV/TV
AIR/CABLE
VHF/UHF IN
Y Pb Pr AUDIO
YPbPr2 IN
Y Pb Pr
AUDIO
Rear of TV
or
AUDIO Cable
S-VIDEO Cable
AV Cable

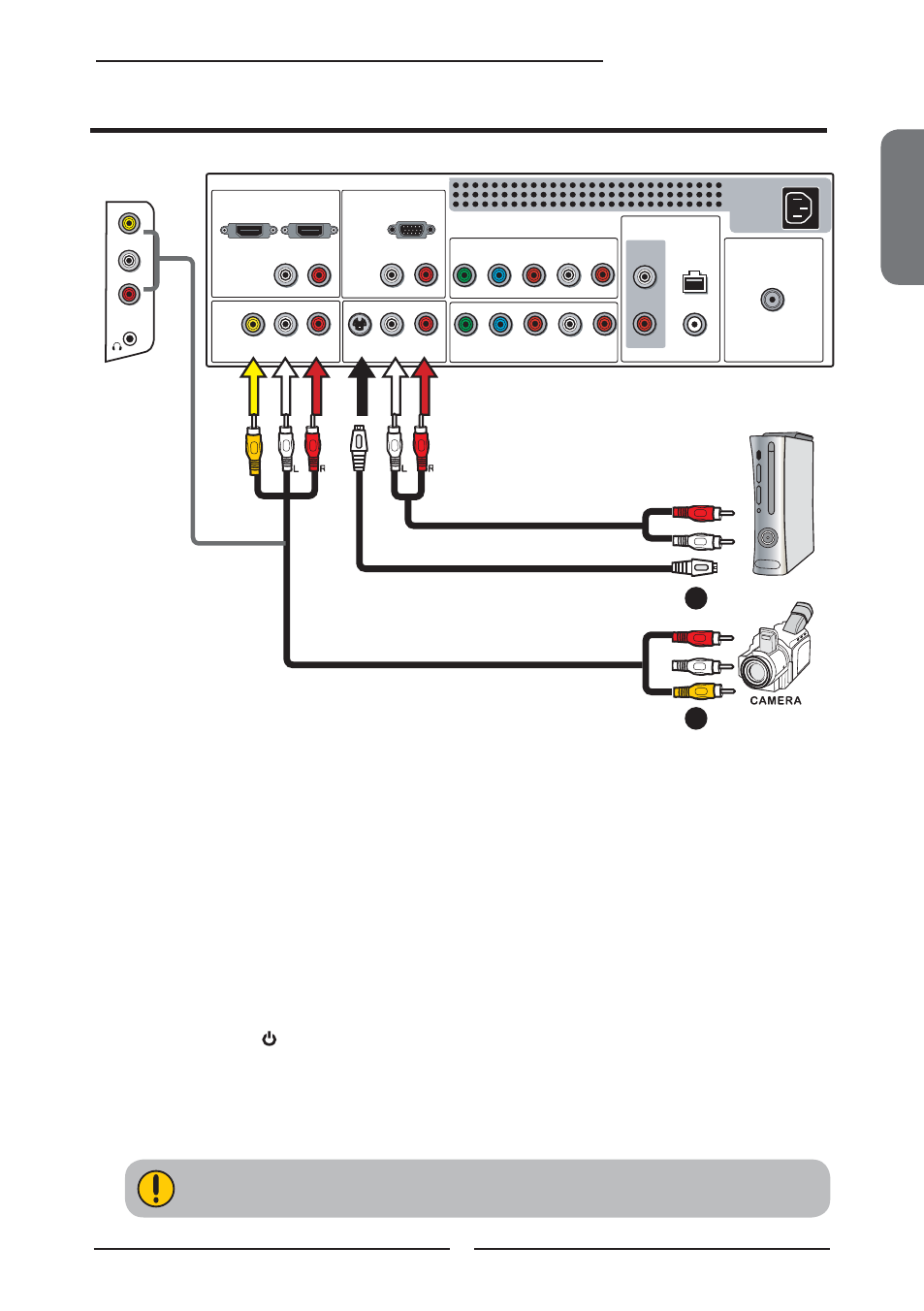

Connecting a Video Camera or Game console
GAME CONSOLE

METHOD A:
Use a composite cable to connect the
video camera’s or game console’s composite
video/audio jacks to the LCD TV’s VIDEO2 IN jacks or VIDEO1 IN jacks.
METHOD B:
Use an audio cable to connect the video camera’s or game console’s audio output
jacks to the LCD TV’s audio inputs. Use an S-Video cable to connect the video
camera’s or game console’s s-video output jack to the LCD TV’s S-VIDEO IN input
jack.

Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.

Press the button on the remote to turn on the LCD TV.

To watch a video vis camera or game console, press the INPUT button on the remote,
then using the ▲ or ▼ button on the remote to select VIDEO2/VIDEO1( METHOD A),
or VIDEO3 (METHOD B), then press OK button.
Not all cameras have the ability to connect to a TV. Please check your video camera
user guide for compatibility.
