RACK MOUNT INSTALLATION

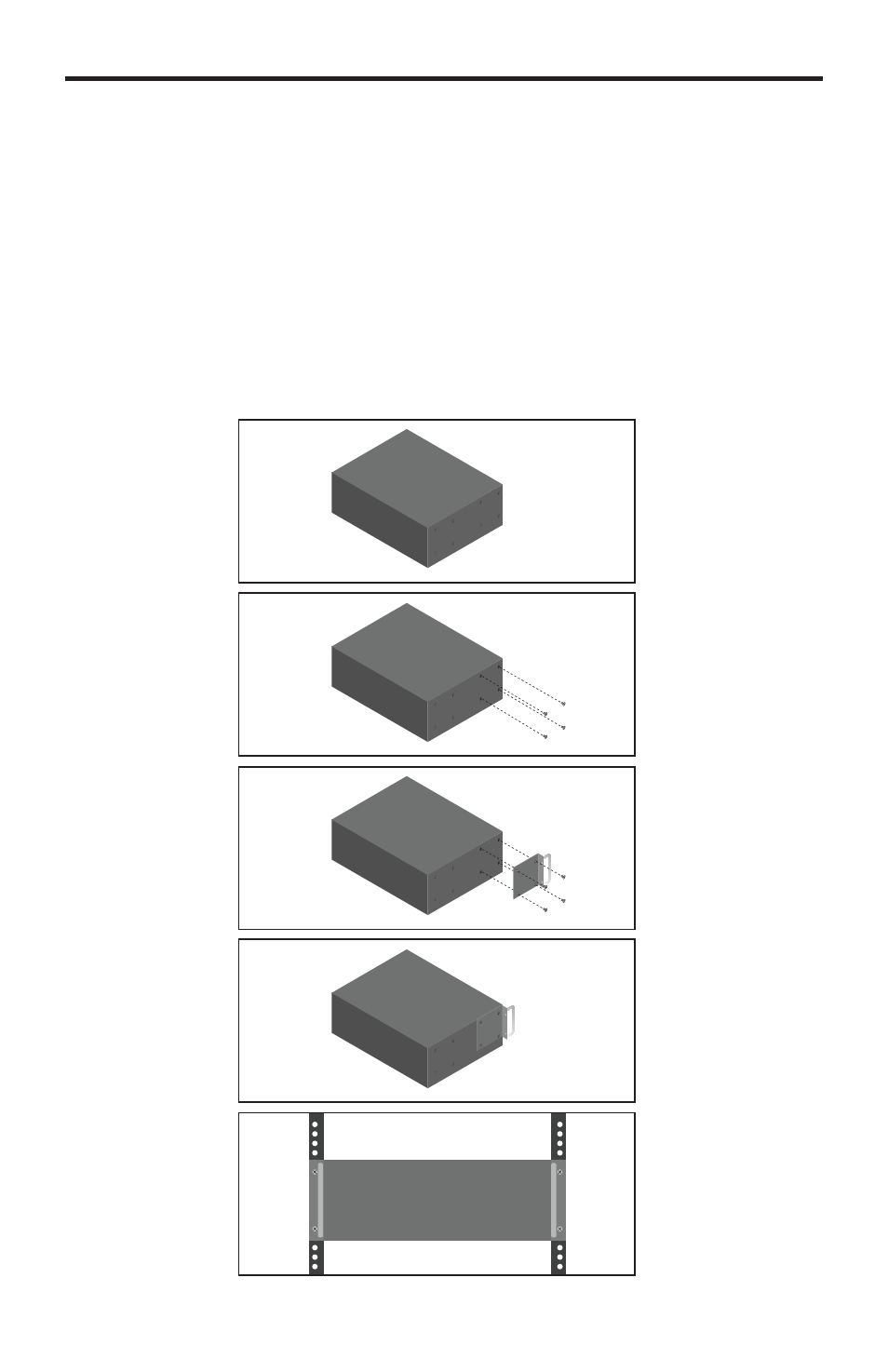

Rack mount ears are provided for installing the Matrix in a 5U rack space. To
mount the Matrix in the rack, do the following:
1. Locate the 4 side screws on each side of the Matrix.
2. Remove these screws (located closest to the front of the Matrix).
3. Using the 4 removed screws, secure each rack ear plate onto the side of the
Matrix with the handle facing the front side of the Matrix.
4. Repeat the procedure on the opposite side of the Matrix.
5. With the front panel facing you, fi rmly grip both rack mounting handles and
insert the Matrix into the rack. Slide the Matrix into the rack, pushing fi rmly
until the Matrix will not travel any further. Secure the Matrix into the rack
using the four supplied rack mounting screws .
1.
2.
3.
4.
5.
