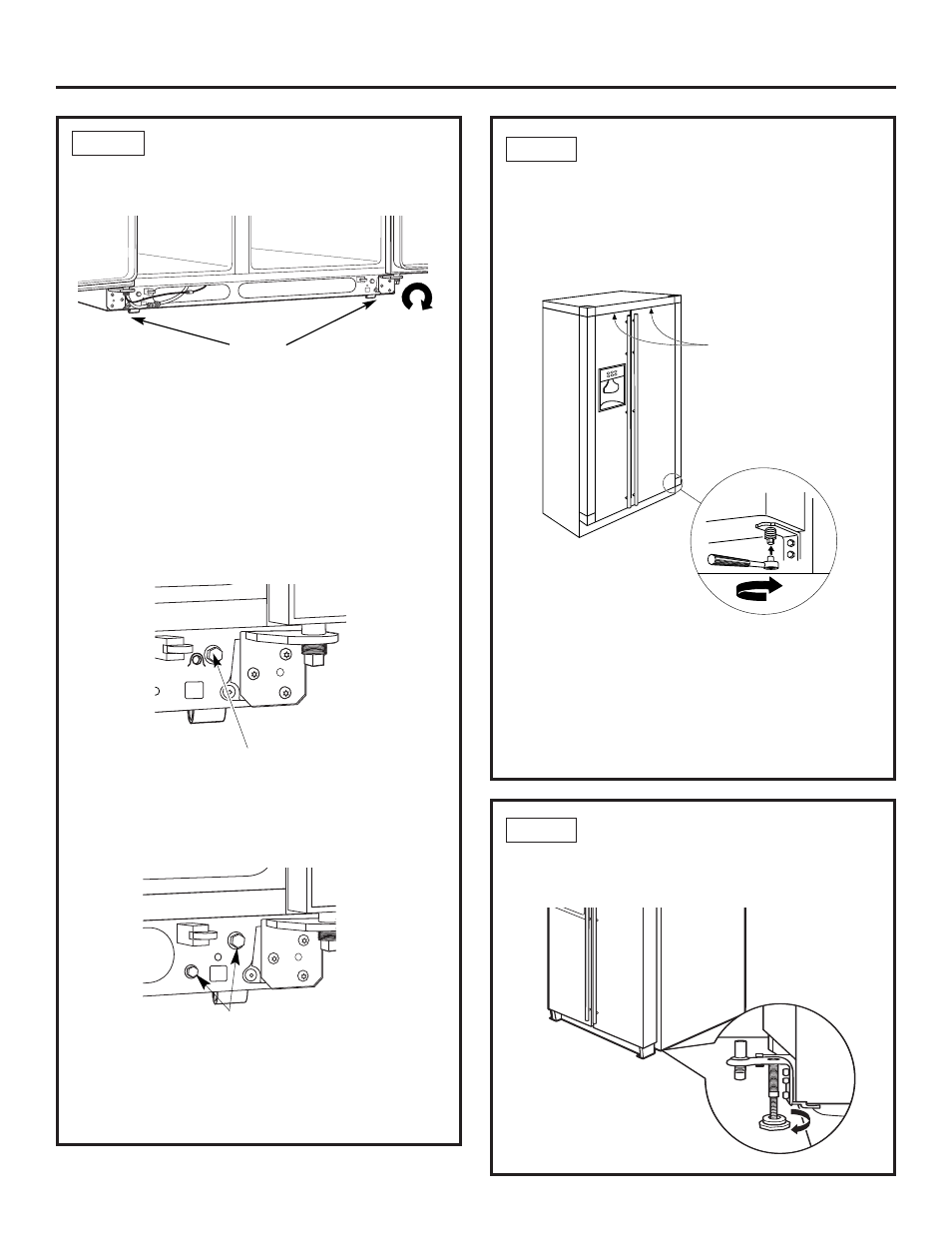

STEP 6 LEVEL THE REFRIGERATOR
The refrigerator can be leveled by adjusting the rollers
located near the bottom hinges.
Rollers have three purposes:
• The rollers adjust so that the door closes easily when
opened about halfway. (Raise the front about 5/8"
[16 mm] from the floor.)
• Rollers adjust to allow the refrigerator to be firmly
positioned on the floor and to prevent rocking
when the doors are opened and closed.
• The rollers allow you to move the refrigerator from the
wall for cleaning.
To Adjust the Rollers:
Rollers
Raise
716Dia7
STEP 7 LEVEL THE DOORS
If the doors are not evenly aligned at the top, the
refrigerator door can be adjusted.
• Use a 7/16" hex socket or wrench to turn the door
adjusting screw. Turn the screw to the right to raise
the door, turn left to lower the door.
NOTE: A nylon plug is imbedded in the threads of
the pin. The plug is designed to prevent the pin from
turning. A wrench must be used to turn the pin.
• Turn the wrench one or two times. Open and close the
refrigerator door to check alignment with the freezer
door at the top. Adjust again if necessary.
• Use a 3/8" hex socket or wrench to turn the
adjustment screws. Turn the screws clockwise to raise
the refrigerator, turn counterclockwise to lower it.
Roller Adjusting Screw
716Dia8
Doors Should
Align at Top
Raise
716Dia4
Installation Instructions
Roller Adjusting Screws
716Dia3
• Use a 5/16" hex socket to turn the screws for the
rear rollers. Turn the screws clockwise to raise the
refrigerator, counterclockwise to lower it.
STEP 8 SCREW DOWN SUPPORT LEG
Screw down the support leg until it touches the floor.
This will prevent door misalignment.
