Installation Instructions
6
STEP 1A MODEL ZFSB23
MOVE REFRIGERATOR INDOORS
IMPORTANT:
Doors and passageways
into the installation location must allow the full depth
of the refrigerator to pass through. ZFSB23 requires
a 31" min. opening. When the opening is less than these
minimum widths, the top cap and doors must be removed.
NOTE: Skip this step if door removal is not required.
See instructions on next page, “To Move The Refrigerator
Indoors.”

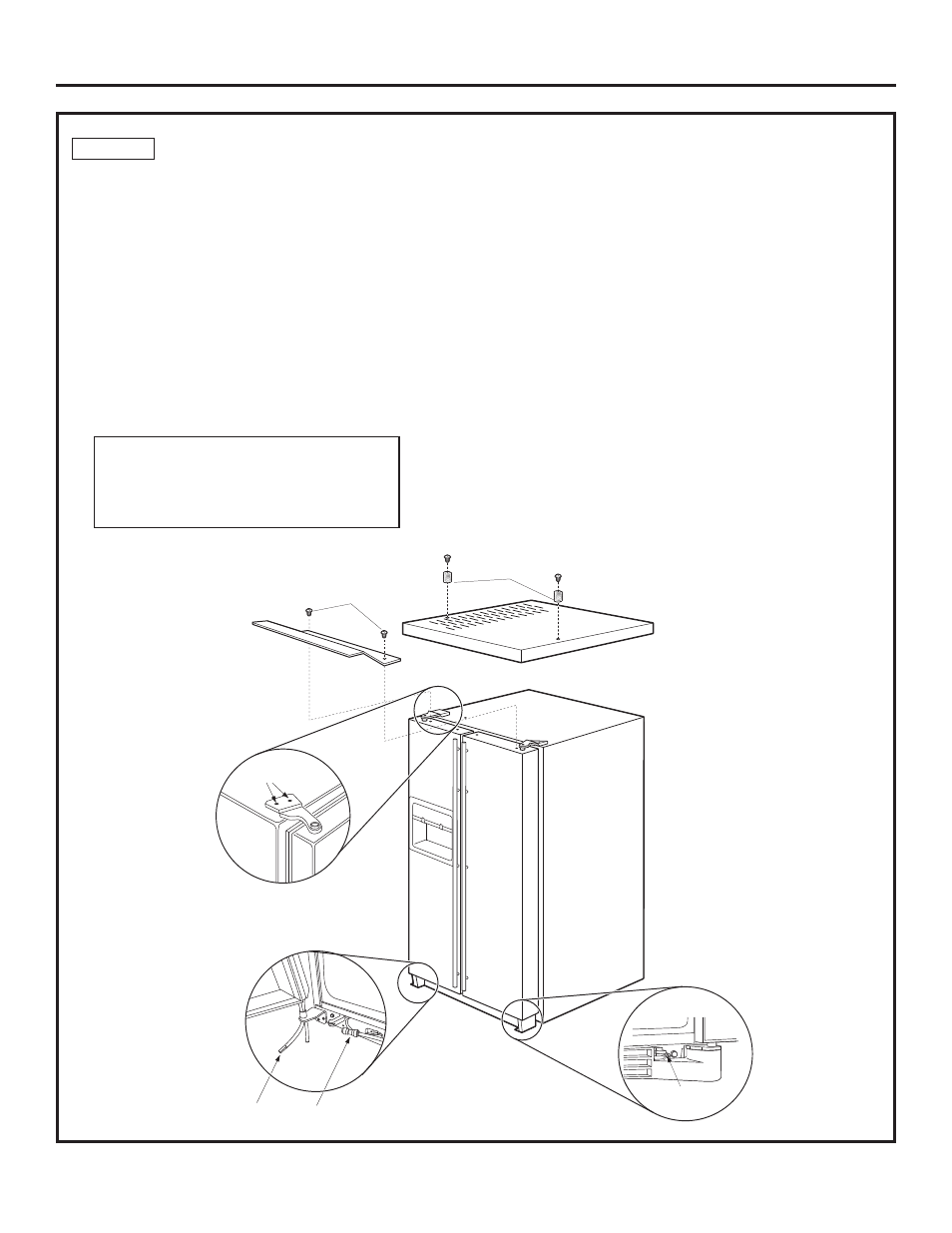

REMOVE THE DOORS
The top cap must be removed to access hinges. It is best
to remove one door at a time.
A. Remove 2 screws and springs on top of the refrigerator,
one on each side. Push the top cap forward and lift up
from the rear.
B. Remove 2 screws holding the top filler strip, lift off.
C. Open both doors. Remove the 2 toekick screws and pull
forward to remove.
D. Disconnect the water line coupler by pushing against
the collar on the left side. Disconnect wire harness.
E. Remove 2 screws holding top hinge to the case.
Carefully lift off door.
Follow the same procedure to remove the fresh food door.
NOTE: To prevent damage, leave inside
packaging, door spacer and outside
protective wrap in place until the unit
is moved to the installation location.
Hinge Screws
E
Water Line Coupler Wire Harness
D
Toekick Screw
C
B
A
