Planning Information
3
36"
72"
29-1/2"
Including
Handles
27-1/2"
Case
Depth
716Dia1

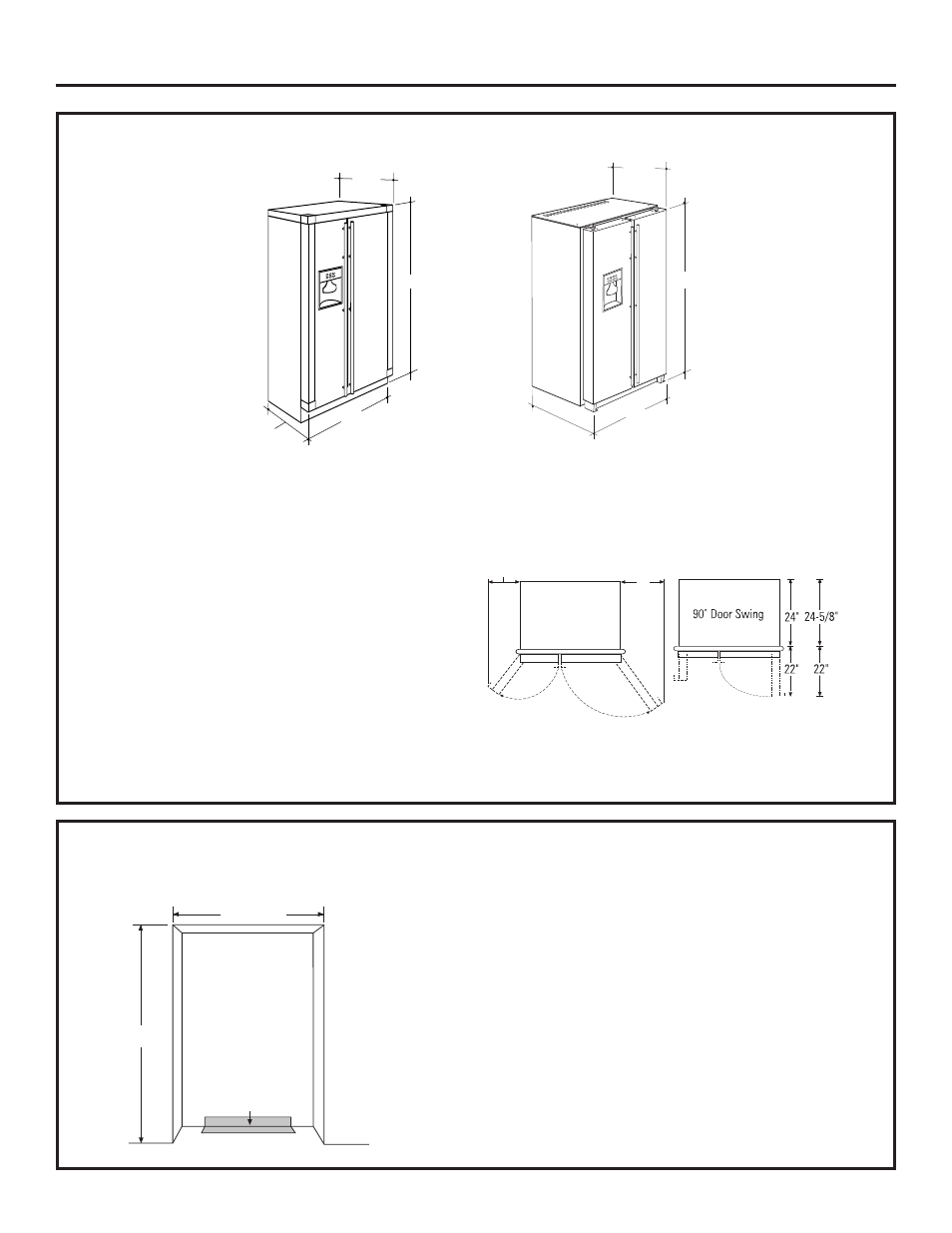

PRODUCT DIMENSIONS AND CLEARANCES
These Monogram free-standing refrigerators require the
following clearances for proper air circulation, plumbing
and electrical connections.
Air Circulation Clearances:
• 1/8" on each side
• 1" at the top
• 1-1/2" at the back side
Installation in a corner:
• Allow 4" clearance on each side to an adjacent wall for a
90° opening and access to drawers.
• On the freezer side, allow 14-1/4" min. clearance
for removal of ice bin.
• On the fresh food side, allow 19" min. clearance
to wall for removal of drawers.
213Dia11
19"
14-1/4"
160 ° Door Swing
72"
36"
30-1/2"
Including
Handles
28-1/2"
Depth
ZFSB25
ALL MODELS
Z
F
S
B
2
5
Z
F
S
B
2
3
ZFSB23
THE INSTALLATION SPACE
The opening width must be at least 36-1/4". Water And Electrical Locations
The opening must be prepared with the electrical and water
supply located as shown.
Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded
3-prong electrical receptacle recessed into the back wall.
NOTE: GFI (ground fault interrupter) is not recommended.
• Water line can enter the opening through the floor or
through an adjacent cabinet, as close to the back
wall as possible. The water line should be GE
SmartConnect
™ Refrigerator Tubing or 1/4" O.D. copper
tubing between the cold water line and water connection
location at the rear of the refrigerator. Installation of an
easily accessible shut off valve in the water line is
recommended.
Dia6
Wall View
Electrical
Area
73" min.
Water Supply
36-1/4" min.
