Grandstream Networks GXW410X User Manual
Page 7

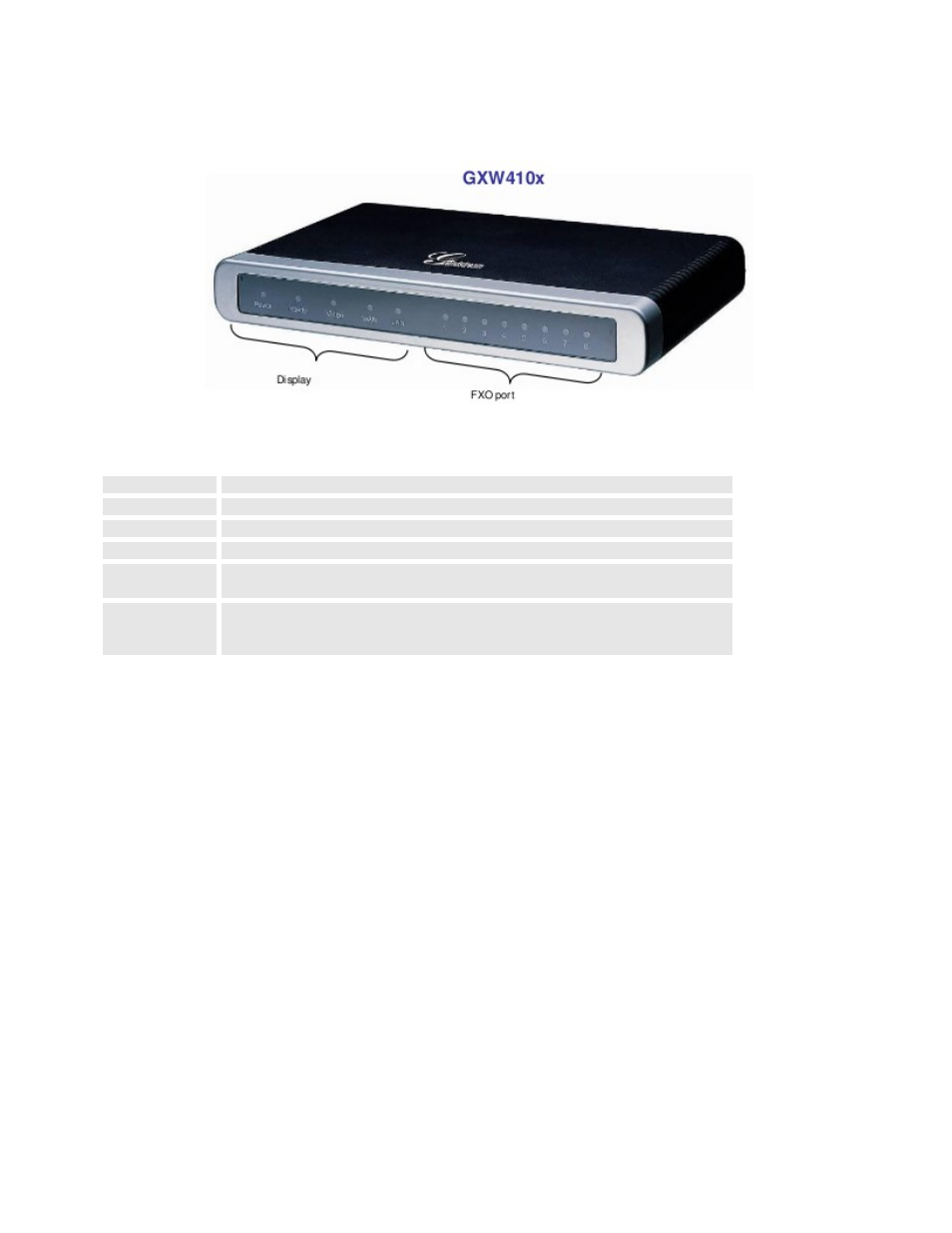

F
IGURE
2: D
IAGRAM
OF
GXW410
X
D
ISPLAY
P
ANEL
T
ABLE
2: D
EFINITIONS
OF
THE
GXW D
ISPLAY
P
ANEL
Power LED
Indicates Power. Remains ON when Power is connected and unit is turned ON.
Ready LED
Remains ON after bootup.
LAN LED
Indicates LAN (or WAN) port activity
PC LED
Indicates PC (or LAN) port activity
Video LED
Remains solid green on bootup. If Video IN terminal is connected, indicates
video activity.
LEDs 1 8
Indicate status of the respective FXO Ports on the back panel
Busy ON
Available OFF
NOTE: All LEDs display green when ON. The Ready light will only be ON when the network interface is
ready and the Web User Interface is accessible.
During a firmware upgrade or configuration download the following LED pattern will be observed:
Power, Ready, Video and WAN LEDs will be ON. The FXO port LED will keep flashing during download
and then stay OFF while the new files are written. The entire process may take between 20 to 30
minutes. The firmware upgrade is complete when you can login into the web configuration pages.
