PACKAGING
Unpack and check all accessories. Equipment included in the package:
1) One GXW410x Unit
2) One universal power adapter
3) One Ethernet cable
C
ONNECTING THE
GXW410
X
F

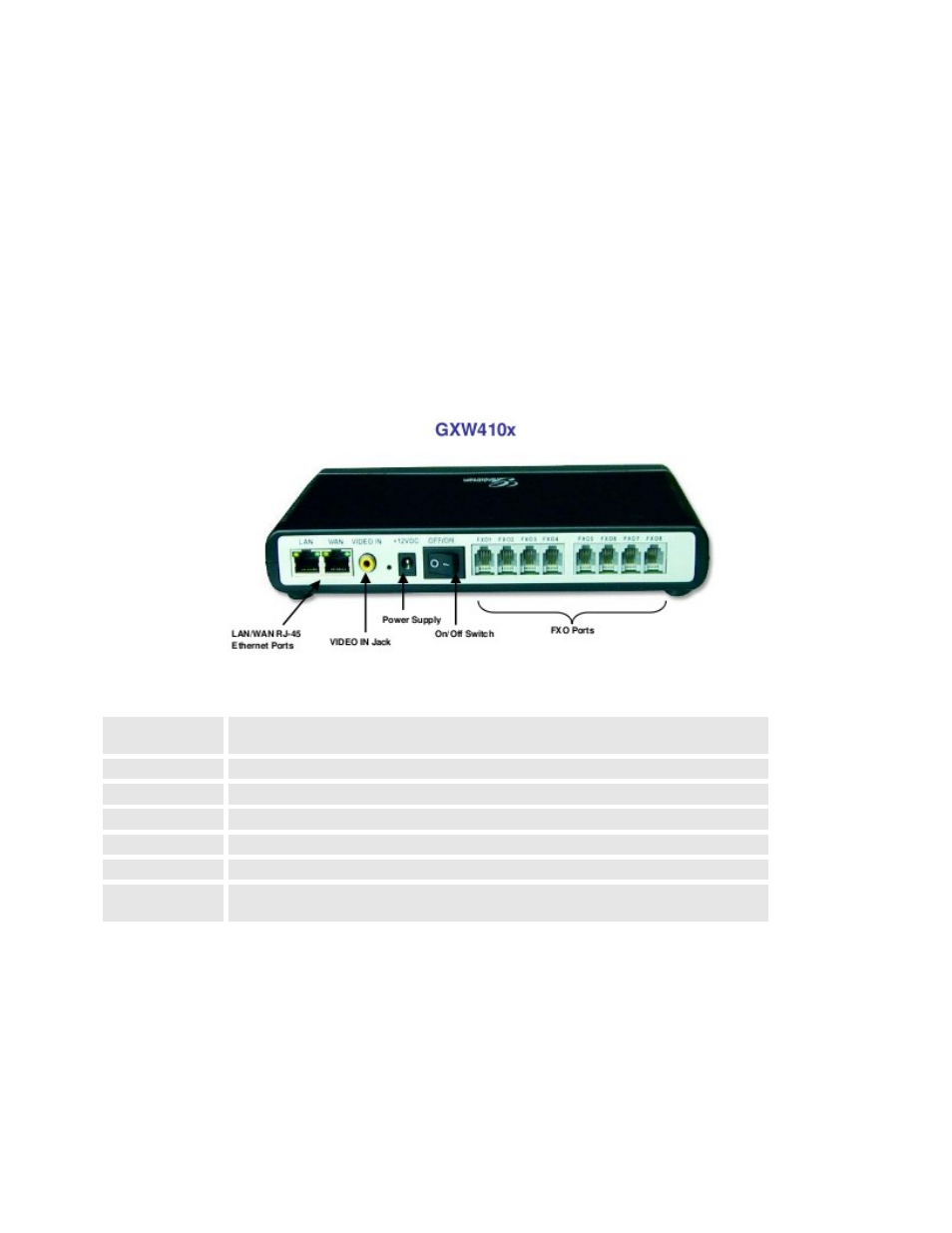

IGURE
1: D
IAGRAM OF
GXW410
X
B
ACK
P
ANEL
T
ABLE
1: D
EFINITIONS OF THE
GXW C
ONNECTORS
LAN (or PC) Connect your PC to this port. It will then be assigned an IP address from your
Router/DHCP Server. The GXW410x acts as a switch only.
WAN Connect to the internal LAN network or Public Internet.
VIDEO IN Connection for Analog based Video Surveillance Camera (RCA)
RESET Factory Reset button. Press for 7 seconds to reset factory default settings.
POWER IN Power adapter connection
OFF/ON Off/On switch
FXO1 ­ FXO8 FXO ports to be connected to physical PSTN lines from a traditional PSTN PBX or
PSTN Central Office.
