GE PK956WM - Manual

For answers to your Monogram, ® GE Profile ™ or
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center ® service,
800.626.2000.
Listed by
Underwriters
Laboratories
KW Rating
240V 6.8
208V 5.1
Breaker Size
240V 30 Amps
208V 30 Amps
Note: Cabinets installed adjacent to wall ovens
must have an adhesion spec of at least a 194°F
temperature rating. For 27” built-in single ovens,
if marks, blemishes or the cutout opening is visible
above the installed oven, it may be necessary to
add wood shims under the runners and front trim
until the marks or openings are covered.
Note: Door handle protrudes 3" from door face.
Cabinets and drawers on adjacent 45° and 90°
walls should be placed to avoid interference with
the handle.
Electric wall ovens are not approved for
installation with a plug and receptacle.
They must be hard wired in accordance with
installation instructions.
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
Cabinet 27"
A – Cabinet width required 27" min.
B – Minimum cabinet depth 23-5/8"
C – Opening width 25" min. - 25-1/4" max
D – Opening height 50-1/8" max
E – Recommended minimum cutout location from floor 13-1/4"
Oven
F – Overall depth*
23-5/8"
G – Overall height with trim 51-7/8" - 52-3/4"
Overall height without trim 51"
H – Overall width 26-5/8"
*Depth including door handle is approximately 26-7/10" min. to 26-8/10" max.
CL
Suitable
bracing
to support
runners
18"
Over centerline
of cabinet
(must support 300 lbs.)
2" x 4" or
equivalent
runners
10 Locate
junction box
for 27"models
either 5" MIN.
below cutout
floor or 44"
MIN. above
cutout floor
Access
from
adjacent
cabinet
required
Allow 3/4"
for overlap
over all edges
of cutout
A
Minimum
cutout location
from floor
D
E
2" X 4" or
equiv. runners
(cutout floor)
21" MIN.
door opening
allowance
B
C
H
F
G
Locate
junction box
for 24"models
56" MIN. above
cutout floor
Conduit
(48-1/2" Long)
21
PK956BM/CM/WM
GE Profile ™ 27" Built-In Convection/Thermal Wall Oven
Cabinet 27"
A – Cabinet width required 27" min.
B – Minimum cabinet depth 23-5/8"
C – Opening width 25" min. - 25-1/4" max
D – Opening height 50-1/8" max
E – Recommended minimum cutout location from floor 13-1/4"
Oven
F – Overall depth*
23-5/8"
G – Overall height with trim 51-7/8" - 52-3/4"
Overall height without trim 51"
H – Overall width 26-5/8"
*Depth including door handle is approximately 26-7/10" min. to 26-8/10" max.
CL
Suitable
bracing
to support
runners
18"
Over centerline
of cabinet
(must support 300 lbs.)
2" x 4" or
equivalent
runners
10 Locate
junction box
for 27"models
either 5" MIN.
below cutout
floor or 44"
MIN. above
cutout floor
Access
from
adjacent
cabinet
required
Allow 3/4"
for overlap
over all edges
of cutout
A
Minimum
cutout location
from floor
D
E
2" X 4" or
equiv. runners
(cutout floor)
21" MIN.
door opening
allowance
B
C
H
F
G
Locate
junction box
for 24"models
56" MIN. above
cutout floor
Conduit
(48-1/2" Long)
21

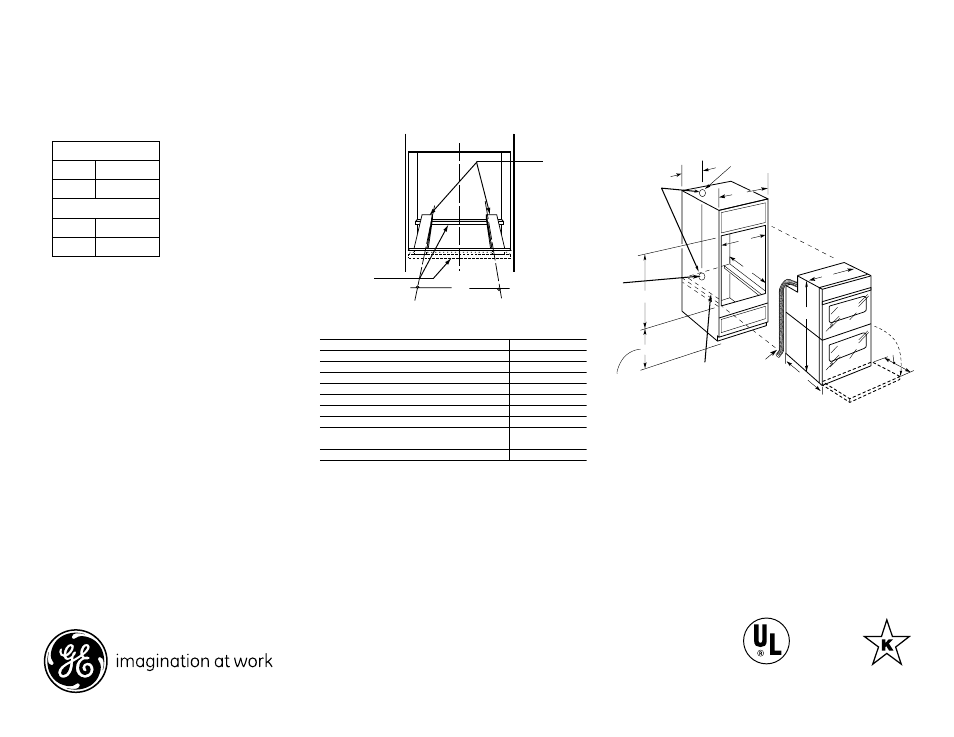

Dimensions and Installation Information (in inches)
Specification Created 1/07 220357
