GE PK916BM - Manual

For answers to your Monogram, ® GE Profile ™ or
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center ® service,
800.626.2000.
Listed by
Underwriters
Laboratories
KW Rating
240V 3.4
208V 2.6
Breaker Size
240V 20 Amps
208V 20 Amps
PK916BM/CM/WM
GE Profile ™ 27" Built-In Single Convection Wall Oven
Note: These ovens are not approved for stackable or side-by-
side installations.
Note: Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least a 194°F temperature rating. For 27”
built-in single ovens, if marks, blemishes or the cutout opening
is visible above the installed oven, it may be necessary to add
wood shims under the runners and front trim until the marks or
openings are covered.
Electric wall ovens are not approved
for installation with a plug and receptacle. They must be hard
wired in accordance with installation instructions.
Note: Door handle protrudes 3" from door face. Cabinets and
drawers on adjacent 45° and 90° walls should be placed to avoid
interference with the handle.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
Cabinet 27"
A – Cabinet width required 27" min.
B – Minimum cabinet depth 23-5/8"
C – Opening width 25" min. - 25-1/4" max
D – Opening height 27-5/8" min. - 28-1/8" max.
Oven
E – Overall depth*
23-5/8"
F – Overall height with trim 29-7/8" - 30-3/4"
Overall height without trim 29"
G – Overall width 26-5/8"
*Depth including door handle is approximately 26-7/10" min. to
26-8/10" max.
Access
from
adjacent
cabinet
required
CL
Suitable
bracing
to support
runners
18"
Over centerline
of cabinet
(must support 275 lbs.)
2" x 4" or
equivalent
runners
2" x 4"
or equiv.
runners
B MIN.
C MIN.
Conduit 48-1/2" long
32-1/2
D
10
A
Allow 3/4"
for overlap
over all edges
of cutout
Locate
junction box
either 5" MIN.
below cutout
floor or 44"
MIN. above
cutout floor
Minimum
cutout location
from floor
(Minimum 15-5/8"
from floor when
installed below built-in
microwave oven)
E
G
F
20

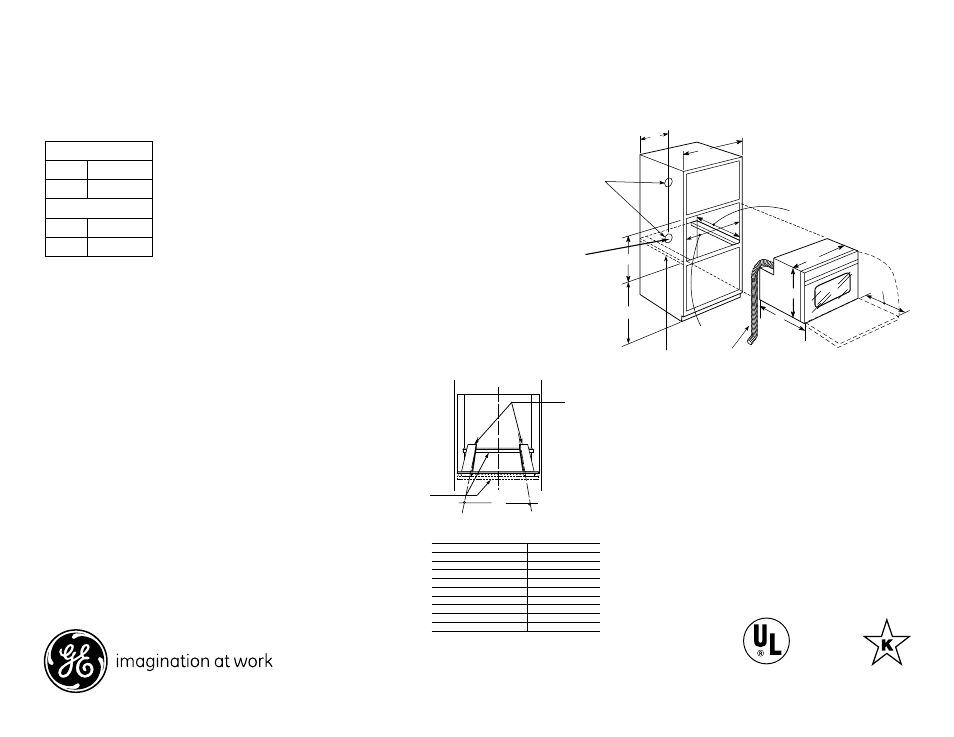

Dimensions and Installation Information (in inches)
Cabinet 27"
A – Cabinet width required 27" min.
B – Minimum cabinet depth 23-5/8"
C – Opening width 25" min. - 25-1/4" max
D – Opening height 27-5/8" min. - 28-1/8" max.
Oven
E – Overall depth*
23-5/8"
F – Overall height with trim 29-7/8" - 30-3/4"
Overall height without trim 29"
G – Overall width 26-5/8"
*Depth including door handle is approximately 26-7/10" min. to
26-8/10" max.
Access
from
adjacent
cabinet
required
CL
Suitable
bracing
to support
runners
18"
Over centerline
of cabinet
(must support 275 lbs.)
2" x 4" or
equivalent
runners
2" x 4"
or equiv.
runners
B MIN.
C MIN.
Conduit 48-1/2" long
32-1/2
D
10
A
Allow 3/4"
for overlap
over all edges
of cutout
Locate
junction box
either 5" MIN.
below cutout
floor or 44"
MIN. above
cutout floor
Minimum
cutout location
from floor
(Minimum 15-5/8"
from floor when
installed below built-in
microwave oven)
E
G
F
20
Specification Revised 10/07 220361
