GE PT920SM - Manual

Listed by
Underwriters
Laboratories
For answers to your Monogram, ® GE Profile ™ or
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center ® service,
800.626.2000.
PT920SM
GE Profile ™ 30" Built-In Single Convection Wall Oven
KW Rating
240V 4.5
208V 3.4
Breaker Size
240V 20 Amps
208V 20 Amps
Most 30” Wall Cabinets can be used with this unit.
Note: These ovens are not approved for stackable or
side-by-side installations. Cabinets installed adjacent
to wall ovens must have an adhesion spec of at least a
194°F temperature rating.
Door handle protrudes 3" from door face. Cabinets and
drawers on adjacent 45° and 90° walls should be placed
to avoid interference with the handle.
Electric wall ovens are not approved for installation
with a plug and receptacle. They must be hard wired
in accordance with installation instructions.
Installation Information: Before installing, consult
installation instructions packed with product for current
dimensional data.
Side-by-side installations require at least 2"
between cutouts.
CL
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(must support 275 lbs.)
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
29-3/4
C
30
Recommended
cutout location
32-1/2"
from floor 21
Junction
box
location
Allow minimum of 21'' for clearance
to adjacent corners, drawers, walls, or etc.
A=Allow 1" overlap of oven over top and bottom edges of cutout.
B=Allow 11/16"-3/4" for overlap of oven over side edges of cutout.
C=28-1/4" without trim and 28-3/4" with trim.
Conduit
(72"
long)
5
27-1/4'' MIN.
27-5/16'' MAX.
Cutout height
A
B
23-1/2'' MIN.
Cutout depth
22'' MIN.
CL
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(must support 275 lbs.)
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
29-3/4
C
30
Recommended
cutout location
32-1/2"
from floor 21
Junction
box
location
Allow minimum of 21'' for clearance
to adjacent corners, drawers, walls, or etc.
A=Allow 1" overlap of oven over top and bottom edges of cutout.
B=Allow 11/16"-3/4" for overlap of oven over side edges of cutout.
C=28-1/4" without trim and 28-3/4" with trim.
Conduit
(72"
long)
5
27-1/4'' MIN.
27-5/16'' MAX.
Cutout height
A
B
23-1/2'' MIN.
Cutout depth
22'' MIN.

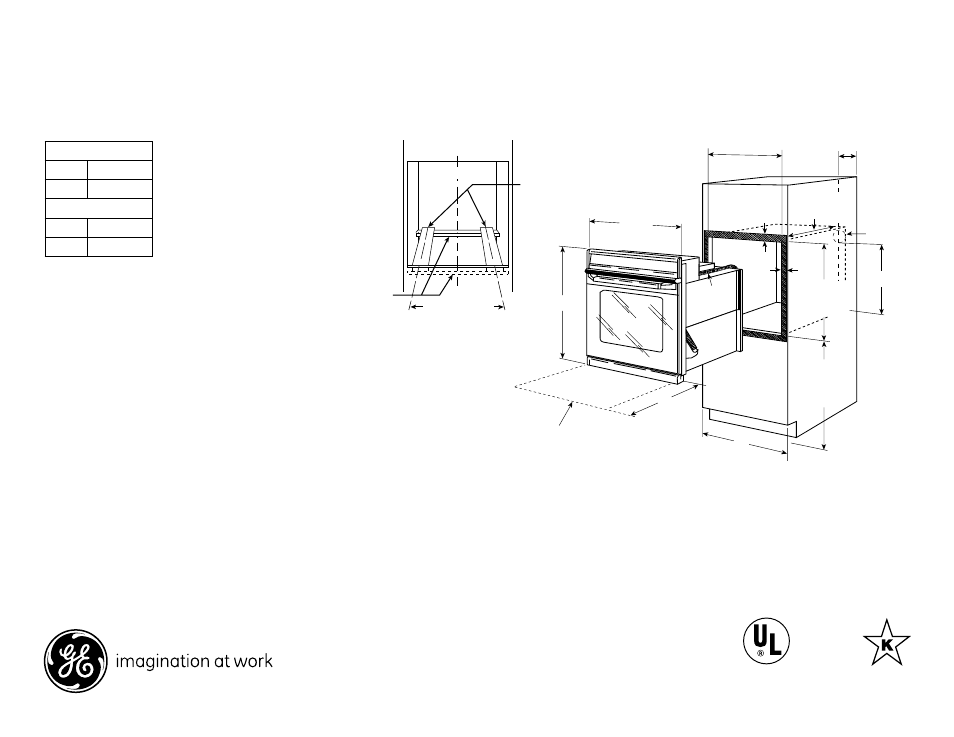

Dimensions and Installation Information (in inches)
Specification Created 1/07 220239
