Grandstream Networks, Inc. HT–286 User Manual Page 6 of 28
Firmware 1.1.0.31 Last Updated: 1/2009
T HREE EASY STEPS TO INSTALL THE HT–286
1. Connect a standard touch-tone analog telephone (or fax machine) to FXS port.
2. Insert the Ethernet cable into the LAN port of HT–286 and connect the other end of the Ethernet
cable to an uplink port (a router or a modem, etc.)
3. Insert the power adapter into the HT–286 and connect it to a wall outlet.

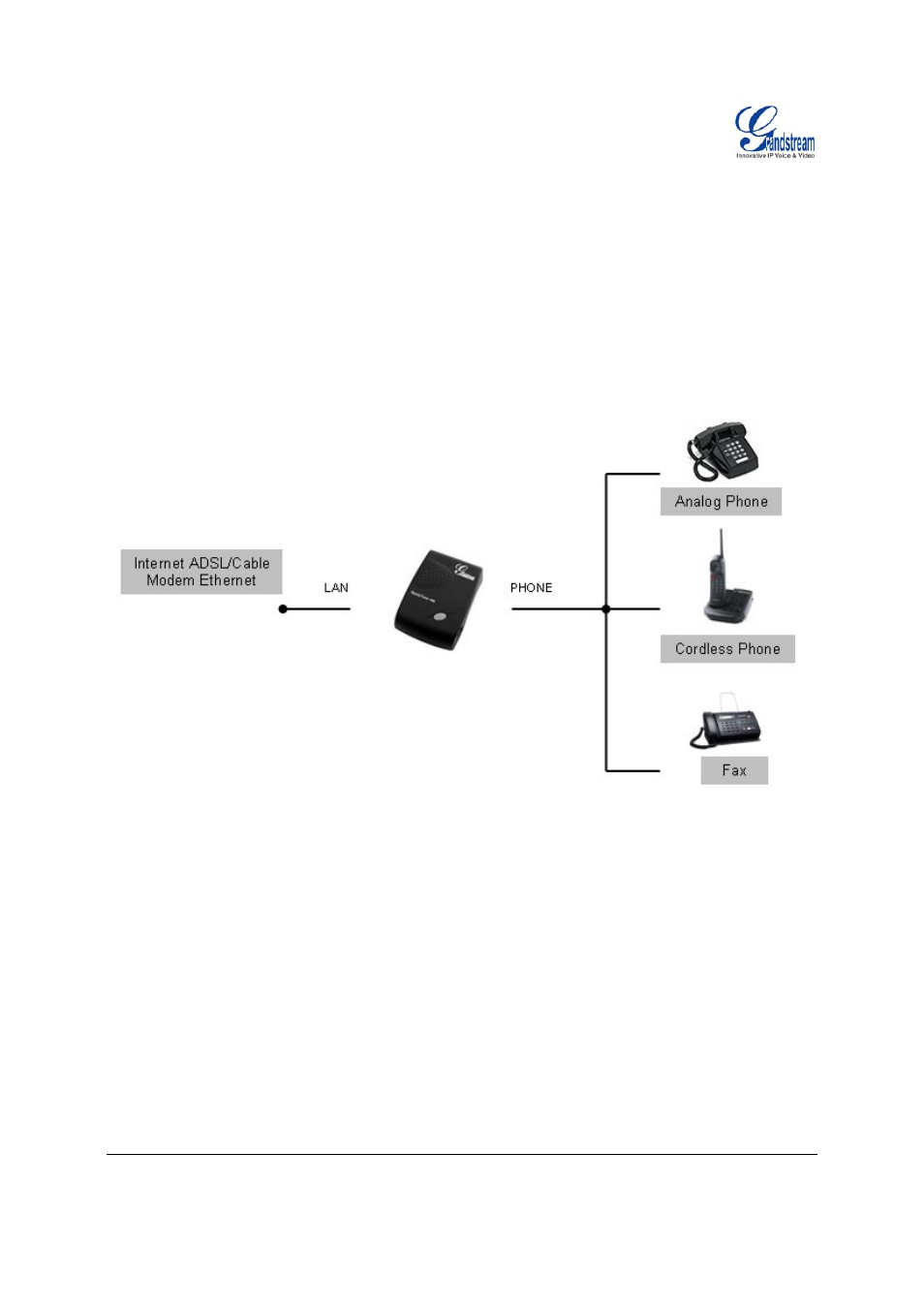

F IGURE 2: HT286 C ONNECTION D IAGRAM
