Installation
E QUIPMENT P ACKAGING
The HT–286 ATA package contains:
• One HT–286 Main Case
• One Universal Power Adaptor
• One Ethernet Cable
C ONNECTING Y OUR ATA
The HT–286 is easy to configure. HandyTone-286 is a VoIP Analog Telephone Adaptor designed to work

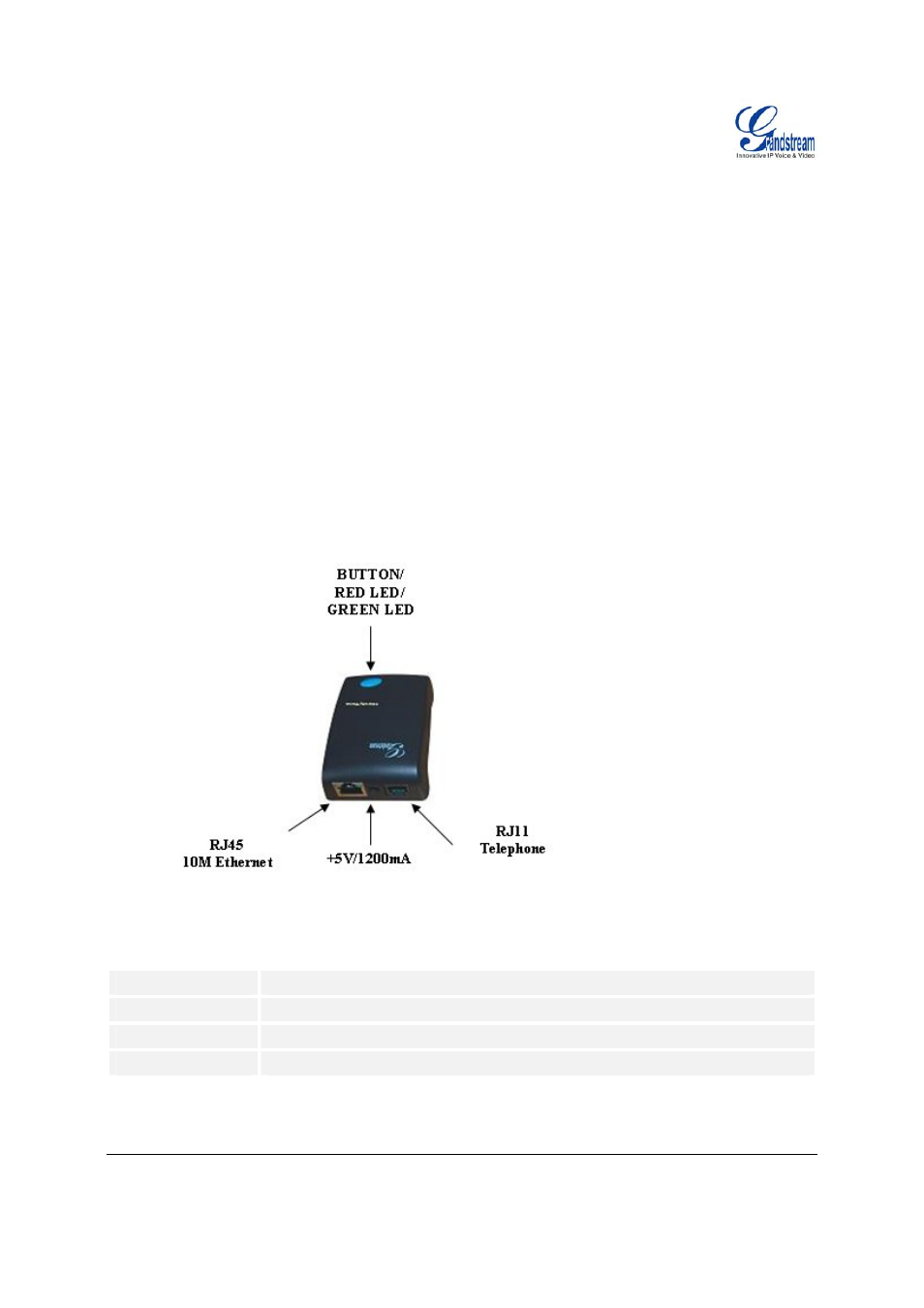

with an ordinary analog telephone. The following photo illustrates the appearance of a HandyTone-286.
F IGURE 1: C ONNECTING THE HT286
T ABLE 1: D EFINITIONS OF THE HT–286 C ONNECTORS
Power Cable Power adapter connection
LAN Port (RJ-45) Connect the LAN port with an Ethernet cable to your PC.
PHONE FXS port to be connected to analog phones / fax machines.
BUTTON Button and two colors led indicator.
