-18-

H6246 Meat Cutting Bandsaw

Fences

Components and Hardware Needed:

Qty

Long Fence ....................................................... 1
Short Rail ........................................................... 1
Short Fence ....................................................... 1
Long Rail ........................................................... 1
Knob Bolts M8-1.25 x 20 ................................... 2
Set Screws M8-1.25 x 12 ................................... 2
Hex Bolts M6-1 x 16 .......................................... 4
Rail Brackets ..................................................... 2

Tools Needed:

Qty

Wrench or Socket 10mm ................................... 1

To assemble fence:

1. Mount the two rail brackets to the edge of the

table with the hex bolts, as shown in

Figure

16.

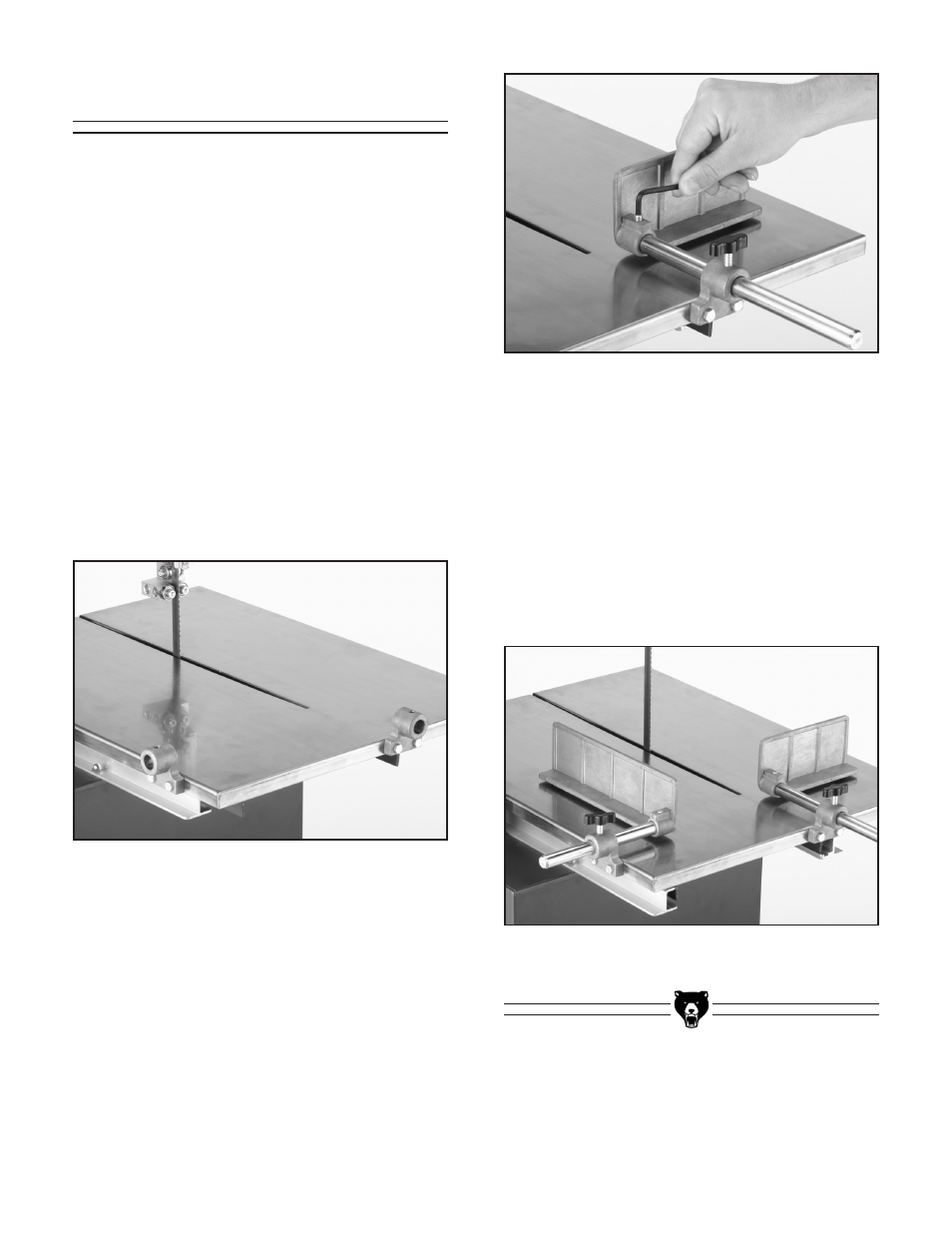

Figure 16. Rail brackets installed on table.

Figure 17. Securing fence to rail.

Figure 18. Completed assembly of fences and

rails.

2. Insert the end of the long rail into the short

fence and secure together with one of the set
screws (

Figure 17).

3. Insert the end of the short rail into the long

fence and secure together with the remaining
set screw.

4. Slide the long rail/short fence assembly into

the bracket that is mounted on the front of the
table.

5. Slide the short rail/long fence assembly into

the bracket that is mounted on the left-side of
the table.

6. Use the knob bolts to tighten both fence

rails to the fence brackets. Your completed
assembly should look like

Figure 18.
