H6246 Meat Cutting Bandsaw
Inventory
After all the parts have been removed from the
two boxes, you should have the following items:
Inventory: (Figure 3)
Qty
A. Legs ............................................................ 4
B. Meat Grinder Assembly .............................. 1
C. Sliding Table ............................................... 1
D. Rails (front/rear) ......................................... 2
E. Cover Plate ................................................. 1
F. Long Fence ................................................ 1
G. Long Rail .................................................... 1
H. Short Fence ................................................ 1
I. Short Rail .................................................... 1
J. Box ............................................................. 1
—Rail Brackets ........................................... 2
—Table Brace ............................................ 1
—Rubber Feet ............................................ 4

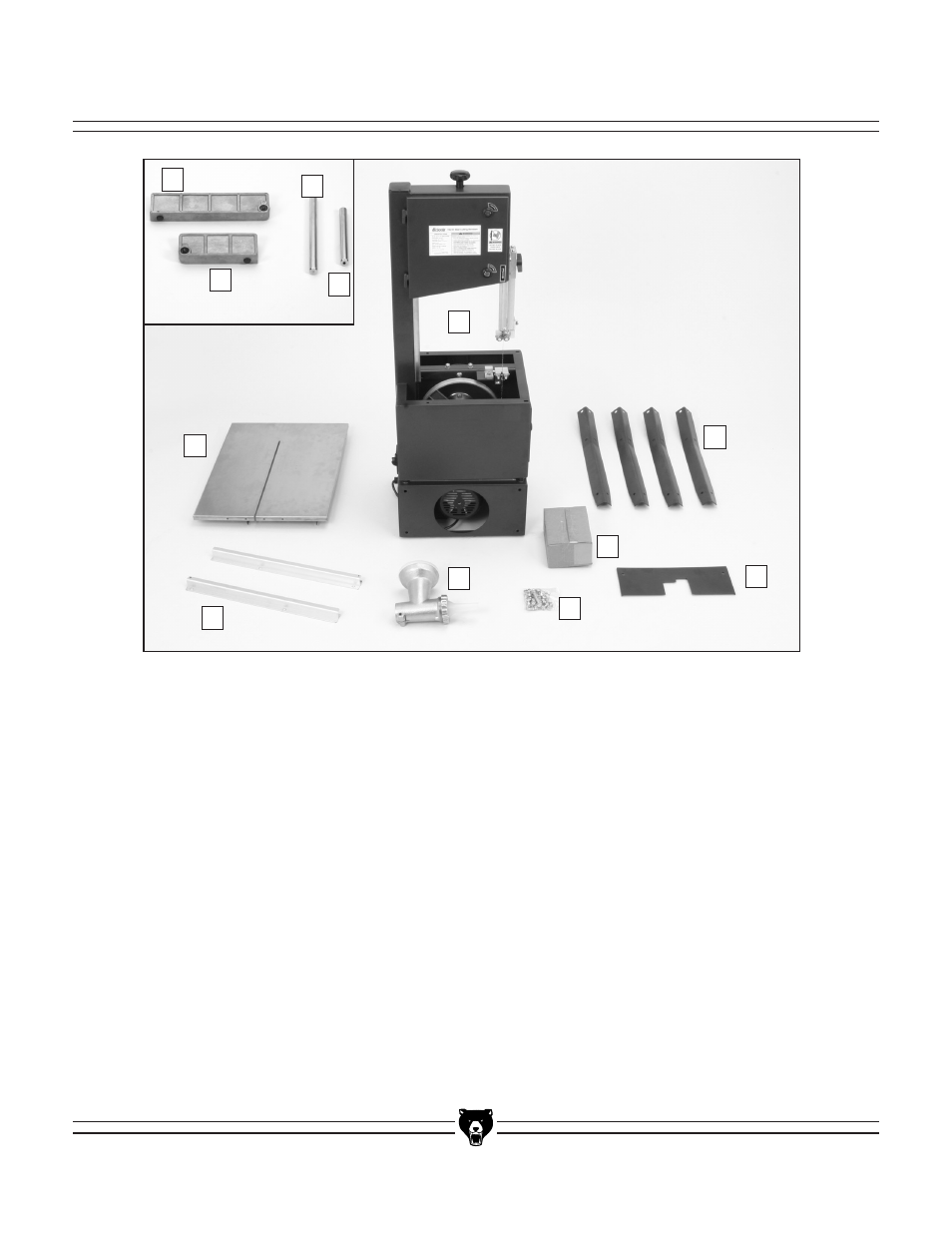

Figure 3. Inventory.
A
C
B
D
K. Bolt Bag ...................................................... 1
—Hex Bolts M8-1.25 x 16 .......................... 8
—Hex Bolt M8-1.25 x 60 ............................ 1
—Hex Bolts M6-1 x 16 ............................... 4
—Hex Bolts M6-1 x 8 ................................. 4
—Hex Nuts M8-1.25 ................................... 9
—Hex Nuts M6-1 ........................................ 4
—Carriage Bolts M6-1 x 12 ........................ 4
—Cap Screws M6-1 x 20 ........................... 2
—Knob Bolts M8-1.25 x 20 ........................ 2
—Set Screws M8-1.25 x 12 ....................... 2
—Flat Washers 6mm ................................. 4
—Acorn Nuts M6-1 ..................................... 4
L. Main Body .................................................. 1
In the event that any nonproprietary parts are
missing (e.g. a nut or a washer), we would be
glad to replace them, or for the sake of expedi-
ency, replacements can be obtained at your local
hardware store.
