-8- G1067Z Wood Lathe

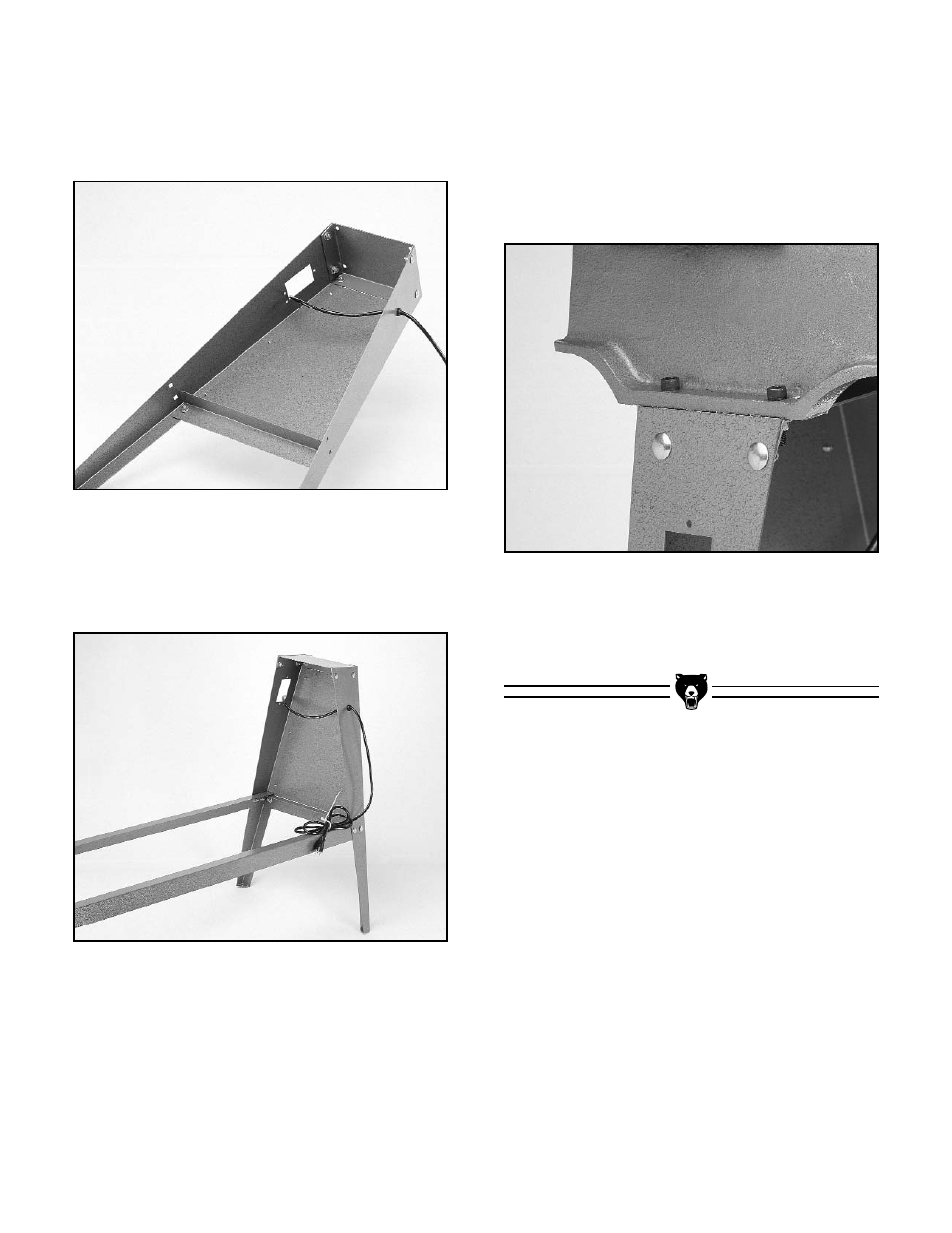

Figure 2.
Figure 3.
Figure 4.
4. With an assistant, set the lathe bed assem-
bly on the stand, orienting the front of the
headstock with the switch opening in the
stand leg. Bolt the lathe bed to the stand
using the eight
5 ⁄
16
'' - 18 x 1 1 ⁄
4
'' Cap Screws
and Hex Nuts supplied and tighten down.
Figure 4 .
5. At this point tighten down all the bolts on the
stand. It is a good idea to do this with the
lathe set in place where it will be used.
2. Bolt the upper mount plate and the short
stand support to each end assembly using
the
5 ⁄
16
'' - 18 x 3 ⁄
4
'' carriage bolts provided.
Figure 2 .
3. Attach the long stand supports to each end
assembly using the
5 ⁄
16
'' - 18 x 3 ⁄
4
'' carriage
bolts provided. Figure 3 .
