G1067Z Wood Lathe -7-
Pre-assembly
Assembly of the G1067Z is straightforward. We
have organized the assembly process into steps.
Please follow them in sequence.
Tools Required: Only a few common tools are
needed to assemble this machine. Specifically, a
6" adjustable wrench, 12mm open end wrench,
regular and Phillips
® head screwdriver and an
8mm Allen ® wrench.
SECTION 2: ASSEMBLY
Stand

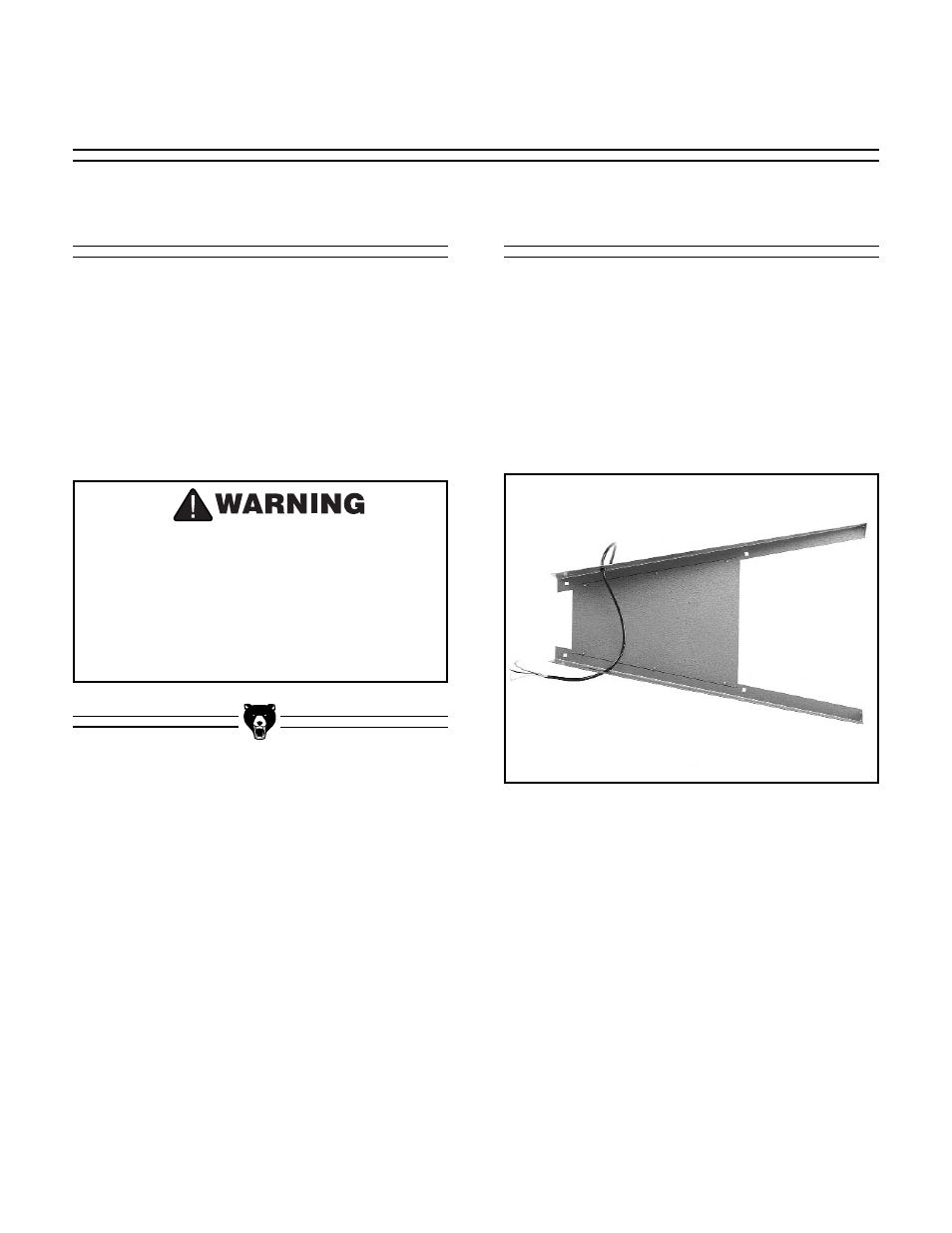

Figure 1.
1. Locate all four stand legs and the two end
panels. Attach an end panel to any two of the
legs using the 10 - 24 x
3 ⁄
8
'' Phillips ® Head
Screws provided. Figure 1 . Repeat this step
for the remaining end panel/legs. Do not
tighten any fasteners during the assembly of
the stand until specifically instructed other-
wise.
All die-cut metal parts have a sharp edge
(called “flashing”) on them after they are
formed. This is removed at the factory.
Sometimes though, a bit of flashing might
escape inspection. Please examine the
edges of all die-cut metal parts before han-
dling them.
