G1067Z Wood Lathe -11-

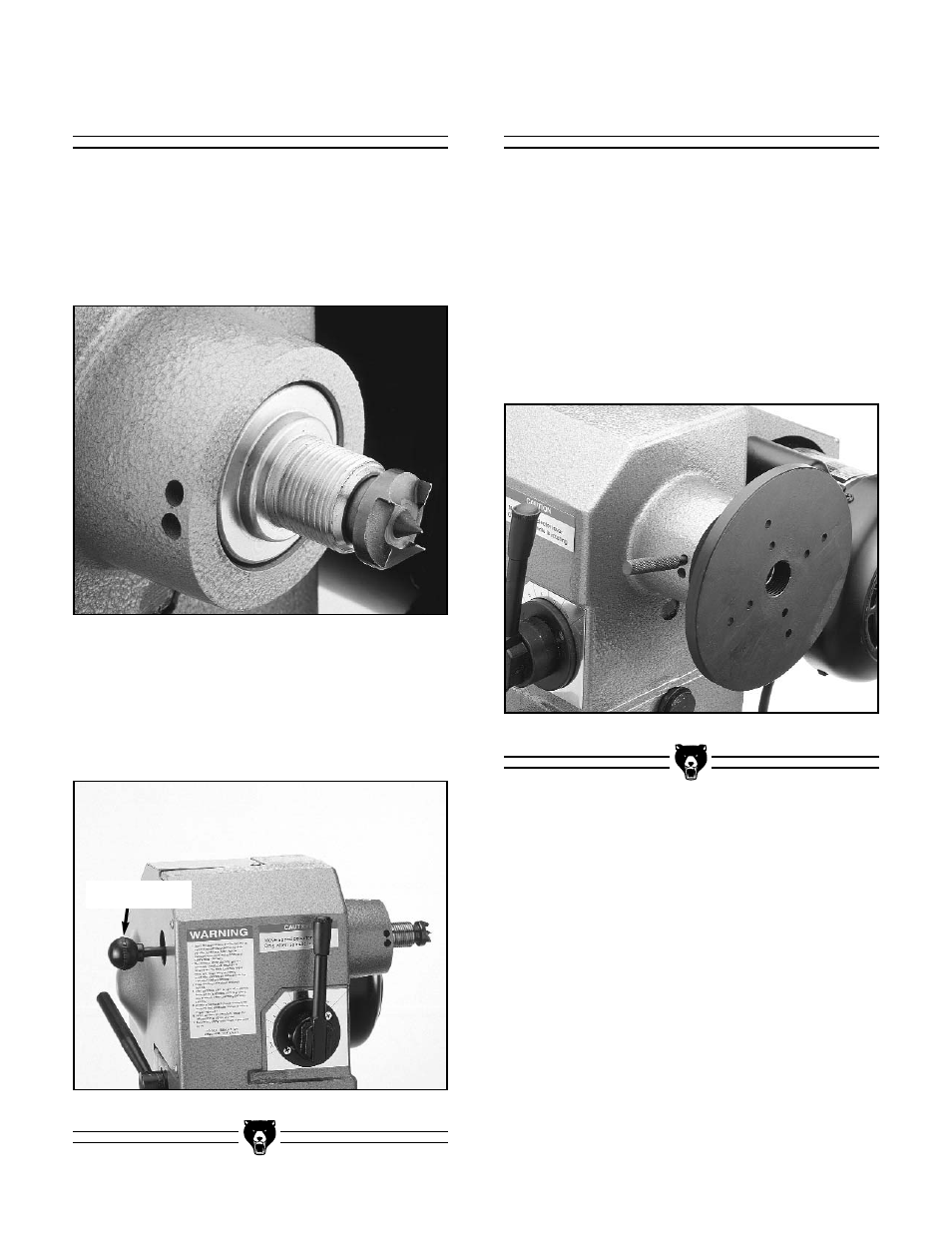

Spur Center
Figure 9.
Figure 10.
The G1067Z is supplied with a #2 Morse taper
spur center for use when spindle turning. The
spur center is used in conjunction with the tail-
stock live center. Install the spur center by insert-
ing into the hole in the inboard spindle.
Figure 9.
Face Plate
Figure 11.
The G1067Z is supplied with a 6'' face plate.The
faceplate is used for bowl and plate turning.
Install the face plate by threading the face plate
onto the inboard spindle. Use the indexing pin to
hold the spindle from rotating while tightening
down or removing the face plate.
Figure 11. Do
not use the face plate in conjunction with the spur
center. Mount your workpiece to the face plate
using the mounting holes bored into the face
plate.
To remove: insert the knockout bar provided into
the outboard spindle and tap with the palm of
your hand while carefully holding onto the spur
center with your other hand.
Figure 10.
Knockout bar
