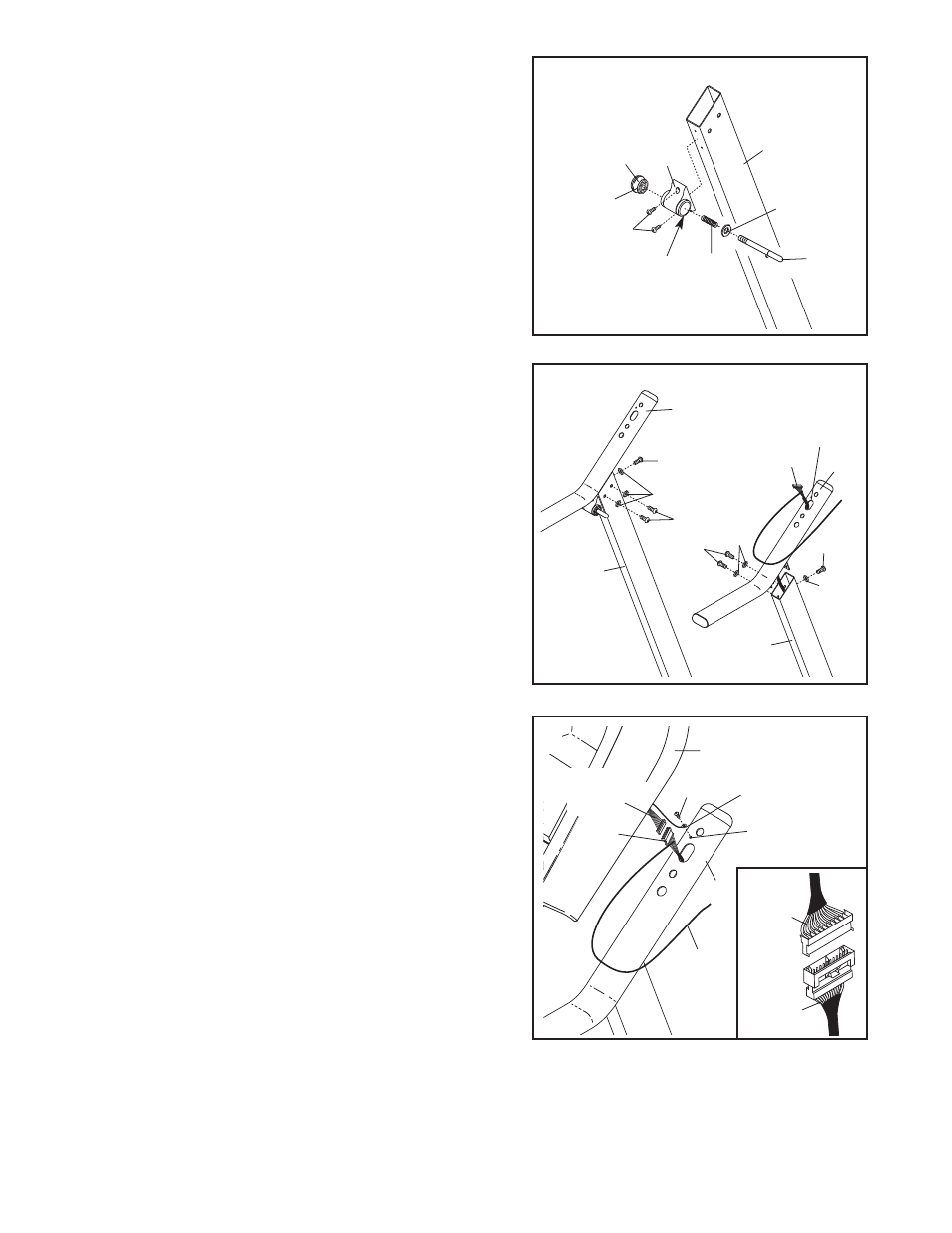

9. Have another person hold the console assembly near the

Right Handrail (90). Attach the end of the ground wire to

the indicated small hole in the Right Handrail with the

M4.2 x 13mm Silver Screw (4).

Connect the Upright Wire (77) to the console wire. See

the inset drawing. The connectors should slide to-

gether easily and snap into place. If they do not, turn

one connector and try again. IF THE CONNECTORS

ARE NOT CONNECTED PROPERLY, THE CONSOLE

MAY BE DAMAGED WHEN THE POWER IS TURNED

ON.

Remove the wire tie from the Upright Wire (77).

4

Console Assembly

Ground

Wire

Wire

Tie

9

8. Hold the Right Handrail (90) near the Right Upright (78).

Insert the Upright Wire (77) into the opening in the bot-

tom of the Right Handrail and out of the indicated hole in

the top.

Set the Right Handrail (90) on the Right Upright (78),

and finger tighten three M8 x 19mm Bolts (6) with three

M8 Star Washers (10) into the Right Handrail and the

Right Upright. Do not fully tighten the Bolts yet. Make

sure that the Upright Wire (77) is not pinched.

Attach the Left Handrail (89) to the Left Upright (73)

as described above. Note: There are no wires on the

left side.

78

6

6

10

77

73

89

10

10

6

6

90

8

77

7. Attach the Latch Insert (70) to the Left Upright (73) with

two #10 x 1" Tek Screws (76). Make sure that the large

hole in the Latch Insert is on the side shown. Do not

overtighten the Tek Screws.

Locate the Latch Pin Assembly (72). Remove the knob

from the pin. Make sure that the collar and the spring

are on the pin as shown. Insert the pin into the Latch

Insert (70), and tighten the knob back onto the pin.

76

Console

Wire

70

73

7

Knob

Pin

Collar

Spring

Large Hole

72

Hole

Small Hole

Console

Wire
