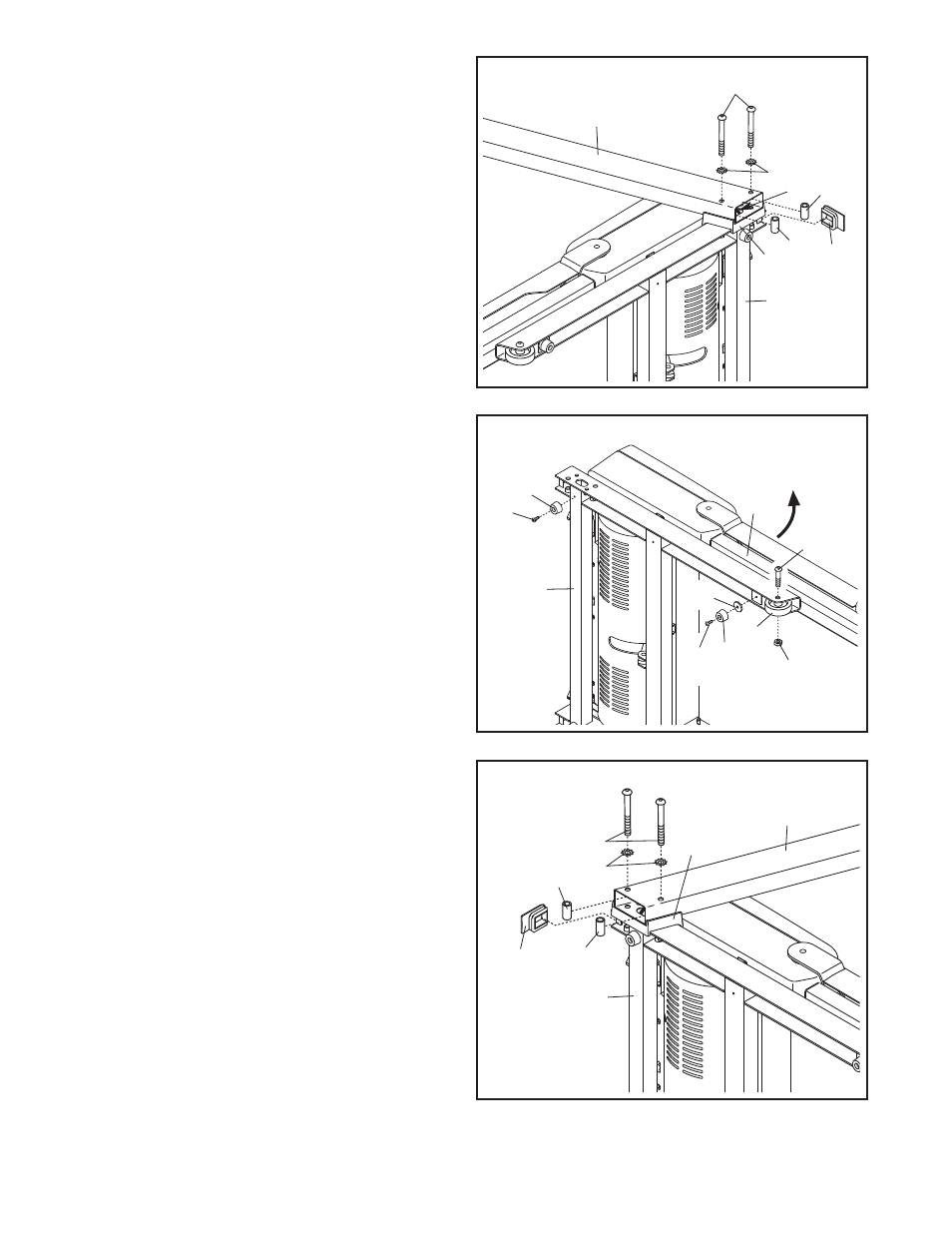

6. Have a second person hold a Bolt Spacer (79)

inside the lower end of the Left Upright (73).

Insert an M10 x 96mm Bolt (5) with an M10 Star

Washer (8) into the Left Upright and the Bolt

Spacer. Repeat this step with a second Bolt

Spacer (79), M10 x 96mm Bolt (5), and M10

Star Washer (8).

Orient the Left Upright (73) and the Left Upright

Spacer (83) as shown. Hold the Left Upright

Spacer and the Left Upright against the Base

(85). Partially tighten the M10 x 96mm Bolts (5);

do not fully tighten the Bolts yet.

Press a Base Cap (82) into the Base (85).

With the help of a second person, tip the tread-

mill so that the Base (85) is flat on the floor.

83

73

5

85

79

79

82

8

6

5. With the help of a second person, carefully tip

the treadmill onto its right side. Partially fold the

Frame (48) so the treadmill is more stable; do

not fully fold the Frame yet.

Attach a Base Pad (81) to the Base (85) in the

location shown with an M4.2 x 25mm Tek Screw

(2) and a Base Pad Spacer (64). Then, attach

another Base Pad (81) with only an M4.2 x

25mm Tek Screw (2).

Attach a Wheel (86) to the Base (85) with an

M10 x 50mm Bolt (27) and an M10 Nut (33). Do

not overtighten the Nut; the Wheel must turn

freely.

5

85

86

48

27

33

81

2

81

64

2

4. Hold a Bolt Spacer (79) inside the lower end of

the Right Upright (78). Insert an M10 x 96mm

Bolt (5) with an M10 Star Washer (8) into the

Right Upright and the Bolt Spacer. Repeat this

step with a second Bolt Spacer (79), M10 x

96mm Bolt (5), and M10 Star Washer (8).

Hold the Right Upright (78) against the Right

Upright Spacer (80). Be careful not to pinch

the Upright Wire (77). Partially tighten the M10

x 96mm Bolts (5); do not fully tighten the

Bolts yet.

Press a Base Cap (82) into the Base (85).

80

78

77

8

82

79

79

5

4
