11. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking
belt (see pages 19 and 20). To protect the floor or carpet, place a mat under the treadmill.
9

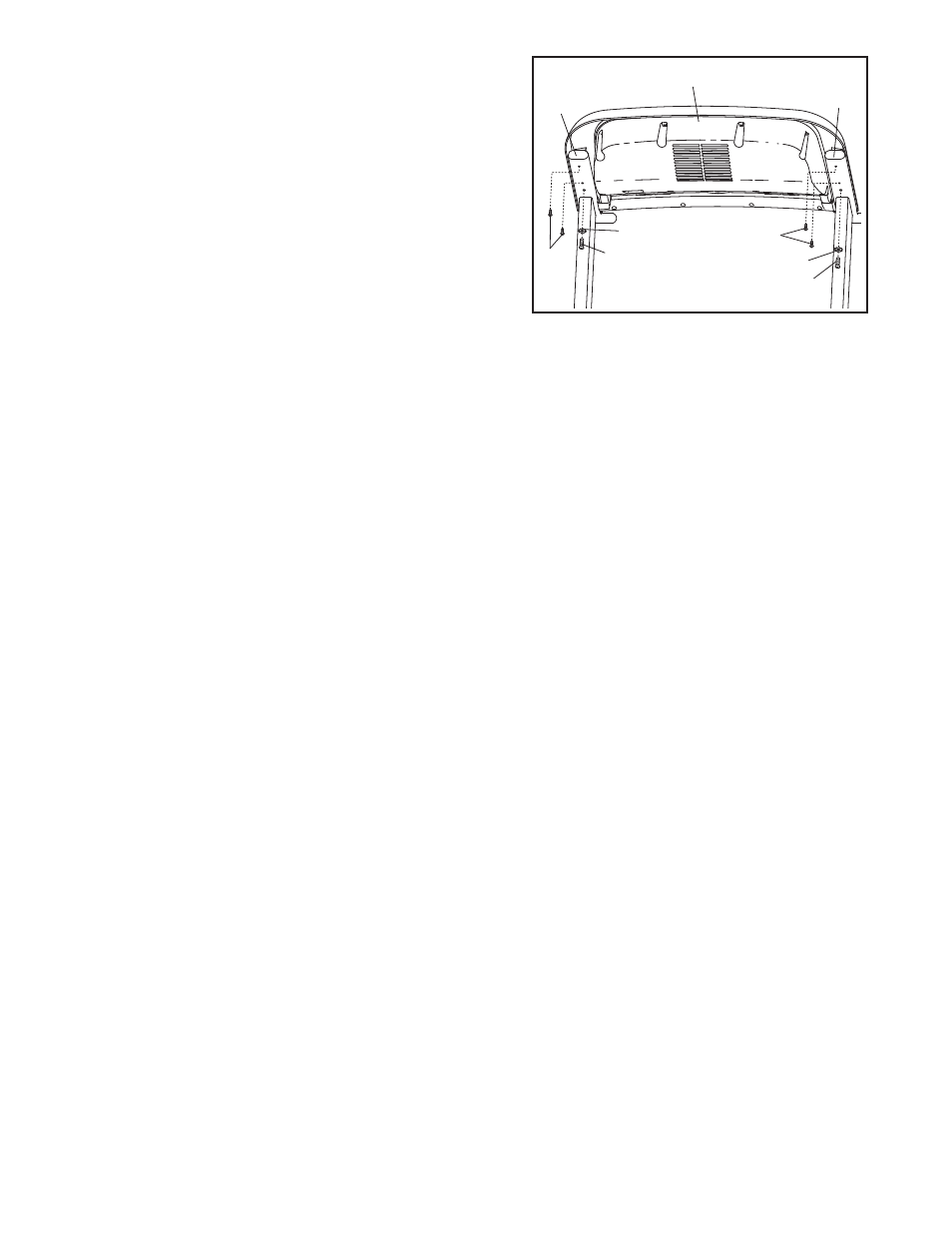

10. Set the console assembly on the Handrails (89, 90); in-
sert the excess wiring into the Right Handrail. Attach the
console assembly with four M4.2 x 19mm Screws (1),
two 1/4" x 1/2" Bolts (9), and two 1/4" Star Washers (71)
as shown. Make sure that no wires are pinched. Start
all four Screws and both Bolts before tightening any
of them.
See steps 4 and 6. Tighten the four M10 x 96mm Bolts
(5).
See step 8. Tighten the six M8 x 19mm Bolts (6).
1 9
71
71
1
90
89
10
Console Assembly
