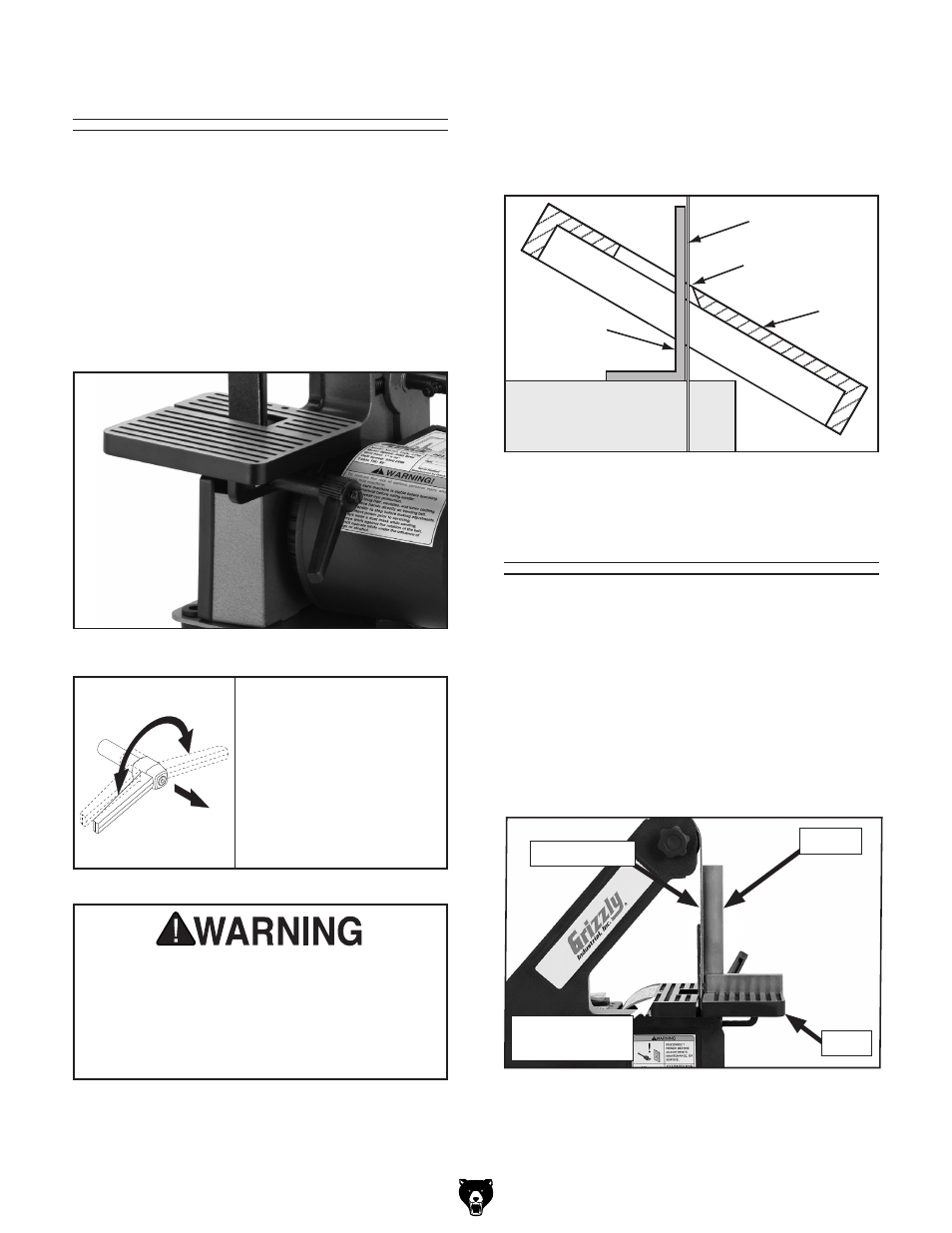

Table Tilt
the table on the Model h3140 can tilt to allow
for sanding of miter cut and other angled
workpieces.
To tilt the table:
1. disConneCt sander FroM poWer!
2. loosen the table lock lever to release the
table position (
figure 9).
the table on the Model h3140 has a 0° stop for
quick horizontal positioning (perpendicular to the
sanding belt).
To adjust the 0° Stop:
1. disConneCt sander FroM poWer!
2. use a machinist's square to set the table
square to the sanding belt (
figure 11).
figure 9.
Table lock lever.
notice
The table lock lever
can be repositioned by
pulling out on the
handle and rotating the
lever. This allows the
lever to rotate when
clearance is limited.
3. tilt the table to the desired angle, then slide
it so that there is less than
1
⁄
16
" between
the table and the sanding belt (
figure 10).
recheck the angle, then tighten the table lock
lever.
Sanding Belt
Table
Gap <
1
⁄
16
"
Platen
Machine Base
figure 10.
Table gap.
A large gap between the belt and table pres-
ents a pinch point that could cause your
fingers to be pulled into the machine. Make
sure the gap between the sanding belt and
the table is less than
1
⁄
16
" to reduce the risk
of personal injury.
0° Stop Adjustment
figure 11.
Adjusting 0° stop.
3. adjust the 0° stop screw until it just touches
the machine base. recheck for square, and
adjust as needed.
square
sanding belt
table
0° stop screw
location
