Grandstream Networks, Inc. HT–496 User Manual Page 6 of 33
Firmware 1.0.3.64 Last Updated: 1/2007
F IVE EASY STEPS TO INSTALL THE HT–496
1. Connect a standard touch-tone analog telephone (or fax machine) to first FXS port.
2. Connect another standard touch-tone analog telephone (or fax machine) to second FXS port.
3. Insert the Ethernet cable into the WAN port of HT–496 and connect the other end of the Ethernet
cable to an uplink port (a router or a modem, etc.)
4. Connect a PC to the LAN port of HT–496.
5. Insert the power adapter into the HT–496 and connect it to a wall outlet.

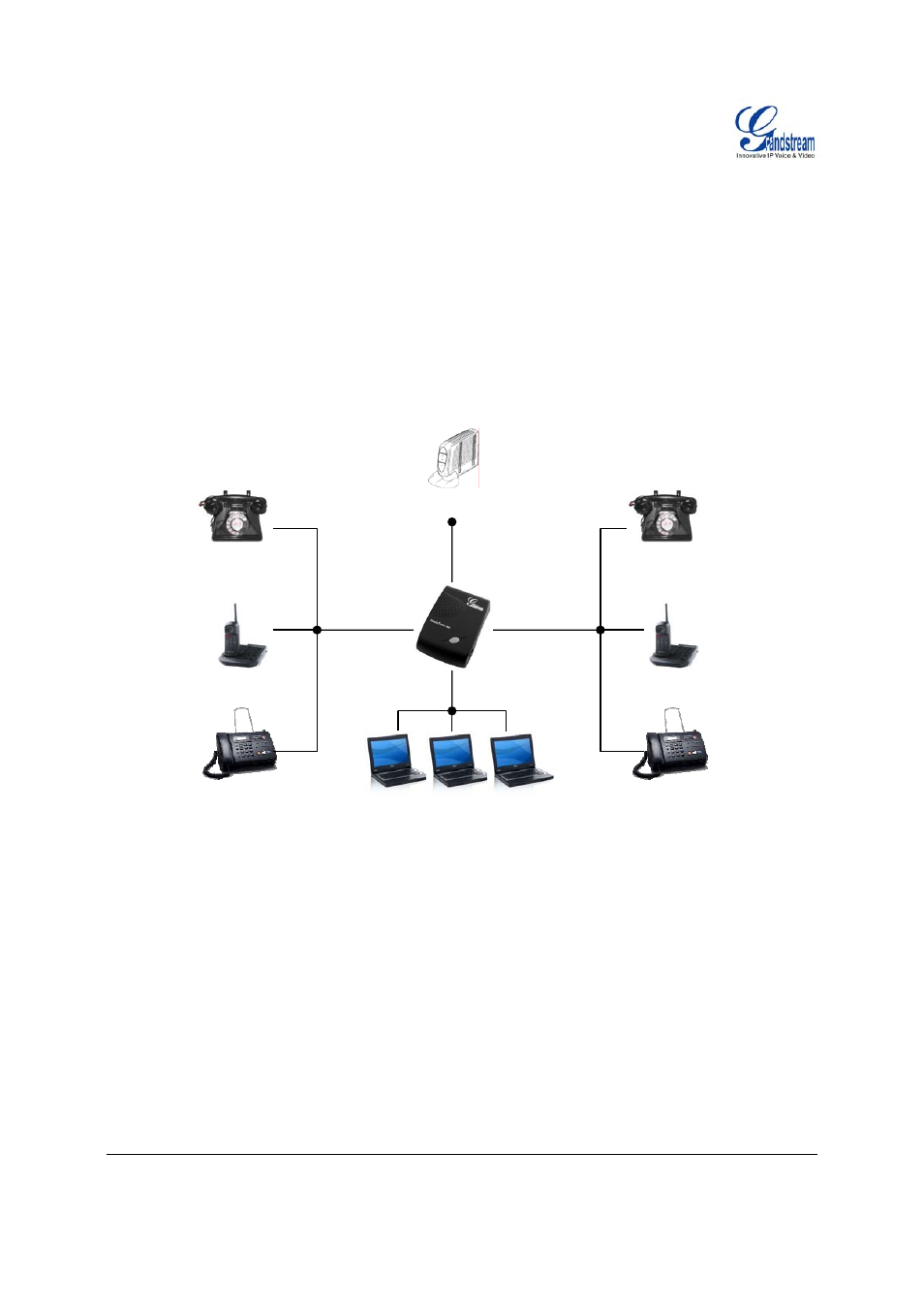

F IGURE 2: C ONFIGURING THE HT–496
S AFETY C OMPLIANCES
The HT–496 complies with FCC/CE and various safety standards. The HT–496 power adaptor is
compliant with UL standard. Only use the universal power adapter provided with the HT–496 package.
The manufacturer’s warranty does not cover damages to the phone caused by unsupported power
adaptors.
W ARRANTY
If you purchased your HT–496 from a reseller, please contact the company where you purchased your
phone for replacement, repair or refund. If you purchased the product directly from Grandstream, contact
your Grandstream Sales and Service Representative for a RMA (Return Materials Authorization) number
before you return the product. Grandstream reserves the right to remedy warranty policy without prior
notification.
Warning: Please do not use a different power adaptor with the HT–496 as it may cause damage to the
products and void the manufacturer warranty.
Internet ADSL/Cable
Modem Ethernet
WAN
LAN
FXS
Fax
Cordless Phone
Analog Phone
FXS
Fax
Cordless Phone
Analog Phone
