Page 5
Grandstream Networks, Inc.
HT–496 User Manual
Page 5 of 33
Firmware 1.0.3.64
Last Updated: 1/2007
Installation
E
QUIPMENT
P
ACKAGING
The HT–496 ATA package contains:
• One HT–496 Main Case
• One Universal Power Adaptor
• One Ethernet Cable
C
ONNECTING
Y
OUR
ATA
The HT–496 is easy to configure. The HT–496 has two FXS ports. Each FXS port can have a separate
SIP account. This is a key feature of HT–496. Both ports can make calls concurrently.

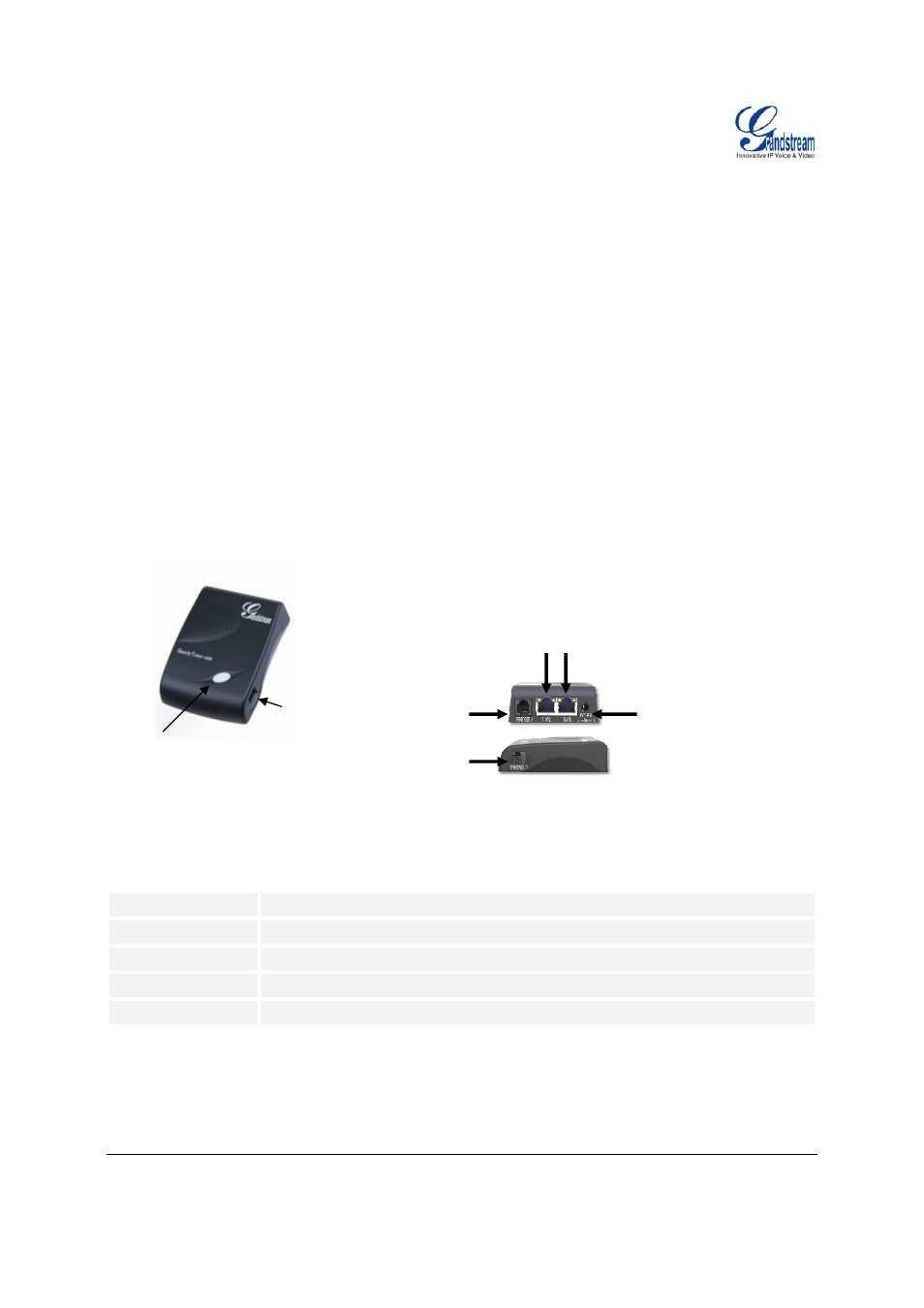

F
IGURE
1:
C
ONNECTING THE
HT–
496
Table 1: Definitions of the HT–496 Connectors
Power Cable
Power adapter connection
WAN Port (RJ-45)
Connect to the internal LAN network or router.
LAN Port (RJ-45)
Connect the LAN port with an Ethernet cable to your PC.
PHONE1 (RJ-11)
Connect analog phone / fax machine to FXS port.
PHONE2 (RJ-11)
Connect analog phone / fax machine to FXS port.
RJ-11
FXS Port
(Phone)
RJ-45
10M Ethernet
LAN/WAN
RJ-11
FXS Port
(Phone)
+5V/1200mA
LED Button
(green/red)
RJ-11
FXS Port
