Operator's Manual
Fourth Edition • Third Printing
Part No. 1000048
Z-34/22 IC
9
CONTROLS

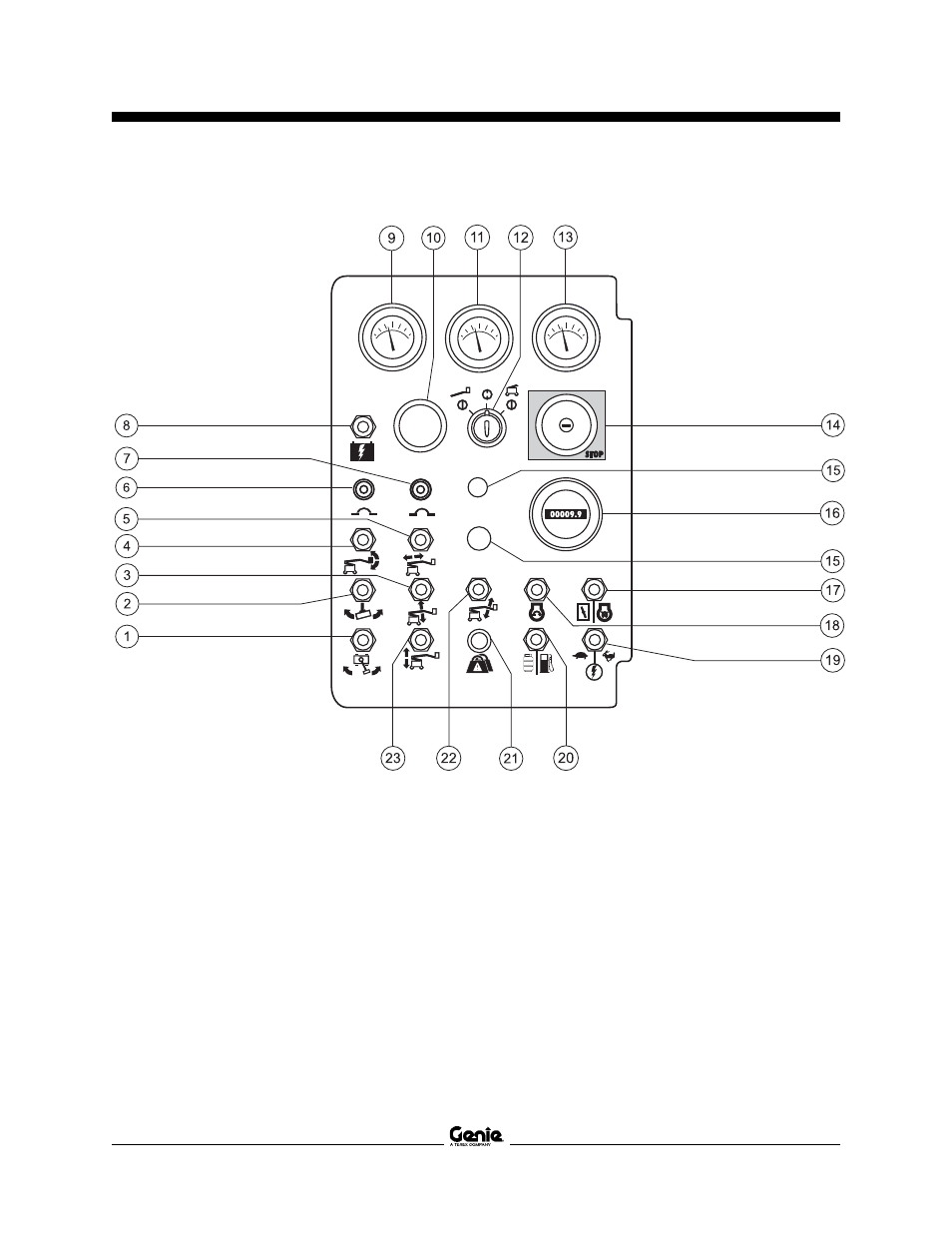

Ground Control Panel
1
Turntable rotate switch
2
Platform rotate switch
3
Primary boom up/down
switch
4
Platform level switch
5
Primary boom extend/
retract switch
6
10A breaker for engine
electrical circuits
7
10A breaker for control
electrical circuits
8
Auxiliary power switch
9
Gasoline/LPG models:
Water temperature gauge
Diesel models: Oil
temperature gauge
10
Travel alarm
11
Oil pressure gauge
12
Key switch for platform/off/
ground selection
13
Voltage gauge
14
Red Emergency Stop
button
15
Not used
16
Hour meter
17
Gasoline/LPG models:
Choke switch
Diesel models: Glow plug
switch (option)
18
Engine start switch
19
Function enable switch
20
Gasoline/LPG models: Fuel
select switch
21
Platform overload indicator
light (if equipped)
22
Jib boom up/down switch
23
Primary boom extend/
retract switch
