Installation Instructions

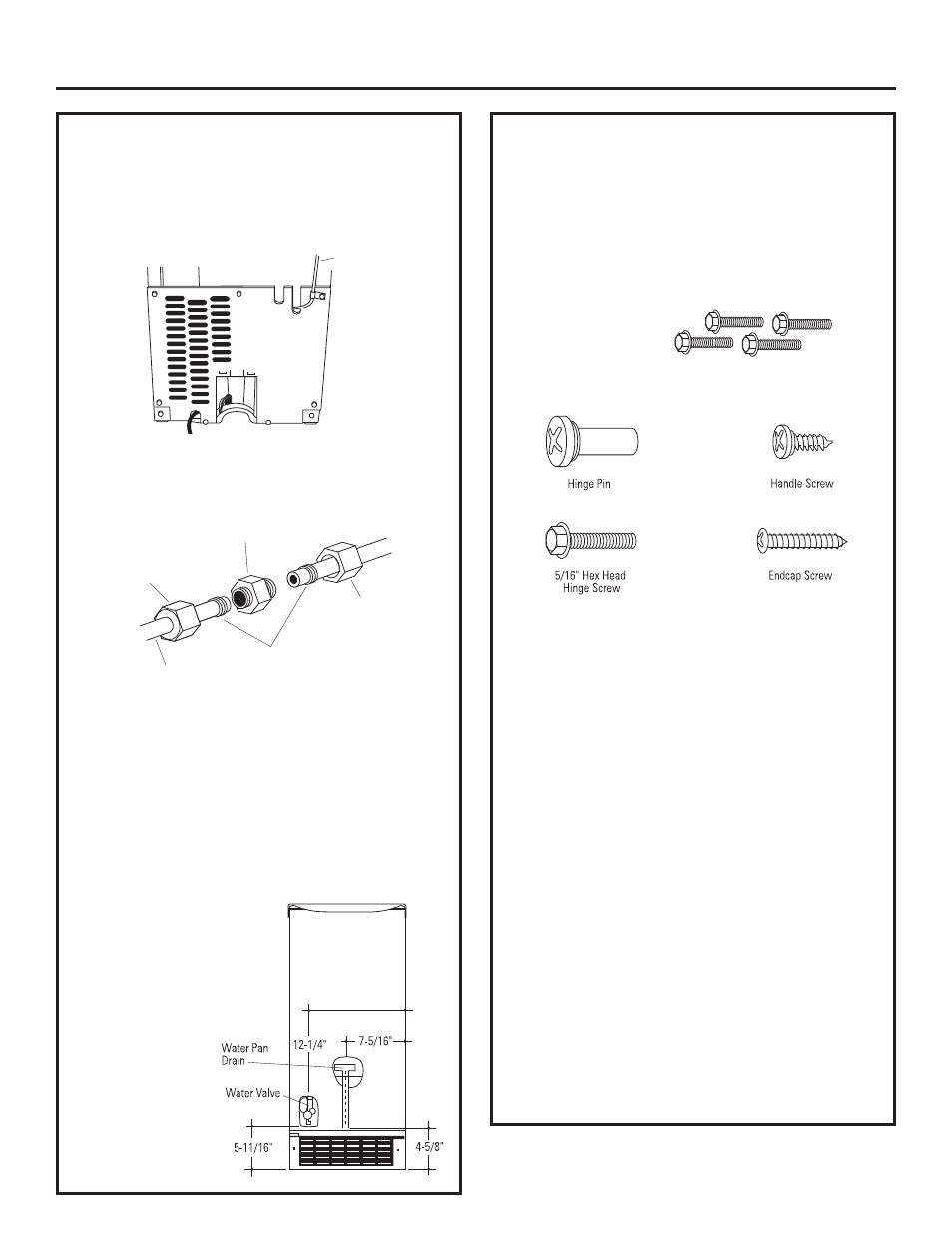

CONNECT WATER SUPPLY
• The water line should be flushed to clear any
foreign material before connecting to the icemaker.
• Connect the water line to the water supply tube
outside of the rear access cover.
Copper Tubing:
• Use a standard plumbing female connector or union
for 1/4" copper tubing that can be purchased locally.
GE SmartConnect ™ Tubing:
• Insert the molded end of the tubing into the
icemaker connection. Tighten the compression
nut until it is just hand tight.
• Tighten one additional turn with a wrench.
Overtightening can cause leaks!
• Make sure there are no sharp bends or kinks that
could restrict water flow.
• Slide the icemaker into its permanent location.
• To prevent rattling,
be sure the copper
tubing does not
touch the side wall
or other parts
inside the cabinet.
• Open the shut-off
valve. Check for
leaks. Tighten
any connections
(including
connections
at the valve)
if necessary.
Water
Supply
Line
REVERSE THE DOOR SWING
IMPORTANT:
Disconnect power to the icemaker.
Tools Required:
• 1/4" and 5/16" wrench
• Flat putty knife
• Phillips screwdriver
Parts Supplied:
• 4 hinge screws
(on some models)
Parts Identification: (For Reference Only)
Remove door handle (black models):
• Remove the handle.
• Remove the handle screws and lift off handle.
Remove the door (all models):
• Re move the hinge pin from the top hinge.
• Lift the door off of the bottom hinge. Place the
hinge pin back into the top hinge.
For stainless steel model:
• Remove two screws each from the top and
bottom of the stainless steel door skin.
• Remove the door skin and edge protectors from
the door.
Reverse the door endcaps (all models):
• Remove the screws and endcaps from the door,
top and bottom.
• Place the top endcap onto the bottom of the
opposite side of the door with the long flat side
facing the door front.
• Place the bottom endcap onto the top of the
opposite side of the door, with the long flat side
facing the door front.
• Set the door aside.
Coupling
(Not Supplied)
Nut
(Supplied)
Ferrule
(Not Supplied)
Line to
Icemaker
Nut
(Supplied)
