Design Information
MODELS AVAILABLE
ZDIC150, ZDIS150
Available in black and stainless steel. The icemaker may be installed below a countertop
or used free-standing.

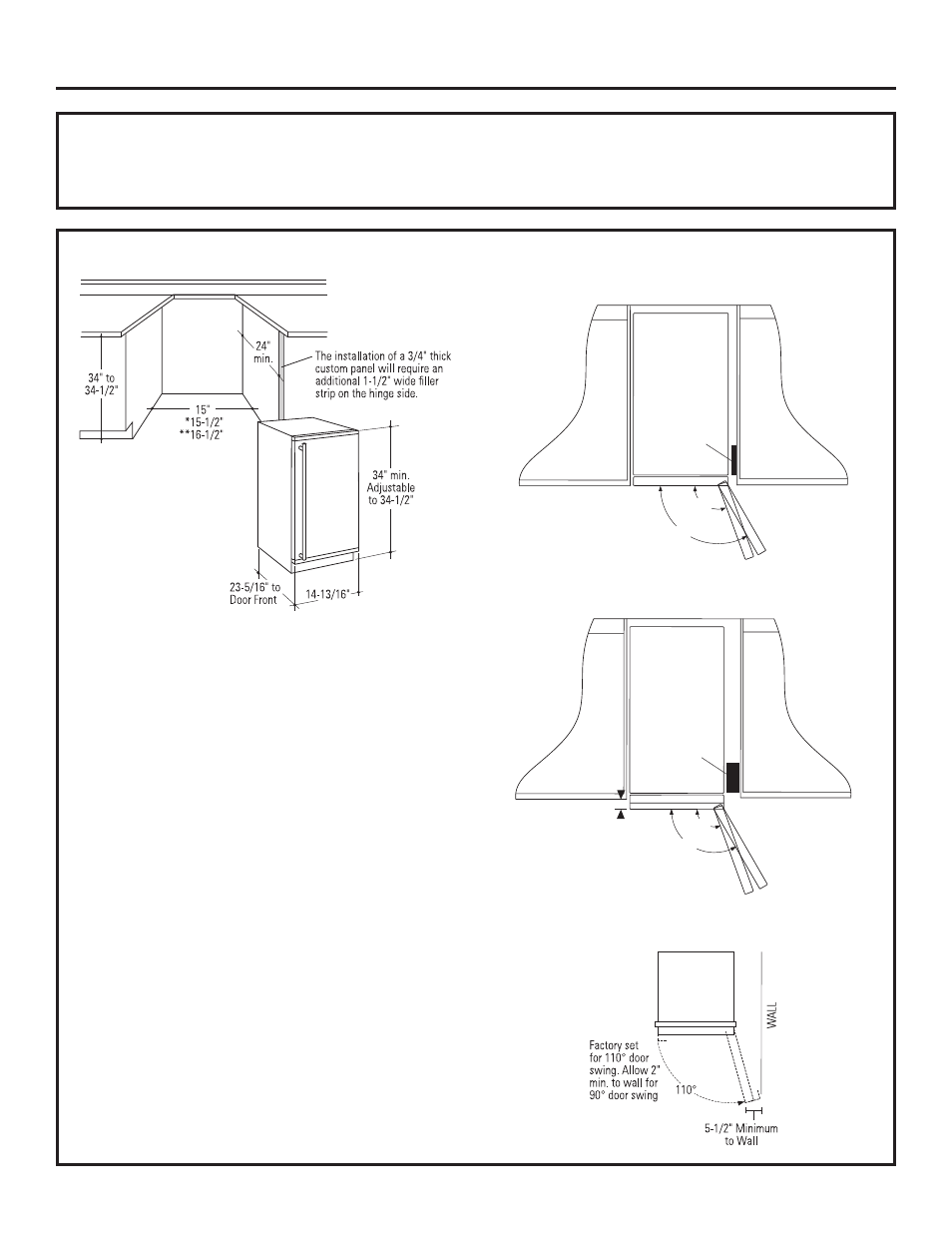

CUTOUT & PRODUCT DIMENSIONS
*For flush installation of ZDIS150 and ZDIC150 models: Install
a 1/2"-wide filler strip on the hinge side. The filler strip will act as
a spacer between the door case and adjacent cabinets and will
prevent interference with the cabinet door swing. Recess the
filler strip 1" back from the front face of the icemaker, or even
with the front edge of the product case. The width of the
opening must be 15-1/2" (including the 1/2" filler strip).
**The black model ZDIC150 with a custom panel cannot
be installed flush. A 1-1/2"-wide filler strip is required on the
hinge side. The icemaker will project forward 3/4" of adjacent
cabinets. Recess the filler strip 1-3/4" back from the front face
of the icemaker or even with the front edge of the product case.
The width of the opening must be 16-1/2" wide, including the
1-1/2" filler strip.
Cutout dimensions shown allow for a full door swing.
3
CABINET CABINET
120°
110°
3/4”
Custom Panel Installation, Top View
Corner Installation
1-1/2”-wide filler
panel or cleat set
back even with
front of case.
CABINET CABINET
1/2”-wide filler
panel or cleat set
back even with
front of case.
120°
110°
Flush Installation, Top View
