Installation Instructions for ZIP75BB Kit
10
NOTE: If installing a 3/4" trimless custom panel,
a 1-1/2" wide filler strip may be required. The filler
strip will act as a spacer between the icemaker
case and the adjacent cabinet, and will prevent
interference with the icemaker door swing when
it is installed between frameless or framed
cabinetry. The width of the cutout opening must
include the width of the filler strip. The product
cannot be installed flush to adjacent 24" deep
cabinets with a 3/4" thick custom panel.

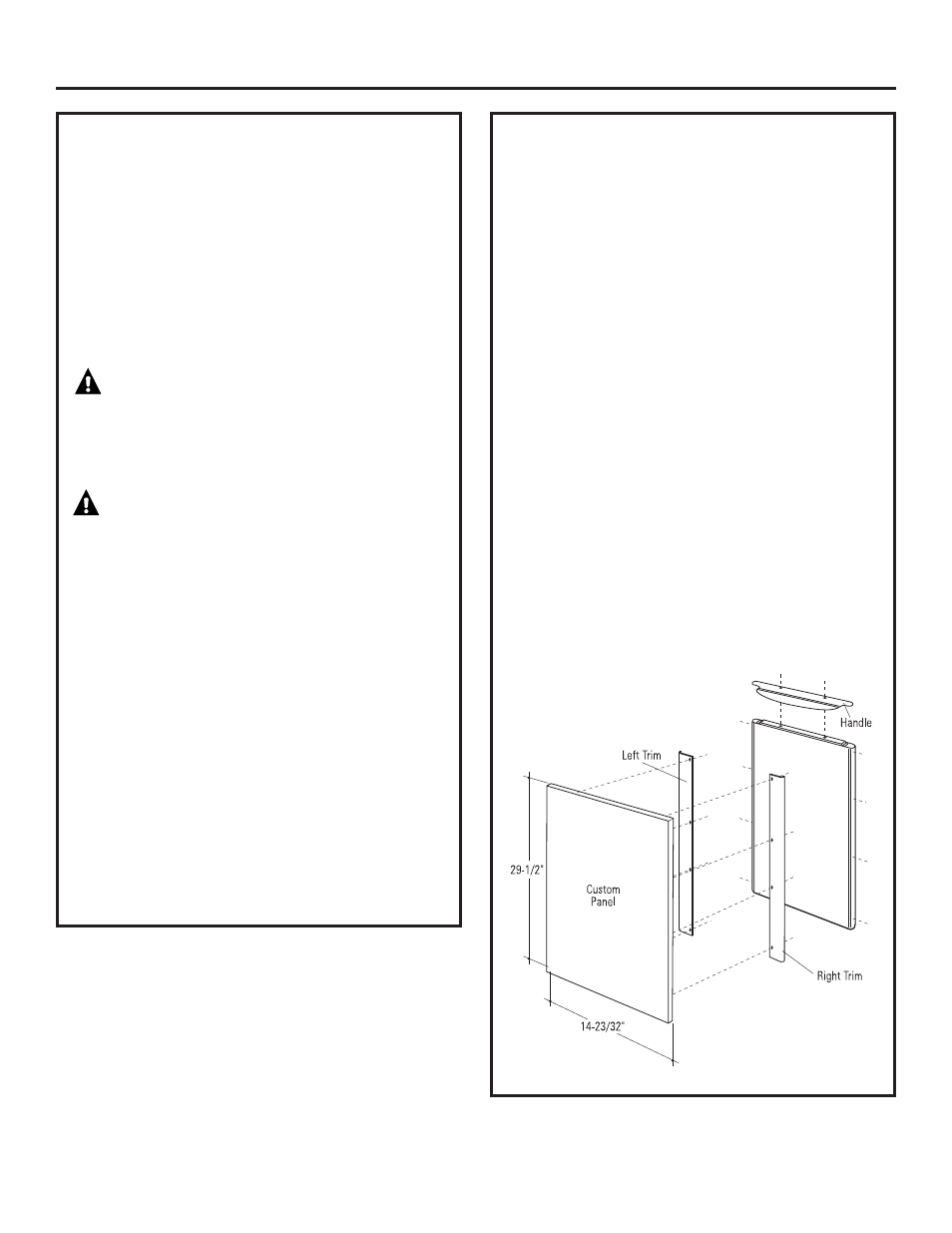

This kit contains a new handle and two side
mounting brackets to support a trimless custom
door panel up to 3/4" thick. A custom handle
may replace the supplied handle.
IMPORTANT:
• Cut edges of the custom door panel will be seen
and must be finished for best ap pear ance. The
back side of the panel should be finished a
minimum of 1/2" on all sides.
• The custom panel, both raised and flat design,
should be con struct ed in the same manner
as typical cabinet doors.
• Order the custom panel from the cabinet
manufactur er. Be sure to provide the exact
dimensions so that the panel is con struct ed
accurately.
• BEFORE YOU BEGIN:
Read these instructions completely and carefully.
• IMPORTANT:
Save these instructions for local inspector’s use.
• IMPORTANT:
Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions
with your Owner’s Manual for future reference.
WARNING:
Disconnect electrical power supply to icemaker
before installing front panel. Do not operate icemaker
while installing panel. Failure to do so can result in
death, fire, or electrical shock.
AVERTISSEMENT :
Il faut debrancher l’alimentation de la machine
à glaçons avant d’installer le panneau avant.
La machine à glaçons ne doit pas être en marche
pendant l’installation du panneau avant. Le
non-respect de ces instructions peut causer
la mort, un incendie ou un choc électrique.
Kit Contents:
• 2 side trim pieces
• 8 side trim screws
• Door handle
Tools and Materials Required:
• 8 flat head wood screws, 1/2" long
• Drill and 1/8" bit
• Safety glasses
• Tape
• Custom panel
