Model G0642 15-Bit Line Boring Machine

-33-

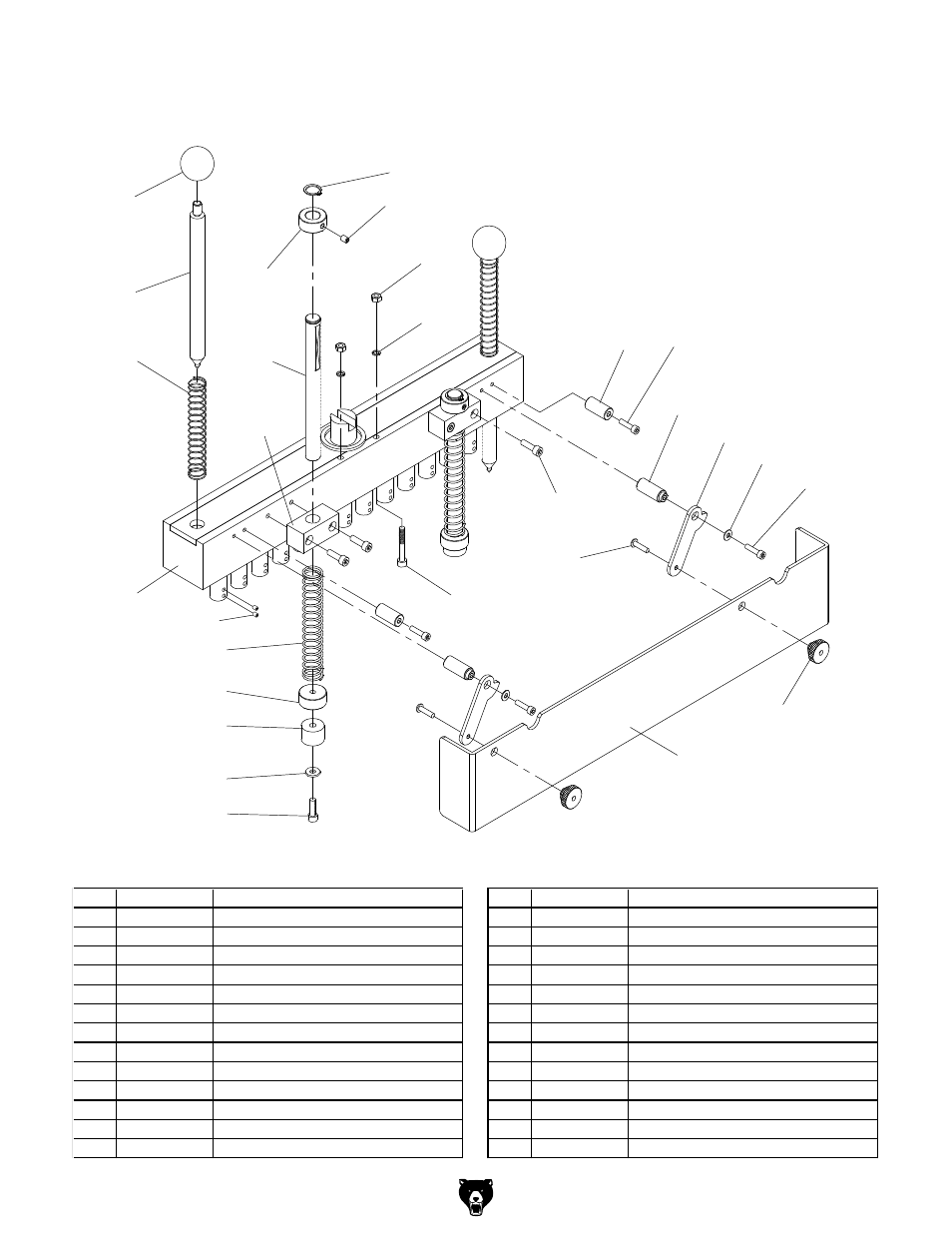

Boring Head Breakdown & Parts List

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

REF PART #

DESCRIPTION

REF PART #

DESCRIPTION

301

P0642301

INDEXING PIN KNOB

315

P0642315

BUSHING

302

P0642302

INDEXING PIN

316

PSB79M

CAP SCREW M5-.8 X 35

303

P0642303

INDEXING COMPRESSION SPRING

317

P0642317

BUSHING

304

P0642304

BORING HEAD ASSY

318

PSB07M

CAP SCREW M6-1 X 30

305

P0642305

HOLDDOWN COMPRESSION SPRING

319

PSB118M

BUTTON HD CAP SCR M5-.8 X 20

306

P0642306

COLLAR

320

PSB167M

CAP SCREW M6-1 X 70

307

P0642307

HOLDDOWN PAD

321

PLW03M

LOCK WASHER 6MM

308

PSB02M

FLAT WASHER 6MM

322

PN01M

HEX NUT M6-1

309

PSB02M

CAP SCREW M6-1 X 20

323

PSS99M

SET SCREW M6-1 X 5

310

P0642310

BORING HEAD GUARD

324

PR06M

EXT RETAINING RING 16MM

311

P0642311

GUARD RETAINER

325

P0642325

LOCK COLLAR

312

PSB109M

CAP SCREW M5-.8 X 50

326

P0642326

HOLDDOWN ROD

313

PW02M

FLAT WASHER 5MM

327

P0642327

HOLDDOWN BRACKET

314

P0642314

PIVOT BRACKET

328

PSS07M

SET SCREW M5-.8 X 5
