Grizzly Line Boring Machine G0642 - Manual (Page 5)

-32-
Model G0642 15-Bit Line Boring Machine

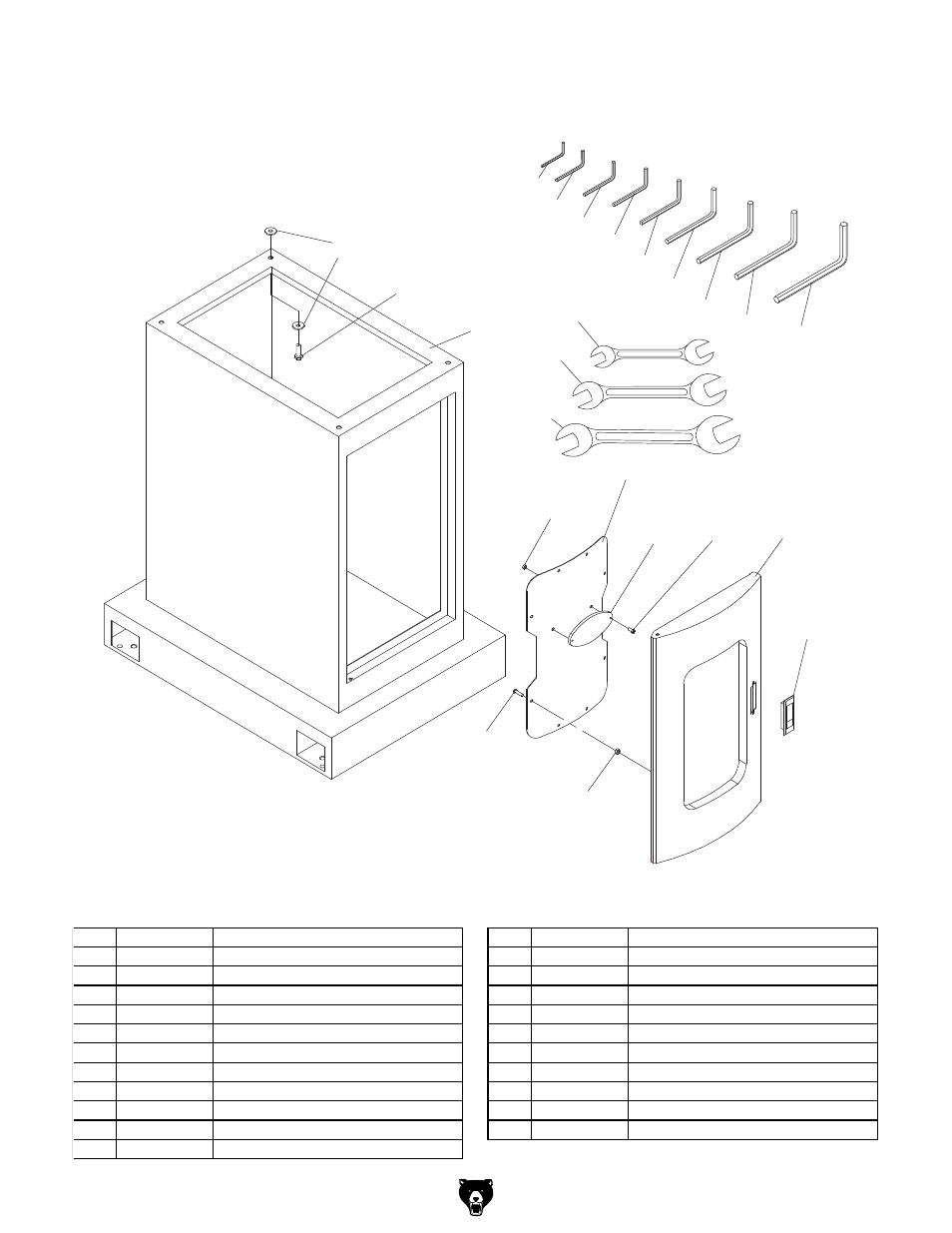

Cabinet & Tools Breakdown & Parts List
���
���
���
���
��� ��� ���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 PW01M FLAT WASHER 8MM 213 PAW08M HEX WRENCH 8MM
202 PB03M HEX BOLT M8-1.25 X 16 214 PAW06M HEX WRENCH 6MM
203 P0642203 CABINET 215 PAW05M HEX WRENCH 5MM
204 P0642204 COVER 216 PAW04M HEX WRENCH 4MM
205 P0642205 GRIZZLY LOGO PLATE 217 PAW03M HEX WRENCH 3MM
206 PS02M PHLP HD SCR M4-.7 X 12 218 PAW02.5M HEX WRENCH 2.5MM
207 P0642207 DOOR 219 PAW02M HEX WRENCH 2MM
208 P0642208 DOOR LATCH 220 PAW01.5M HEX WRENCH 1.5MM
209 PS08M PHLP HD SCR M5-.8 X 12 221 PWR1719 COMBO WRENCH 17/19MM
210 PN04M HEX NUT M4-.7 222 PWR1214 COMBO WRENCH 12/14MM
211 PN06M HEX NUT M5-.8 223 PWR810 COMBO WRENCH 8/10MM
212 PAW10M HEX WRENCH 10MM
