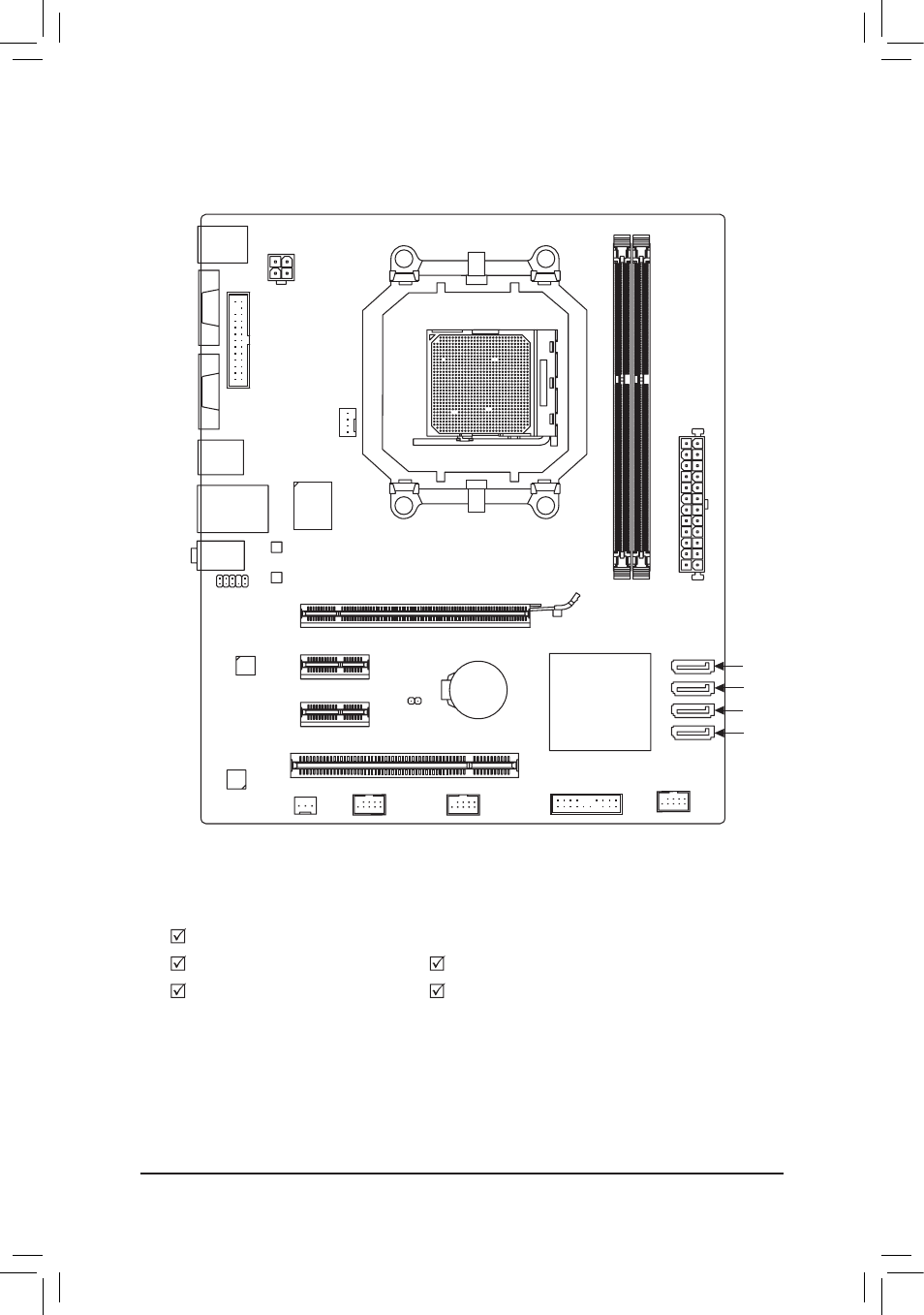

GA-M68MT-D3P/GA-M68MT-S2P Motherboard Layout
KB_MS
CPU_FAN
Socket AM3+
ATX
GA-M68MT-D3P
GA-M68MT-S2P
F_AUDIO
AUDIO
PCIEX16
DDR3_1 DDR3_2
ATX_12V
NVIDIA ® GeForce
7025/nForce 630a
SATA2_2
SATA2_3
SATA2_1
SATA2_0
COMA
CODEC
BAT
VGA
USB LAN
PCI
F_USB1
M_BIOS
F_PANEL
Realtek
RTL8211CL
B_BIOS
iTE
IT8720
F_USB2
PCIEX1_1
R_USB
CLR_CMOS
SYS_FAN
PCIEX1_2
F_USB3
LPT
"*" The GA-M68MT-D3P adopts All-Solid Capacitor design.
Box Contents
GA-M68MT-D3P or GA-M68MT-S2P motherboard
Motherboard driver disk User's Manual
I/O Shield Two SATA cables
The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
