CHANGING THE ENGINE
AIR CLEANER

4.4.1 7, 13, AND 16KW GENERATORS

See Figures 1.1 and 1.2, for the location of the air
cleaner. Use the following procedures (Figure 4.6,
7kW; Figure 4.8, 13/16kW):

1. Lift the roof and remove the door.
2. Turn the two screws counterclockwise to loosen.
3. Remove the cover and air filter.
4. Wipe away dust or debris from inside of the air

box and around edges.

5. Install the new air cleaner into the air box.
6. Install the cover. Turn the two cover screws clock-

wise to tighten.

See the Service Schedule section for air cleaner main-
tenance. See the Specifications section for air filter
replacement part number.

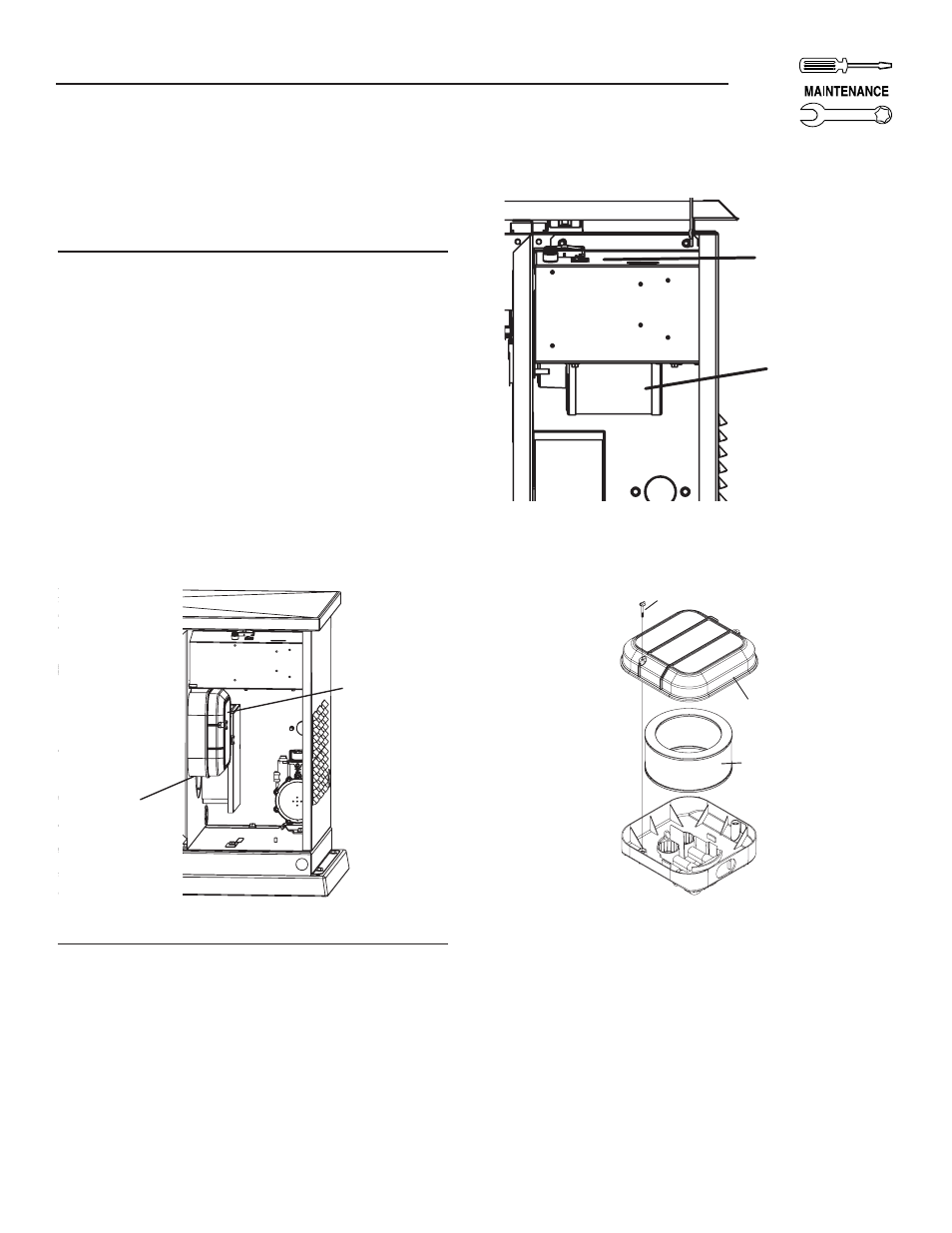

Figure 4.6 — 7 kW, Engine Air Cleaner Location

Air
Cleaner

3/4”
Hole

4.4.2 10KW

GENERATORS

See Figure 1.2 for the location of the air cleaner. Use
the following procedure (Figure 4.7):

1. Lift the roof and remove the door.
2. Turn the worm gear clamp screw counterclock-

wise to loosen.

3. Pull the old filter off the divider panel hub.
4. Wipe away dust or debris from the panel hub.
5. Install the new air cleaner onto the hub.
6. Turn the worm gear clamp screw clockwise to

tighten.

7. Replace door and roof.

‹

‹

Figure 4.7 — 10kW Engine Air Cleaner

Air Filter

Control
Panel

Figure 4.8 — 13 kW and 16 kW Engine

Air Cleaner

Cover

Filter

Screw

4.5 SPARK

PLUG(S)

Reset the spark plug(s) gap or replace the spark
plug(s) as necessary. See the Service Schedule section
for maintenance requirements.

1. Clean the area around the base of the spark

plug(s) to keep dirt and debris out of the engine.

2. Remove the spark plug(s) and check the condi-

tion. Replace the spark plug(s) if worn or if reuse
is questionable. See the Service Schedule section
for recommended inspection. Clean by scraping
or washing using a wire brush and commercial
solvent. Do not blast the spark plug(s) to clean.

Section 4 — Maintenance

Air-cooled Generators
