SECTION 4: OpERATIONS
NOTICE
If you have never used this type of machine
or equipment before, WE STRONGLy REC-
OMMEND that you read books, review
industry trade magazines, or get formal
training before beginning any projects.
Regardless of the content in this section,
Grizzly Industrial will not be held liable for
accidents caused by lack of training.
Loose hair, clothing, or
jewelry could get caught
in machinery and cause
serious personal injury.
Keep these items away
from moving parts at all
times to reduce this risk.
To reduce the risk of
serious injury when using
this machine, read and
understand this entire
manual before beginning
any operations.
Damage to your eyes or face could result
from using this machine without proper pro-
tective gear. Always wear safety glasses or a
face shield when operating this machine.
basic Controls
refer to figure 12 and the following descriptions
to understand the basic controls of your mill.
A. power Lamp: Lights when there is power to
the machine.
b. Direction Switch: Controls the direction of
spindle rotation.
C. Digital Speed Readout: displays the spindle
speed in revolutions per minute (rpm).
D. Speed Dial: Controls the spindle speed.
E. Stop button: turns the spindle OFF. you
must twist this button clockwise so that it
pops out before restarting the spindle with the
on button.
Note: Pressing this button DOES NOT
DISCONNECT MILL FROM POWER.
f. ON button: turns the spindle ON when
there is power to the machine and the stop
button is not pushed in.

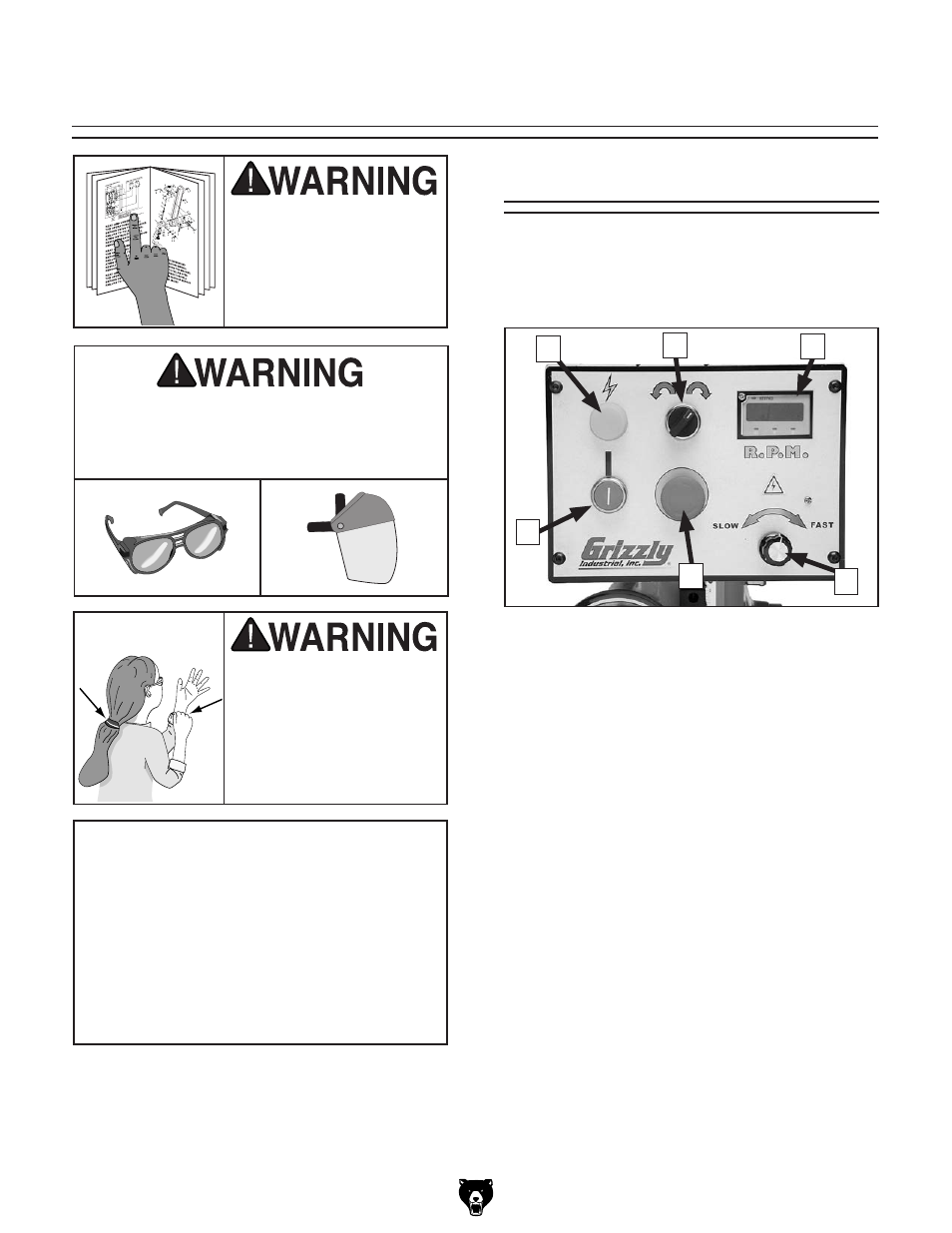

figure 12. Control panel.
a
B C
F
E
d
Control panel
