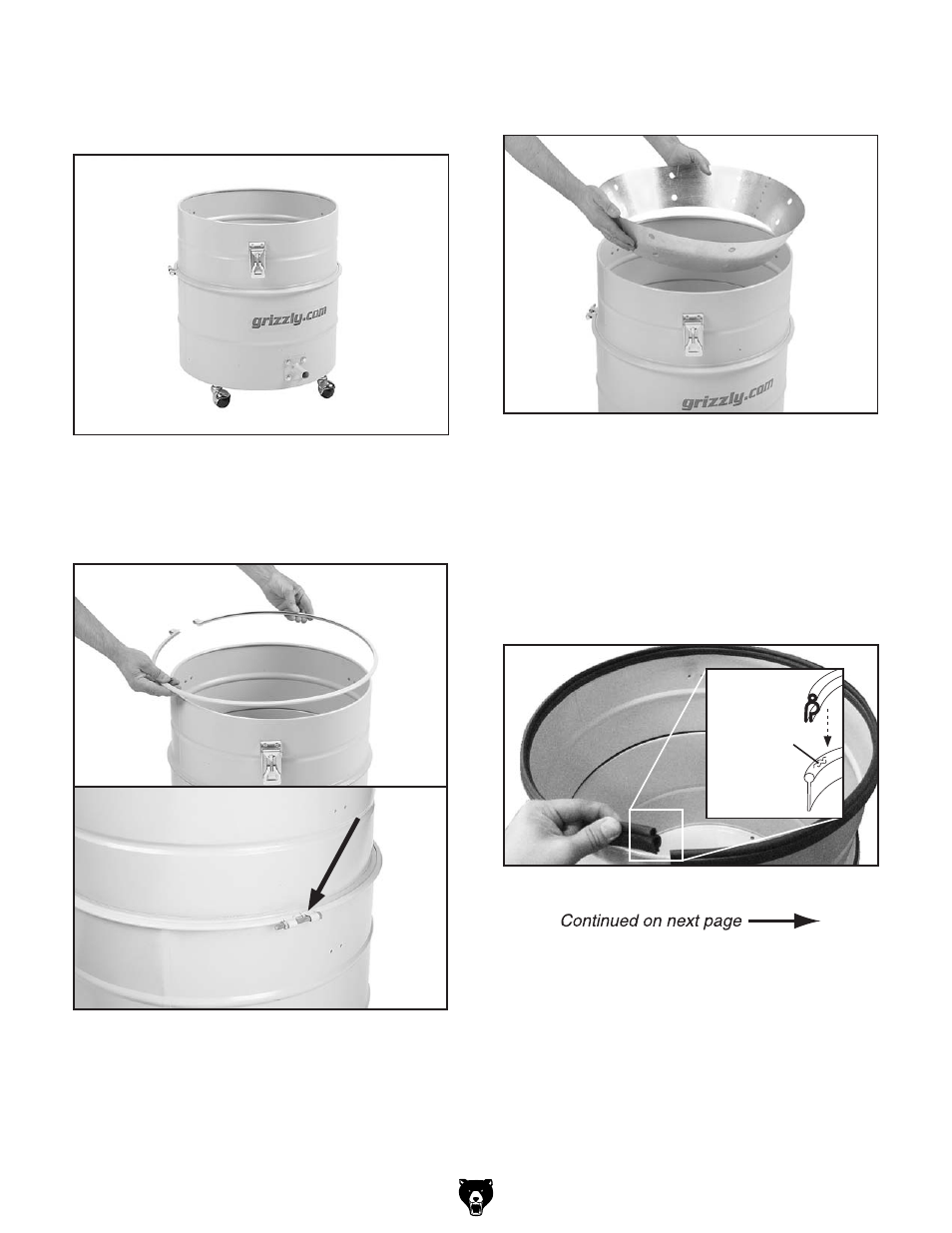

figure 17. installing the dust collection bag seat.
16. place the dust bag seat into the duct collec-
tion drum as illustrated in figure 17.
15. Secure the drum extender to the drum with
the drum clamp ( figure 16), and tighten the
clamp with a 1 ⁄
2
" wrench.
figure 16. installing drum extender with the
drum clamp.
figure 15. drum extender and spout alignment.
14. place the drum extender onto the drum so
one latch is oriented with the drum spout as
shown in
figure 15.
17. insert the rubber seal over the top lip of the
drum rim ( figure 18). pay special attention
to the direction of the seal also shown in the
figure.
Tip: To keep the seal in place, you can use
an adhesive applied to the rubber seal 10cm
intervals.
figure 18. installing canister seal.
Seal
drum
rim
optional
Adhesive
