-16- G1021Z 15" Planer

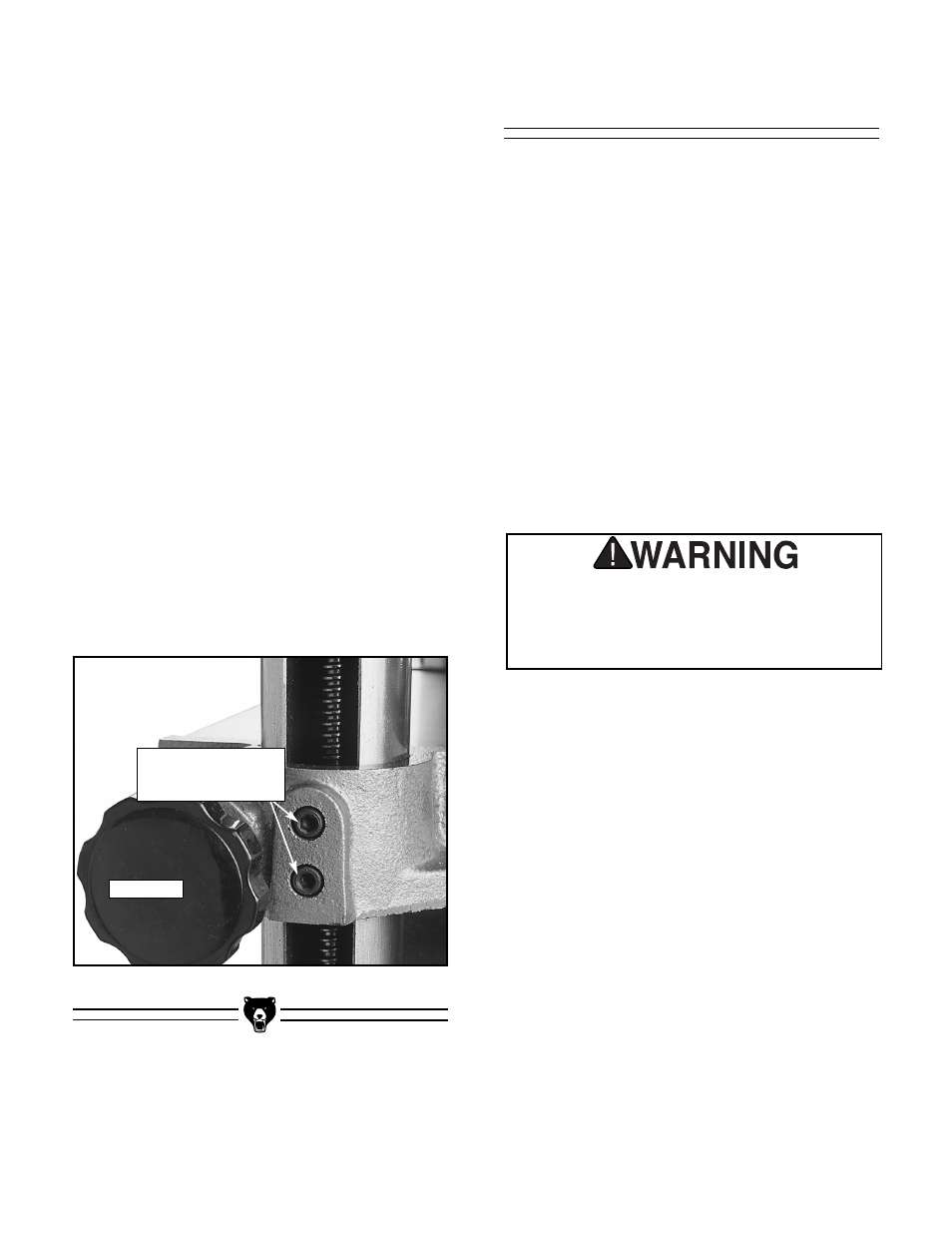

Figure 12. Cap screws for column adjustment.
If the gap difference from one side to the other is
greater than 0.004", but less than 0.016", go to
step 5.
If the gap difference from one side to the other is
greater than 0.016", the table raising chain under
the planer base will need to be adjusted. Please
call our Customer Service number for chain
adjustment instructions.
To adjust for gap differences of less than 0.016":
5. Determine which side of the table must be
raised to correct the gap.
6. Locate the two cap screws in the table cast-
ing for each of the columns. See Figure 12.
Loosen both sets of cap screws for each
column on the side you wish to adjust.
7. Push down or pull up the table in the
desired direction. Hold the table in position
and retighten the cap screws.
8. Recheck the table to cutterhead parallelism
again. Repeat steps 1 through 7 until the
deviation is less than 0.004".
Lock Knob
Loosen these cap
screws to micro adjust
the table height
Notes
Planer knives are dangerously sharp. Use
extreme caution when inspecting, removing,
sharpening, or replacing knives into the cut-
terhead. Substantial risk of injury!
