18

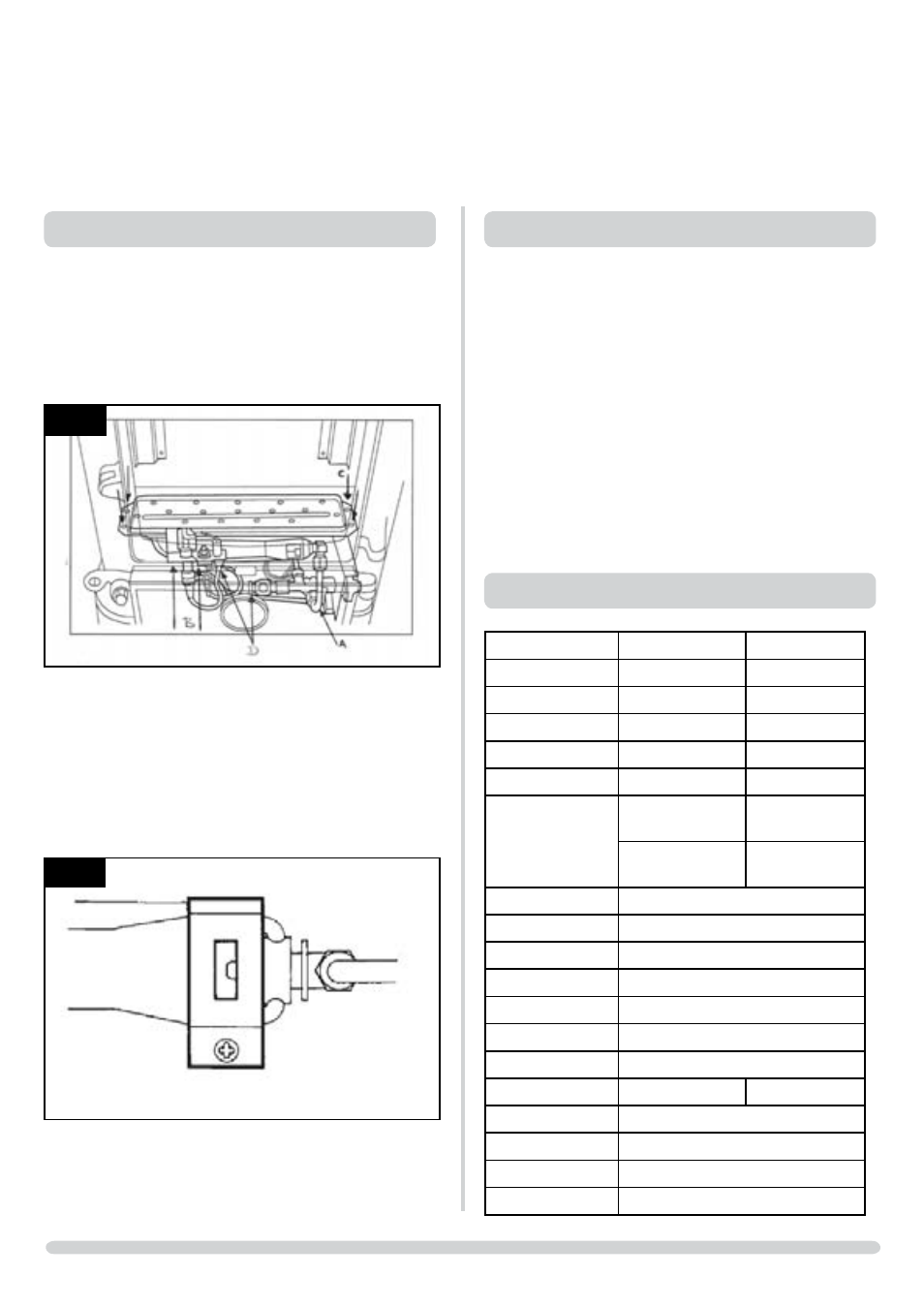

8. PRIMARY AERATION PLATE
8.1 • Turn the gas supply off at the isolation device.
8.2 To open the doors:
• Slacken the domed nut on the upper door and loosen
the bolt from behind the latch
8.3 • Remove the two screws securing the pilot unit and undo
the injector nut, Diagam 6,B
AR0895
6
• Remove the four fixing screws and withdraw the burner
unit, Diagram 6,C
8.4 The aeration plate is located on the rear of the venturi: •
• Remove the fixing screw and replace with the correct
plate
When replacing the plate:
• Ensure the lower edge is hooked over the flange of the
venturi., Diagram 7,
AR0766
7
8.5 • Replace the burner, ceramic components and check for
leaks
• Close the doors and lock the bolts and nuts
9. CHANGING BETWEEN GAS TYPES
In order to change between gas types, it will be necessary to
change the following items:
Burner Unit
Pilot Unit
Control Valve
Injector
Aeration Plate
Databadge
The relevant parts can be ordered from the parts list, always
quote the appliance type and serial number when ordering
spare parts.
*NOTE: THE CONTROL VALVE IS FACTORY PRESET FOR
CORRECT GAS TYPE AND MODEL, A NEW UNIT WILL
NEED TO BE ORDERED WHEN CHANGING BETWEEN
GAS TYPES.
10. SHORT SPAES LIST
APPLIANCE 8050 P8050
NG LPG
COMPONENT
BURNER UNIT GZ3279 GZ3278
PILOT UNIT PI0047 PI0048
INJECTOR
IN0001 IN0003
AERATION PLATE
G20
GZ3269(C)
G30 N/A
G25
GZ3270(D)
G31
GZ2003(A)
GAS VALVE GC0056*
FLUE SENSOR EL0001
SENSOR LEAD EL0064
INTERRUPTOR GC0026
MAG UNIT GC0016
PIEZO/IGN. UNIT GC0062
GAS FILTER GC0065
BURNER COVER CE0358 CE0359
REAR PANEL CE0357
FUEL BED CE0356
COAL SET CE0284
DATA BADGE PR0397
SERVICING INSTRUCTIONS
REPLACING PARTS
