Grizzly T10048 - Manual (Page 3)

t10048 Collet/tooling Cart for nt40
-3-
3. slide the middle shelf onto the mounting
flanges of the side panels and secure it in
place with 12 hex bolts and lock nuts, as
shown in
Figure 7.
Note: There are two possible mounting
positions for the middle shelf, as shown in
Figure 6.
4. slide the top shelf over the top of the side
panels, position the handle on one side, as
shown in
Figure 8, then secure the top shelf
and handle in place with 12 hex bolts and
lock nuts.

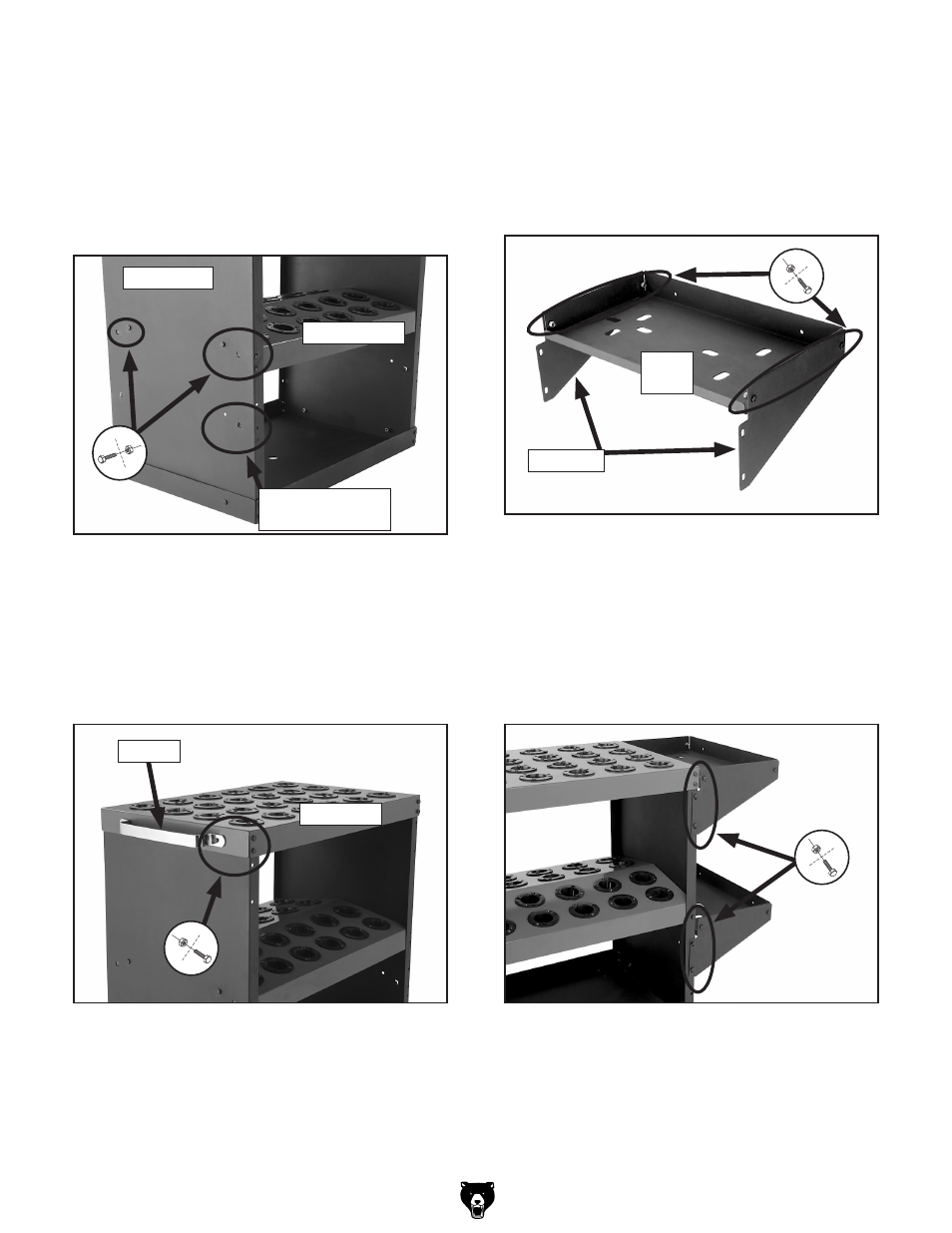

Figure 8. top shelf and handle installed.
top shelf
handle
5. Attach the side shelf supports to the side
shelves with 8 hex bolts and lock nuts, as
shown in
Figure 9. Fully tighten these fasten-
ers.
Note: Take special note of the orientation of
the shelf and supports to one another.
6. Attach the side shelf assemblies to the side of
the cart opposite the handle with 8 hex bolts
and lock nuts, as shown in
Figure 10. Fully
tighten these fasteners.
Note: There are two possible mounting posi-
tions for the bottom side shelf assembly.
Figure 9. side shelf supports installed.
supports
side
shelf
Figure 10. side shelf assemblies installed.
Figure 7. Middle shelf installed onto the side
panels.
Middle shelf
side panel
Lower Mounting
position
