t10048 Collet/tooling Cart for nt40
Inventory
use the following chart and
Figures 3–5 to iden-
tify and inventory the items included with your
shipment.
&
'
(
)

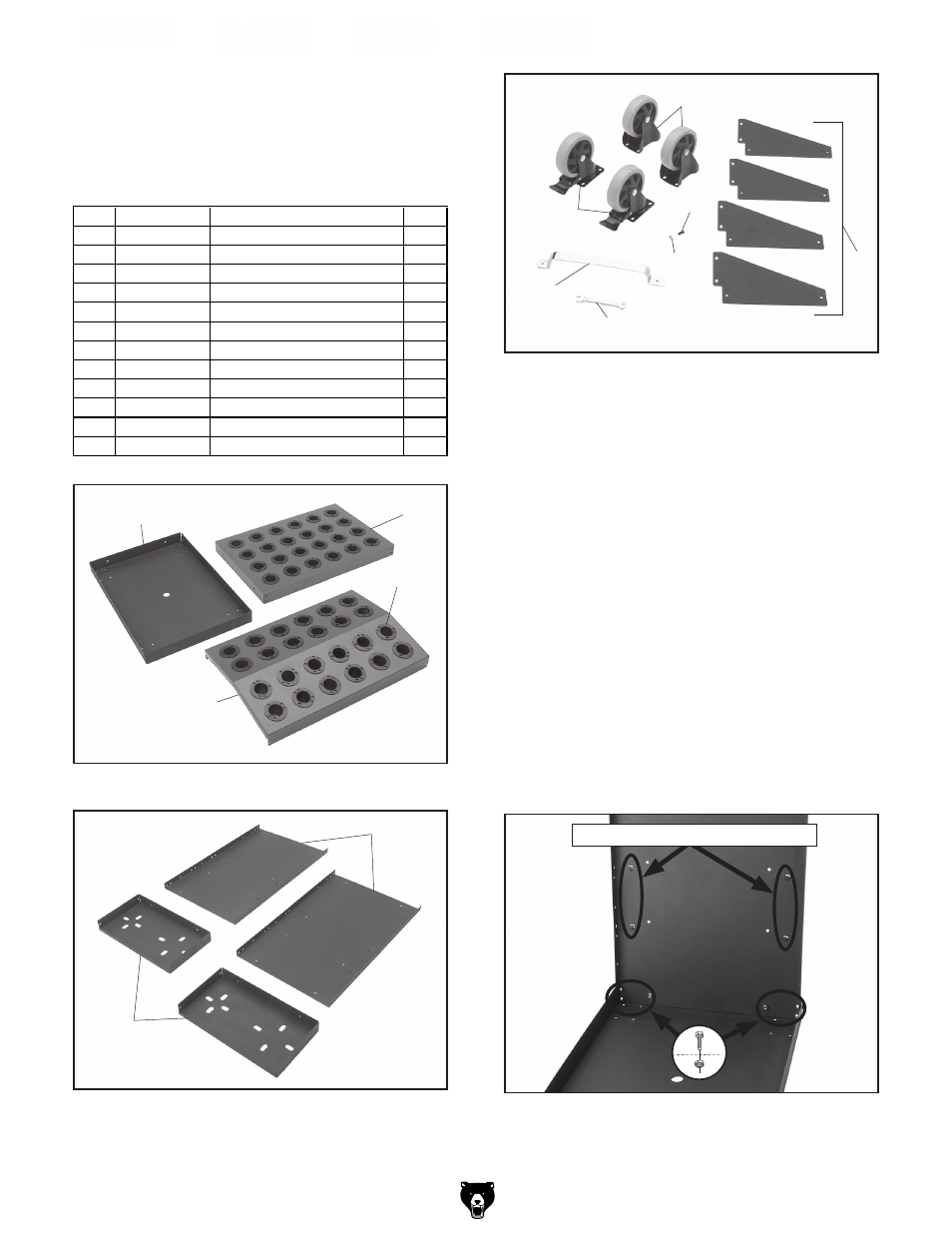

Figure 3. Model t10048 inventory (1).
*
+
Figure 4. Model t10048 inventory (2).
,
-
.
&%
&&
&'
&(
Figure 5. Model t10048 inventory (3).
Assembly
only hand tighten the hex bolts and lock nuts until
the assembly is complete, except where other-
wise instructed. Also, refer to the photographs for
orientation of the items one to another for correct
assembly.
To assemble the cart:
1. Lay the bottom shelf on a flat, stable working
surface.
2. install the side panels inside the flanges of
the bottom shelf, as shown in
Figure 6, using
six hex bolts and lock nuts for each side.
Note: Make sure the middle shelf mounting
flanges on the side panels are pointing up, as
shown in
Figure 6.
Figure 6. side panel installed onto the bottom
shelf.
Middle shelf Mounting Flanges
REF PART #
DESCRIPTION
QTY
1
PT10048001
TOP SHELF
1
2
PT10048002
MIDDLE SHELF
1
3
PT10048003
COLLET HOLDER
48
4
PT10048004
BOTTOM SHELF
1
5
PT10048005
SIDE PANEL
2
6
PT10048006
SIDE SHELF
2
7
PT10048007
SIDE SHELF SUPPORT
4
8
PT10048008
FIXED CASTER 5"
2
9
PT10048009
SWIVEL/LOCK CASTER 5"
2
10
PT10048010
HANDLE
1
11
PB02M
HEX BOLT M6-1 X 12
70
12
PLN03M
LOCK NUT M6-1
70
13
PWR810
COMBO WRENCH 8/10MM
1
&
'
(
)
*
+
,
-
.
&%
&&
&'
&(
