model h0760

red shelf cart–

3 shelves

instructions

recommended tools

Wrench/socket 10mm ....................................... 1
Wrench/socket 17mm ........................................ 1
standard screwdriver ........................................ 1

assembly

1. insert the two handles through the holes at

both ends of the top shelf (see

figure 2).

the Model h0760 is convenient for all around
shop use. this utility cart can tote around tools,
parts or inventory and has a very small foot print.

specifications

Weight .......................................................35 lbs.
load Capacity .........................................220 lbs.
dimensions ....................... 16"W x 29

1

2

"l x 34"h

top shelf height ...........................................31

1

4

"

distance Between shelves............................7

1

2

"

shelf depth ....................................................3

1

2

"

inventory

(

figure 1)

a. top shelf .................................................... 1

b. Center shelf ............................................... 1

c. Bottom shelf ............................................... 1

d. handles ...................................................... 2

e. swivel Casters ............................................ 2

f. locking swivel Casters .............................. 2

g. hardware Bag ............................................ 1

—slotted screws M6-1 x 35..................... 36
—hex nuts M6-1 ...................................... 36
—Flat Washers 6mm ............................... 36
—lock Washers 6mm .............................. 36

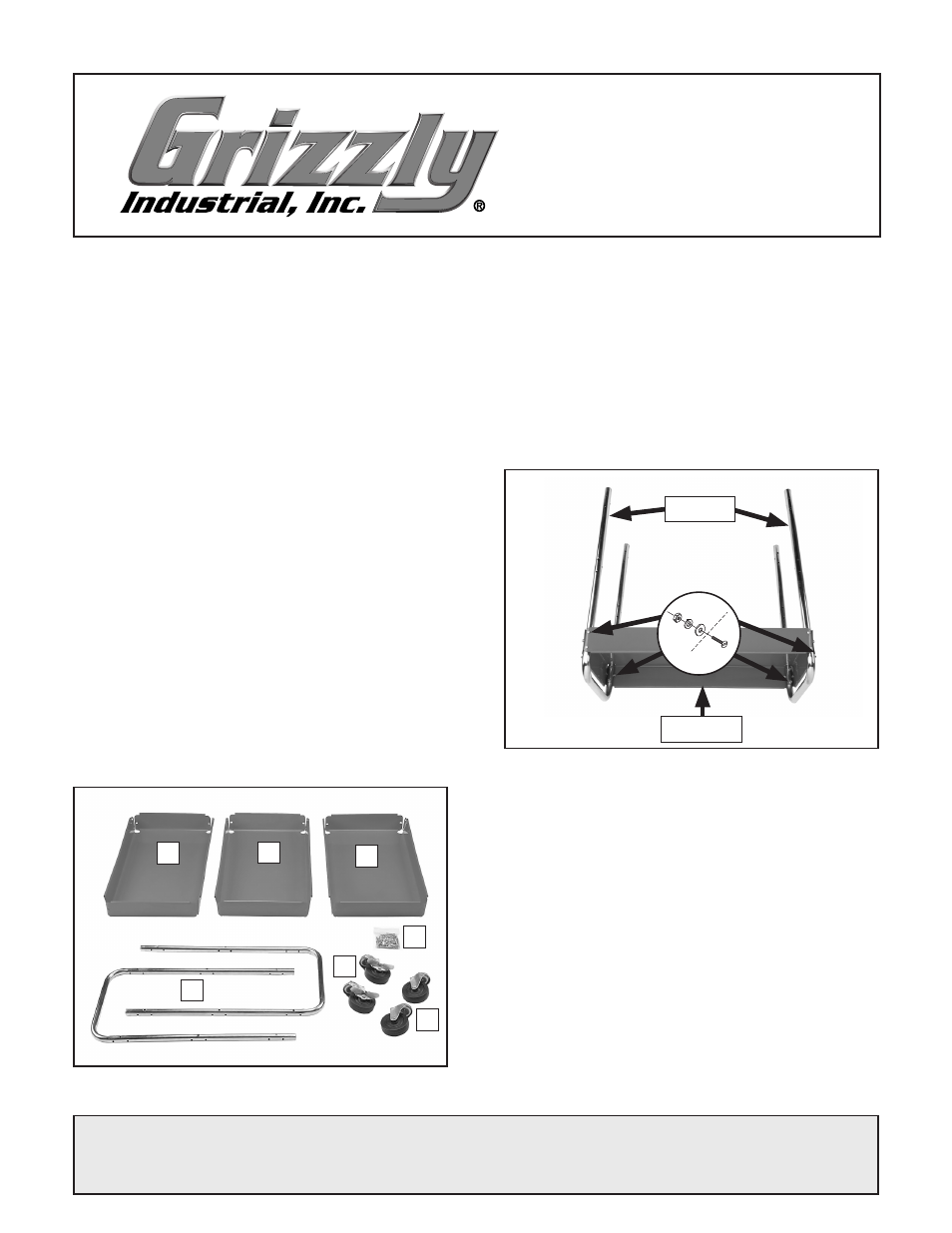

figure 1. h0760 inventory.

C

d

e

F

g

B

a

figure 2. handles secured to top shelf.

2. align the mounting holes in the top shelf and

handles, then fasten with (12) M6-1 x 35 slot-
ted screws, flat washers, lock washers, and
hex nuts (see

figure 2).

position the slotted screws on the shelf exte-
rior and the washers and hex nuts on the
shelf interior. Finger tighten the fasteners for
now.

note: If a shelf is slightly bent, use a small
screwdriver to align the mounting holes in the
shelf and handle.

top shelf

x 12

handles
