Copyright © july, 2008 By grizzly industrial, inC.

Warning: no portion of this manual may be reproduced in any shape

or form Without the Written approval of grizzly industrial, inc.

#Bl10942 printed in China

the Model h0758 is a contemporary looking, low
height cart that has no-slip shelves and a non-
marring "soft" edge.

specifications

Weight .......................................................43 lbs.
load Capacity .........................................270 lbs.
dimensions ....................... 18

1

2

"W x 29"l x 35"h

top shelf height .......................................... 24

1

2

"

distance Between shelves...............................9"

inventory

(

figure 1)

a. Bottom shelf ............................................... 1

b. Center shelf ............................................... 1

c. top shelf .................................................... 1

d. handle ........................................................ 1

e. Columns ..................................................... 8

f. support rods 20" long .............................. 2

g. support rods 20

5

8

" long ........................... 2

h. Flat Washers 10mm ................................... 4

i. Fixed Casters ............................................. 2

J. swivel Casters ............................................ 2

model h0758

3-shelf cart

instructions

recommended tools

Wrench/socket 12mm ....................................... 1
Wrench/socket 17mm ........................................ 1

assembly

1. insert a support rod with a 10mm flat washer

through a mounting hole in the bottom shelf,
then slide a column onto the rod, as shown in

figure 2.

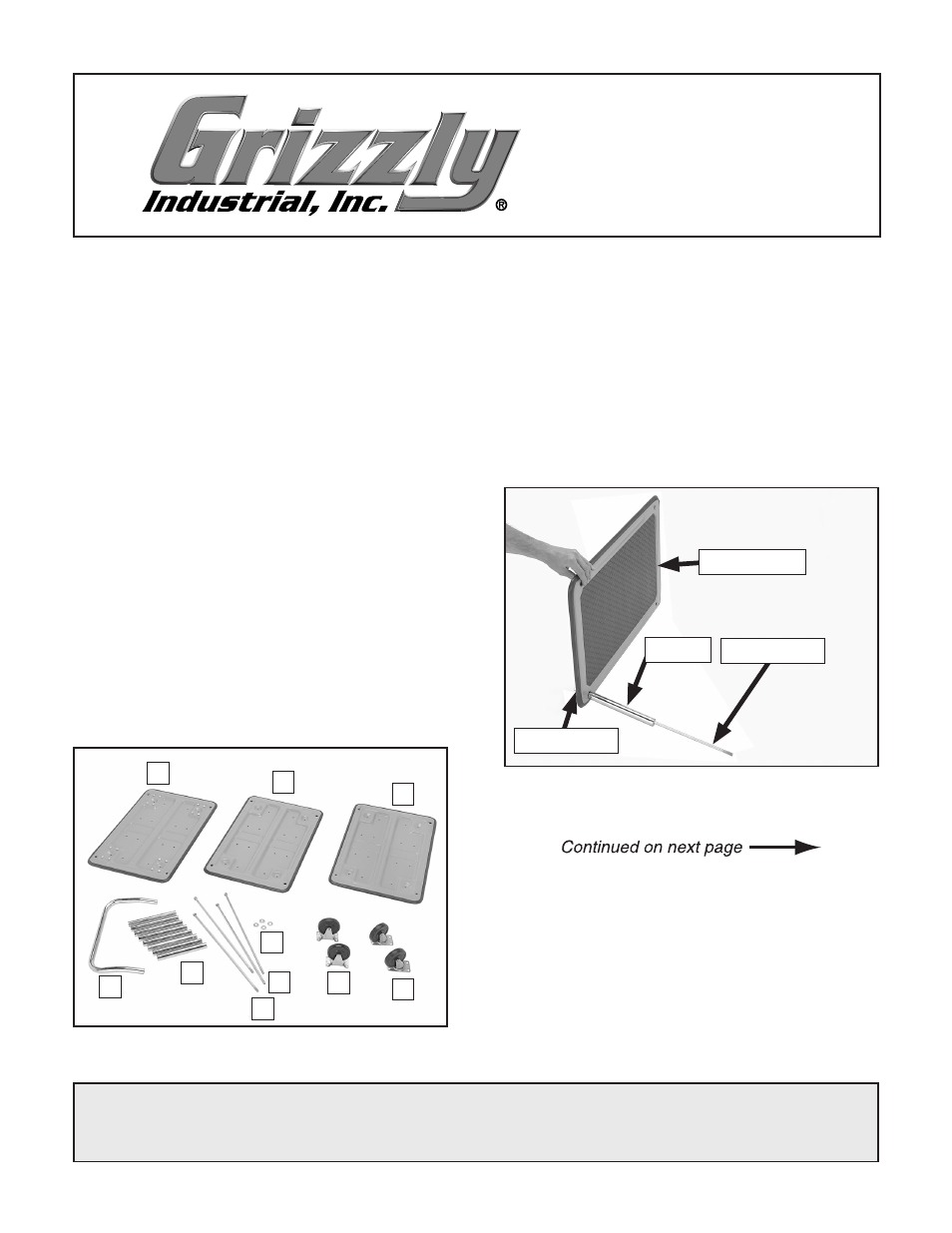

figure 1. h0758 inventory.

figure 2. support rod and column installed onto

bottom shelf.

Bottom shelf

support rod

Column

Flat Washer

a

C

d

e

F

g

h

i

j

B
