- 22 - GA-7VKML Series Motherboard
English

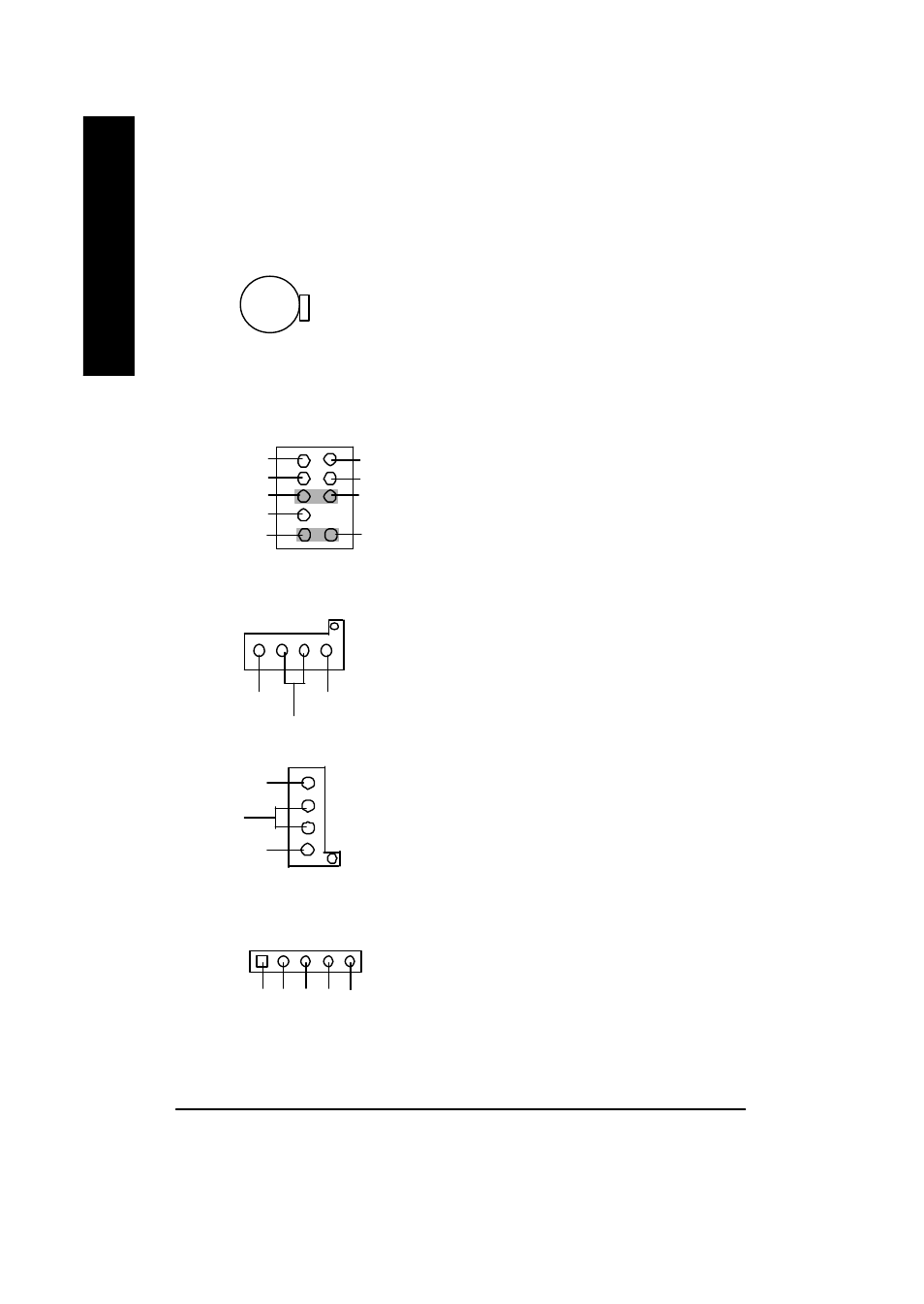

9 ) BAT1 (Battery)
CAUTION
v Danger of explosion if battery is incorrectly
replaced.
v Replace only with the same or equivalent
type recommended by the manufacturer.
v Dispose of used batteries according to the
manufacturer’s instructions.
+
10 ) F_AUDIO (Front Audio) ØIf y ou want to use " Front A udio" connector, you
must move 5-6, 9-10 Jumper. In order to utilize
the front audio header, your chassis must have
front audio connector. A lso please make sure
the pin assigment on the cable is the same as
the pin assigment on the MB header. To find out
if the chassis y ou are buying support front
audio connector, please contact your dealer.
9 10
Front A udio
(L)
1
Reserved
GND
Rear Audio (R)
Rear Audio (L)
Front Audio (R)
2
MIC
REF POWER
11 ) CD_IN (CD Audio Line In)
CD-L
GND
CD-R
1
Ø Connect C D-ROM or DVD-ROM audio out
to the connector.
12 ) AUX_IN (AUX_IN Connector )
AUX-L
GND
AUX-R
1
Ø Connect other device(such as PCI TV Tunner
audio out )to the connector.
13 ) IR (IR)
Ø Please note, Be careful with the polarity of
the IR connector while you connect the IR.
Please contact you nearest dealer for optional
IR device.
1
VCC(+5V)
NC
IR data input
IR data output
GND
