Step 1: Install the Central Processing Unit (CPU)
Step1-1: CPU Speed Setup

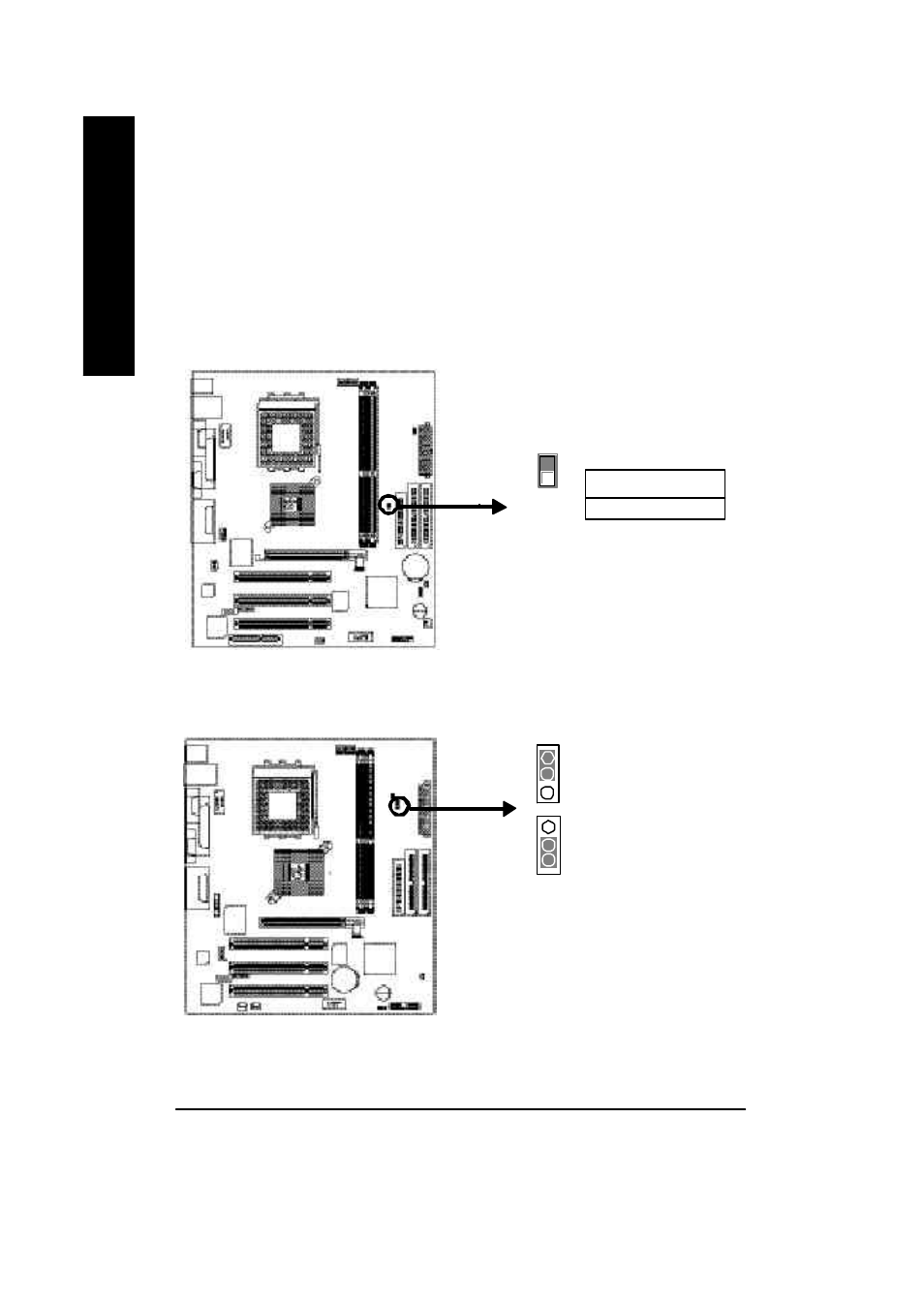

The sy stem bus frequency can be switched at 100/133MHz by adjusting C LK_SW.
(The frequency ratio depend on C PU.)
Default S etting: 100MHz
1
ON
CLK_SW
CLK_SW
OFF: 133MHz
ON: 100MHz
PCB Ver: 1.1 used
PCB Ver: 3.2 ~ 3.4 used
The sy stem bus frequency can be switched at 100/133MHz by adjusting C LK_JP.
(The frequency ratio depend on C PU.)
1-2 close: 100 MHz
2-3 close: 133 MHz
1
1
Default S etting: 100MHz
