Hardware Installation Process - 11 -

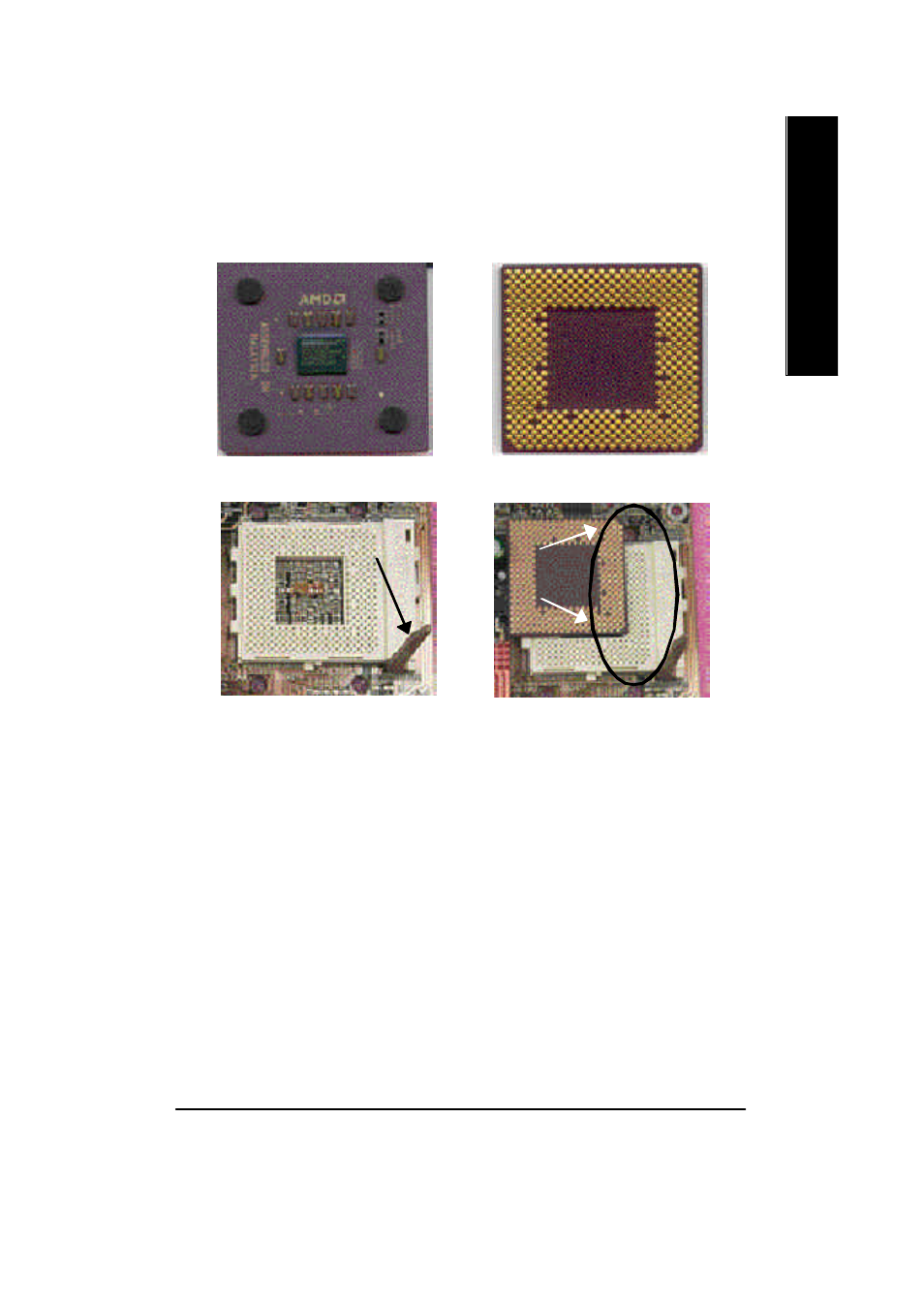

Step1-2: CPU Installation
M If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause
improper installation. Please change the insert orientation.
CPU Top View
CPU Bottom View
1. Pull up the CP U socket lever
and up to 90-degree angle.
2. Locate Pin 1 in the socket and look
for a (golden) cut edge on the CPU
upper corner. Then insert the CPU
into the socket.
M Please make sure the CPU type is supported by the motherboard.
Socket Actuation Lever
Pin1 indicator
