Service Steering & Brakes - 31
SERVICE STEERING & BRAKES

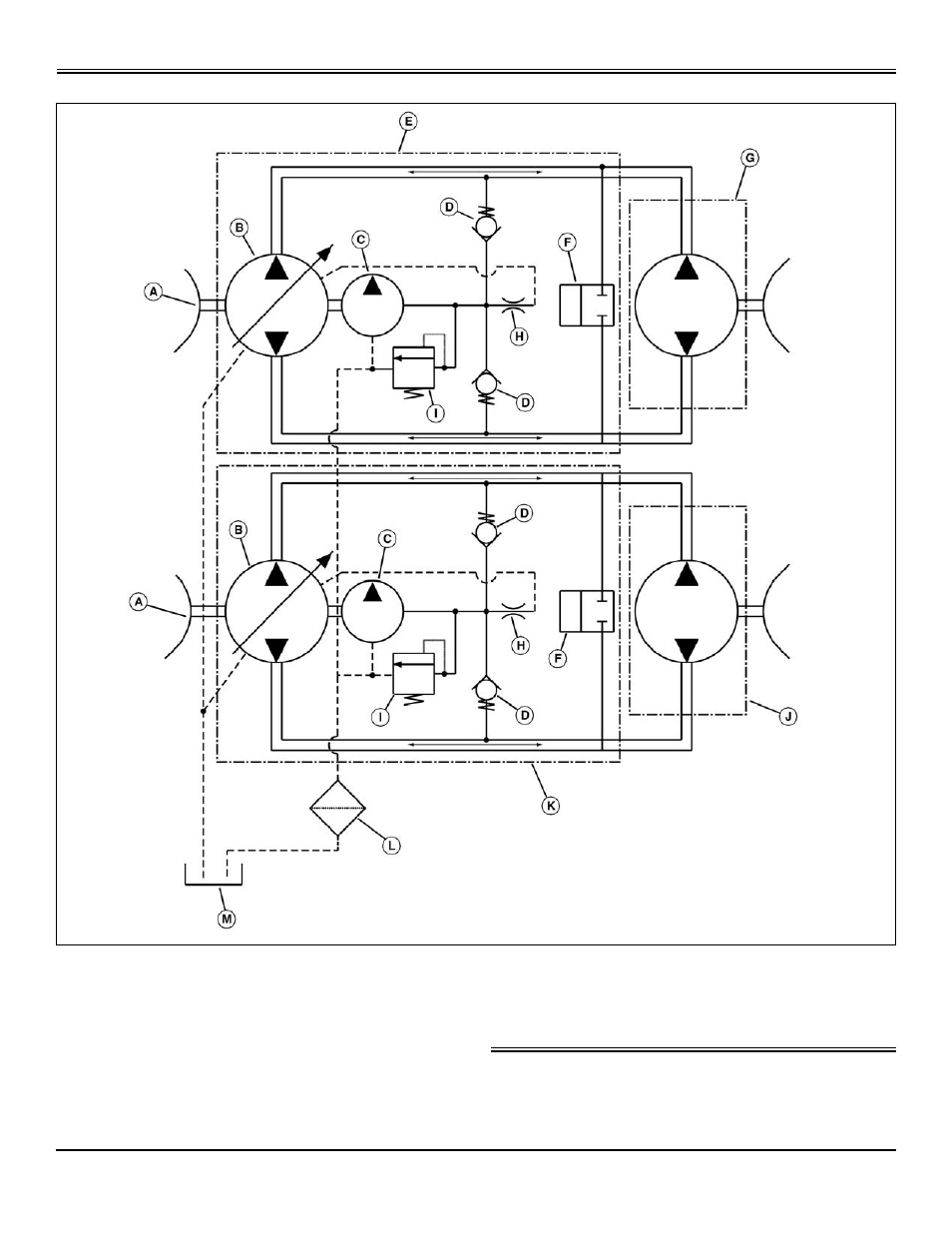

Hydraulic System Schematic
A- Control Input Shaft
B- Pump Block
C- Charge Pump
D- Charge System Check Valve
E- Right Hydraulic Pump
F - Manual Bypass (Free-Wheel) Valve
G- Right Wheel Motor
H- Cooling Orifice
I - Charge Relief Valve
J - Left Wheel Motor
K- Left Hydraulic Pump
L - Oil Filter
M- Hydraulic Reservoir
