SS-PCB50
3
P
RODUCT
S
PECIFICATIONS
UNIT SIZE A - HEIGHT B - SUPPLY AIR C - RETURN AIR
090 36” (914 mm) 12½” (318 mm) 179/16” (446 mm)
120,180 52” (1321 mm) 20¼” (514 mm) 2513/16” (656 mm)

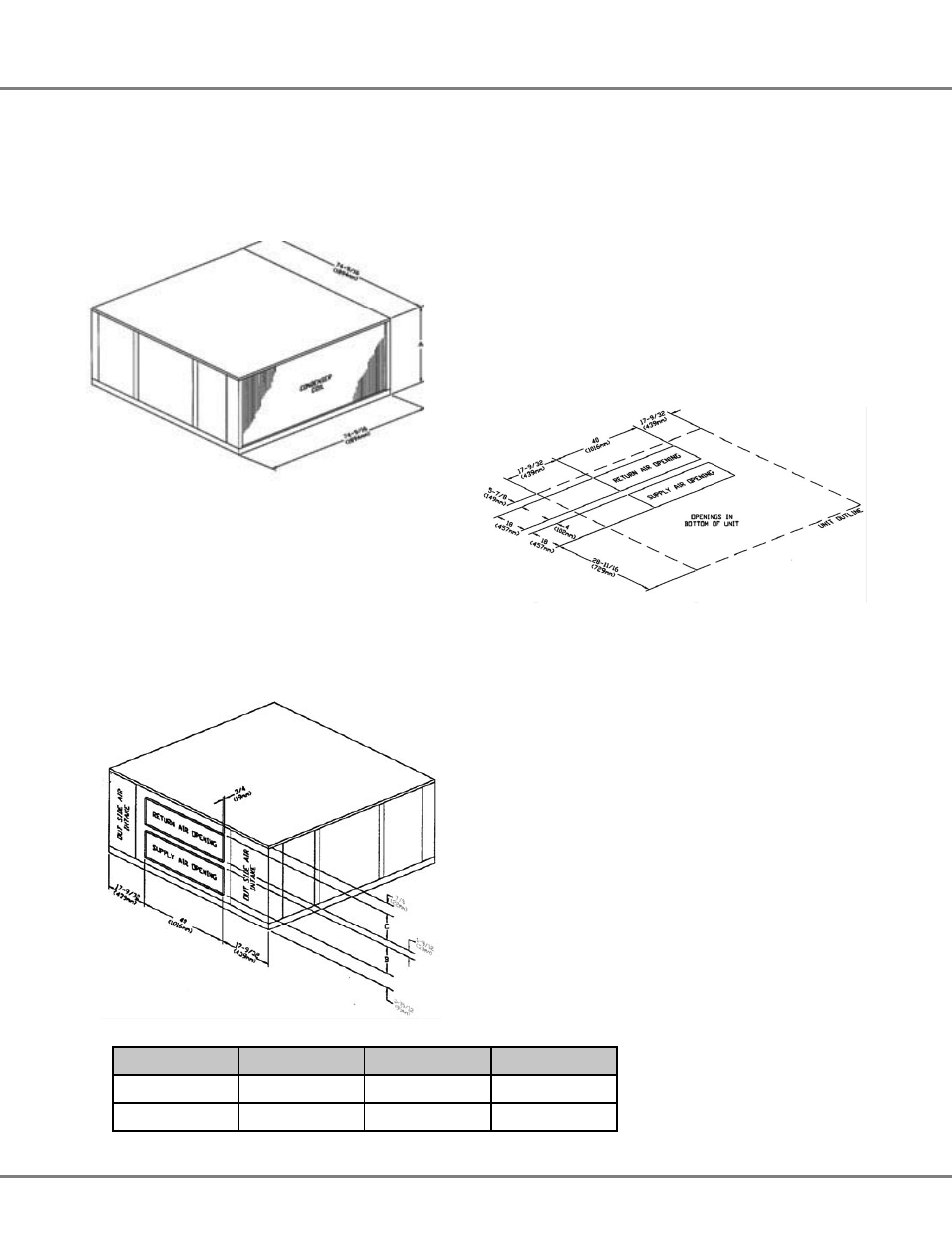

D
IMENSIONS
All dimensions in inches and millimeters. Drawings are not to scale.
Note: The Horizontal Conversion Kit is required to convert
a factory duct confi guration (downfl ow) to a horizontal
duct confi guration, as shown in Figure 2.
F
IGURE
2. H
ORIZONTAL
D
ISCHARGE
F
IGURE
1. V
ERTICAL
D
ISCHARGE
See curb details for connection of duct work to
curb. Duct work is not intended to be connected
to unit.
