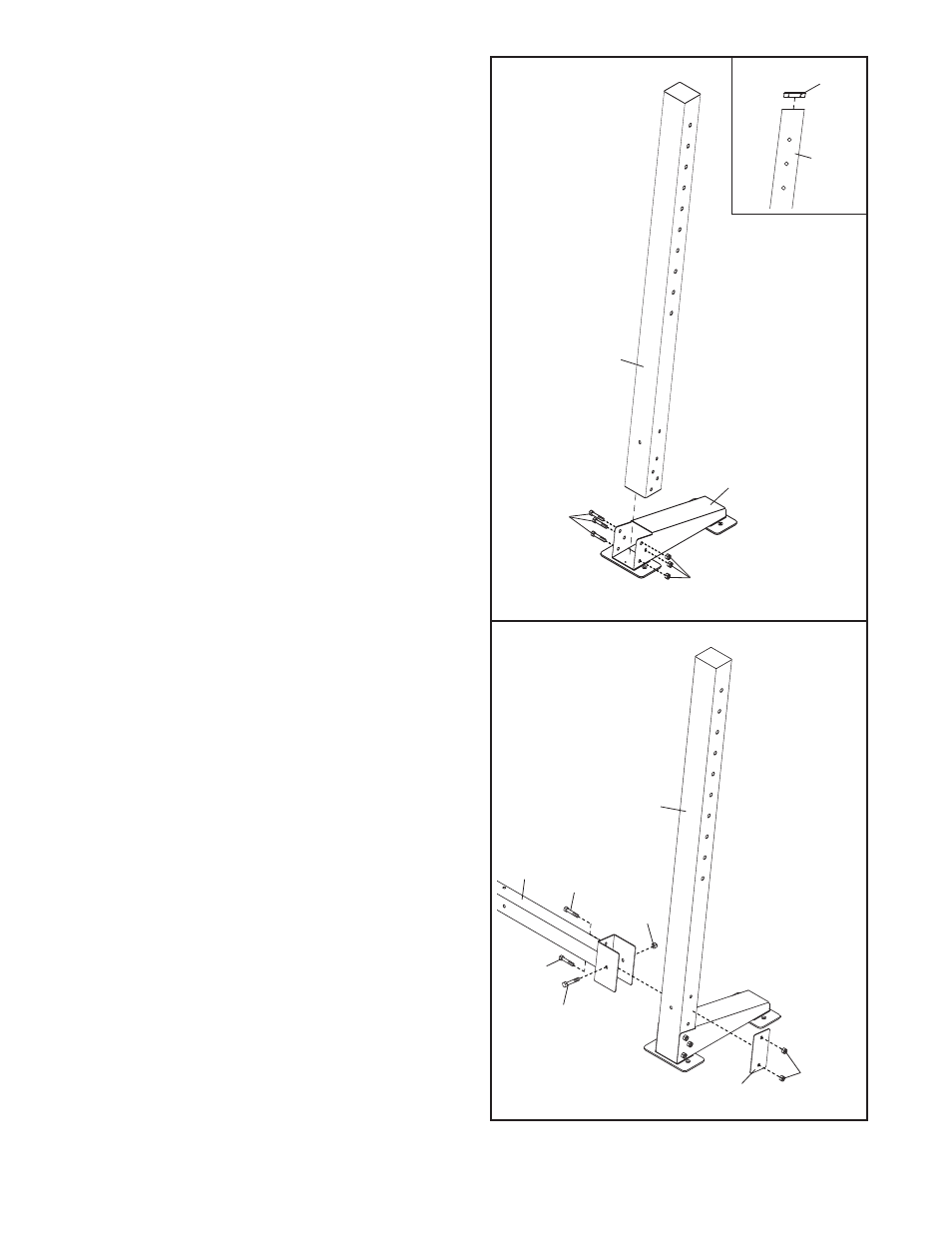

2. Press a 70mm x 100mm Cap (34) into the top of
an Upright (5) as shown in the inset drawing.
Attach the Upright (5) to the Base (1) with three
M10 x 115mm Button Bolts (46) and three M10
Nylon Locknuts (66).
Do not tighten the Nylon
Locknuts yet.
Repeat this step with the other Upright (not
shown) and the Storage Base (not shown).
2
52
27
66
66
46
46
5
4
3. Orient the Center Frame (4) so that the warning
decals are in the positions shown on page 2.
Attach the Center Frame (4) to the indicated
Upright (5) with an M10 x 95mm Button Bolt (52),
two M10 x 115mm Button Bolts (46), a Large
Support Plate (27), and three M10 Nylon
Locknuts (66).
Do not tighten the Nylon
Locknuts yet.
Attach the Center Frame (4) to the other
Upright (not shown) in the same way.
