16
61
8
6
Before beginning assembly, carefully read the fol-
lowing information and instructions:
• To hire an authorized service technician to
assemble the weight bench, call 1-800-445-2480.
• Assembly requires two persons.
• Because of its size, the weight bench should be
assembled in the location where it will be used.
Make sure that there is enough clearance to walk
around the weight bench as you assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
• Assembly requires the included hex key(s)
and the following tools (not included):
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver
Assembly may be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
ASSEMBLY

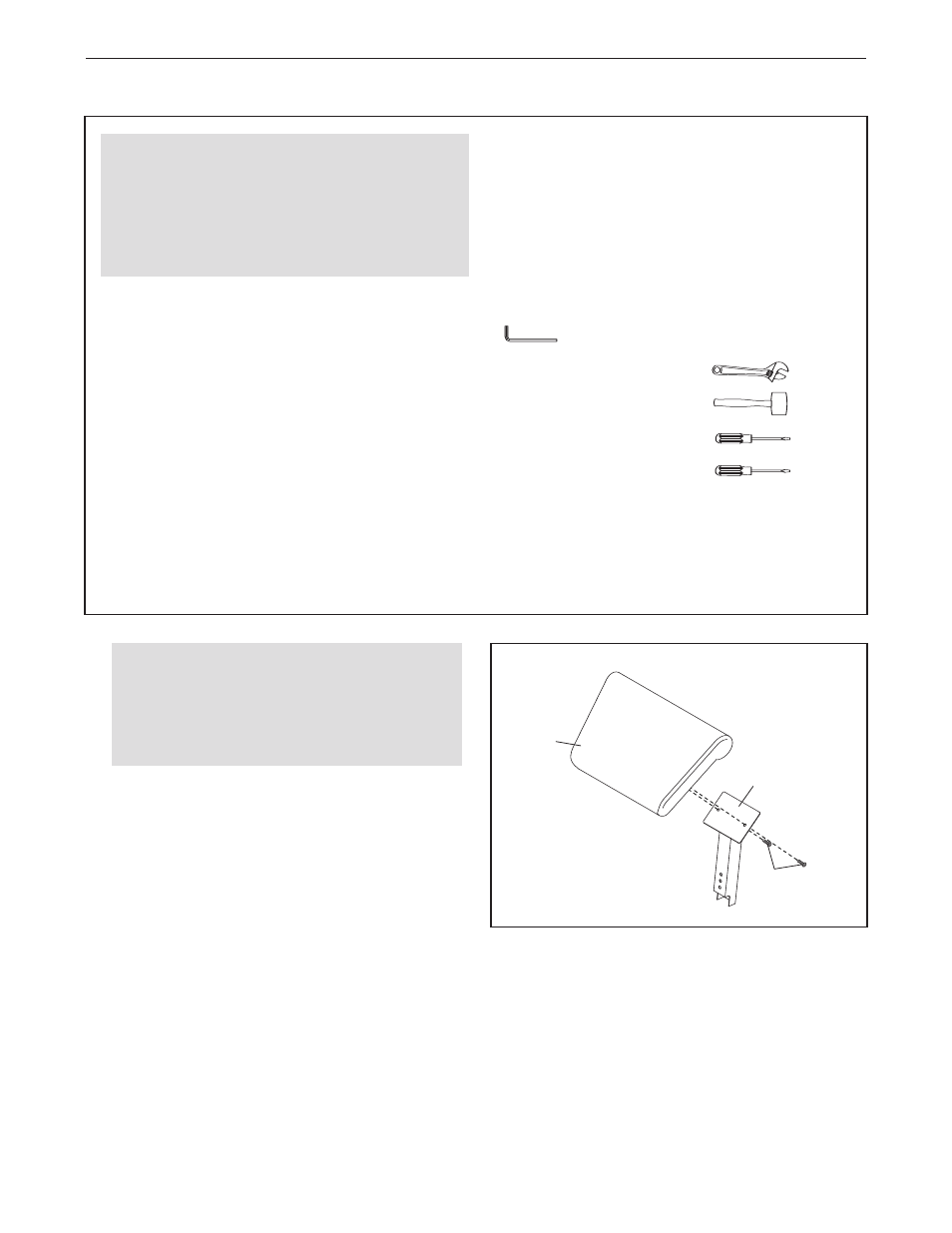

1.
Attach the Curl Pad (16) to the Curl Post (8) with
two M6 x 16mm Screws (61).
1
Before beginning assembly, make sure that
you have read and understand the informa-
tion in the box above. See the PART IDENTI-
FICATION CHART on page 5 for help identi-
fying small parts.
Make Assembly Easier
Everything in this manual is designed to ensure
that the weight bench can be assembled suc-
cessfully by almost anyone. By setting aside
plenty of time, assembly will go smoothly.
