5
M6 Washer (68)
M10 x 95mm Button Bolt (52)
M10 x 80mm Button Bolt (54)
M10 Split Washer (55)
M10 x 90mm Hex Bolt (19)
M6 x 55mm Screw (67)
M10 Washer (64)
M10 x 117mm Button Bolt (46)
M6 x 16mm Screw (61)
M6 x 35mm Screw (56)
M10 x 70mm Button Screw (60)
M10 x 75mm Hex Bolt (57)
M10 x 80mm Hex Bolt (24)
M4 x 16mm Screw (58)
M10 x 70mm Bolt Set (59)
M
1
0
x
1
8
5
m
m
H
e
x
B
o
lt
(6
3
)
M10 Nylon Locknut (66)

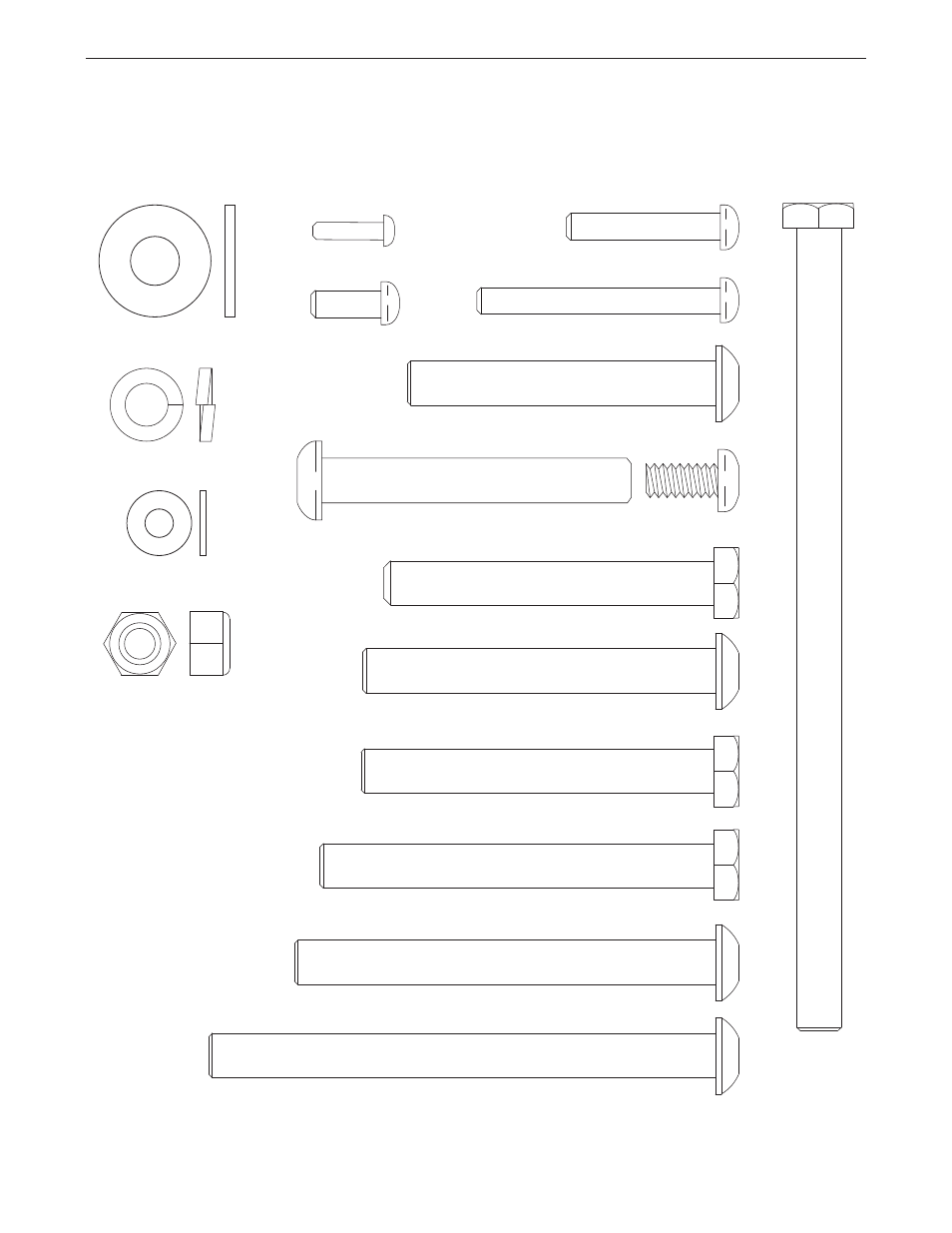

See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART LIST near the end of this manual.
Note: Some small parts may
have been preattached. If a part is not in the parts bag, check to see if it has been preattached.
PART IDENTIFICATION CHART
